Gimbal Camera

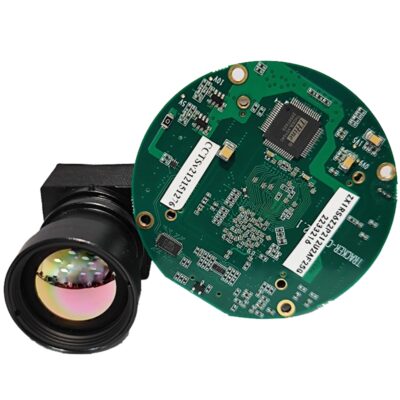

Supporting the input of visible light signal and presenting in PIP, HD LVDS-SDI is an infrared cameras with no mechanical shutters that are superior to most thermal cameras in aspects of contrast, resolution and sensitivity of imaging as well as some other performance indexes.

Imbedded LVDS video input and SDI as well as Ethernet video output, HD LVDS-SDI Infrared Camera, as the camera core, is more than suitable for gimbal and pod systems for un/manned platforms.

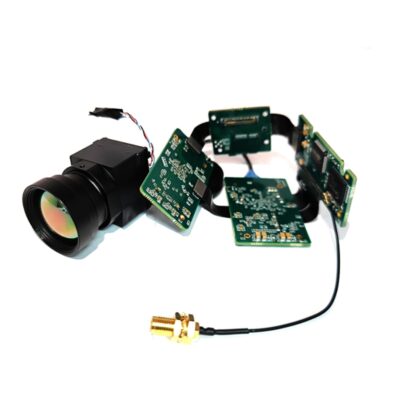

Target tracking function has been incorporated into the information processor of HD LVDS-SDI infrared camera and therefore, make it a highly integral designed product of thermal imaging and visual tracking in a functional level, which can be installed in UAV photoelectric pod for positioning various targets both precisely and quickly.

With great compatibility, SD thermal camera could be used as core for hand-held thermal camera for industrial inspection and as core for gimbal systems of UAVs for a wide variety of applications such as power line inspection, high-end monitoring, forest fire prevention.

In particular, with the target tracking function, the SD thermal camera tracks a moving target while forming live images. 50mK NETD gives the module great performance in temperature sensitivity that makes temperature measurement, as an optional customization, available between -20℃ and 60℃.

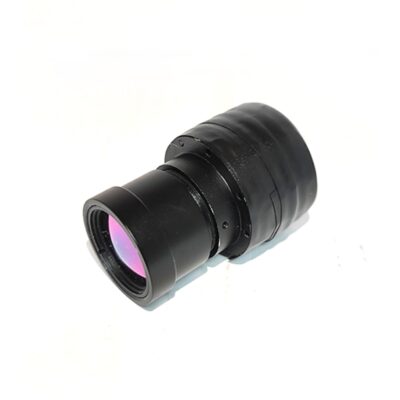

The camera supports customized lens holders with standard optical interfaces that largely eases secondary development for industrial applications such as unmanned aerial vehicles, automation, security & protection monitoring, sighting telescopes etc.

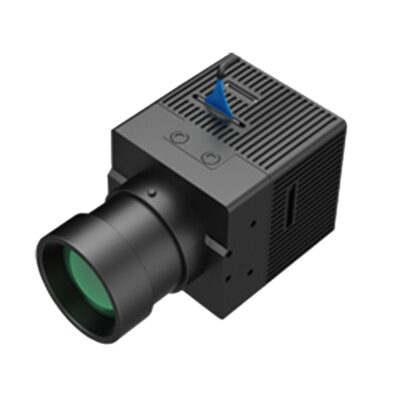

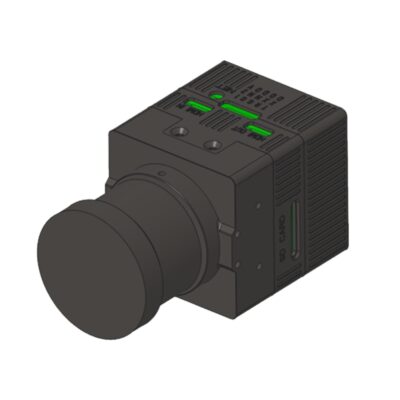

Designed for clients who are concerning about the size and weight of camera systems, the Mini SD Single Imaging Infrared Camera arrives at a size of 30*28*28 mm (without lens) that supports multiple pseudo color displays.

Meanwhile, Mini SD Single Imaging Infrared Camera forms SD thermal images in PAL that fulfill the needs of 24 hours surveillance, riflescope etc.

Moreover, we could customize lens holders with standard optical interfaces according to clients’ requests for their secondary development.  Mini Infrared Camera supports temperature measurement as an optional function, directly showing the highest temperature, lowest temperature and that of center point that could be widely used in applications such as zone monitoring, forest fire prevention, railway inspection, oil & gasoline detection etc.

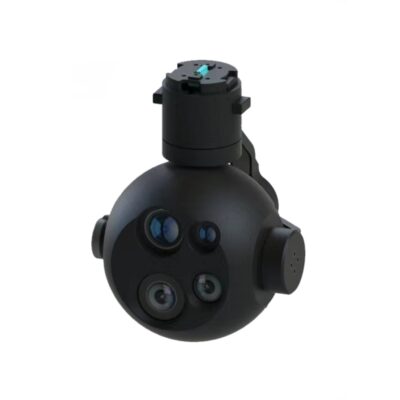

The 10X EO IR three-axis universal joint is equipped with a 10x optical zoom lens. It has fast autofocus speed, 1080p high-definition image quality, and visible light and thermal imaging tracking functions. It has a compact structure, excellent performance, and all parameters are set correctly. You only need to install it on the drone to fly. Adjustable movement speed, suitable for close range remote control and long-distance data transmission control. The mini three axis dual light micro universal joint is an advanced and compact universal joint camera designed specifically for drones. The three axes can enhance the overall stability of the universal joint. With its outstanding features and high-quality performance, this universal joint camera is perfect for professional applications in target tracking and aerial detection.

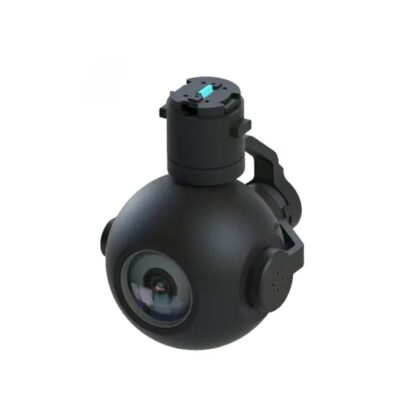

Sky Eye-30HZ is a gimbal designed for 30X zoom camera for drone aerial inspection, surveillance, rescue and research mission, which can be easily installed on most multirotor platforms. It consists of 1080P 30X optical zooming camera and a 3-axis high stabilized gimbal, which is able to take and record 1080P 30fps video to an on board TF card, giving you a stable eye in the sky that can be controlled via drone pilot or a secondary individual allowing for an overhead view that can cover a large amount of ground quickly and effectively.

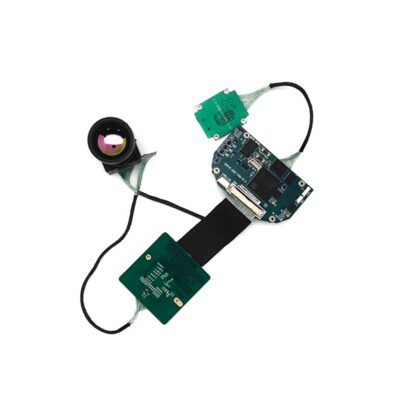

With un-cooled long wave 640*480 detector inside, the SD thermal camera supports SONY 8530 Input and lvds output and moving target tracking with no shutter that secures the tracking performance in consistency without loosing the target.

Small in size, the SD thermal camera could also be used for temperature measurement according to customer’s requirement that makes it suitable for gimbal systems in the application of not only 24 hours monitoring, forest fire prevention but body temperature warning in airport, train station or schools etc.
