Description
Product highlights:

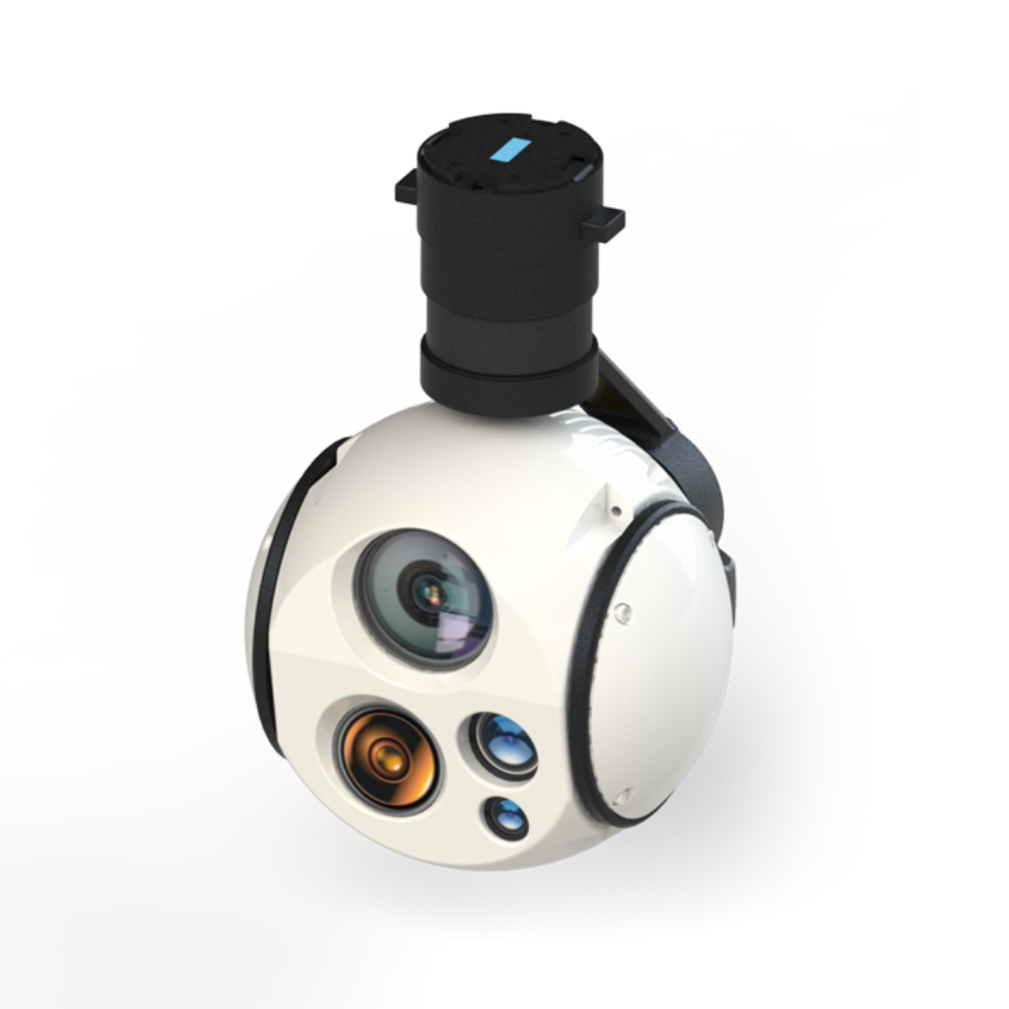

1. Three lights: Equipped with 10x continuous zoom visible light imaging, fixed focus uncooled infrared imaging, and laser ranging functions, this universal joint provides multifunctional imaging options for any working environment.
2. Target tracking: The FIVR-10 pods integrated deep convolutional artificial neural network visual detection and tracking algorithm achieves accurate and efficient target tracking. This ensures the accuracy of tracking, even in high-speed motion.
3. Infrared temperature measurement (optional): With the additional option of infrared temperature measurement, you can collect valuable data in real-time and identify temperature anomalies.
4. Support video storage: This universal joint allows you to store video clips for future analysis and reference. When performing tasks, clear materials can be captured.
5. Suitable for various types of drones: Whether you are using a fixed wing aircraft, a single rotor aircraft, a multi rotor aircraft, or any other aircraft, this universal joint is compatible with various platforms.
Parameters
| MODEL | FIVR-10 | |
| System specification | System type | Gyro stability |
| Weight | 900g | |
| Stable system | Platform type | Tri-axis |
| Azimuth | 360°rotation | |
| pitch | -90°～+30° | |
| Roll | -45°～+45° | |
| Maximum search angular velocity | ≥100°/s | |
| Stability accuracy | 0.1mrad(1°/2HZ) | |
| Angular position accuracy | ≤0.3° | |
| Electro Optical (10X) | Resolution and frame rate | 1920×1080 |
| FOV | 61°×36°～6.7°×3.8° | |
| Focus | f=4.7mm-47mm | |
| Ranging | Laser Ranging | ≥3km（±1m） |
| Infrared camera | Resolution and frame rate | 640*480 |
| Size of pixel | 12μm | |
| FOV | 22.8°×17.2° | |
| LEN | 19mm | |
| Tracking module | Frame rate | 60Hz |
| Tracking speed | ±48 Pixel/frame | |
| System external interface | Control | RS232、NET |
| Video output | NET | |
| Power supply | Power | 12～28V |
| Power consumption | Av≤15W，Max≤30W | |
| Environmental conditions | Operating temperature | -10℃～+50℃ |
| Storage temperature | -40℃～+60℃ |

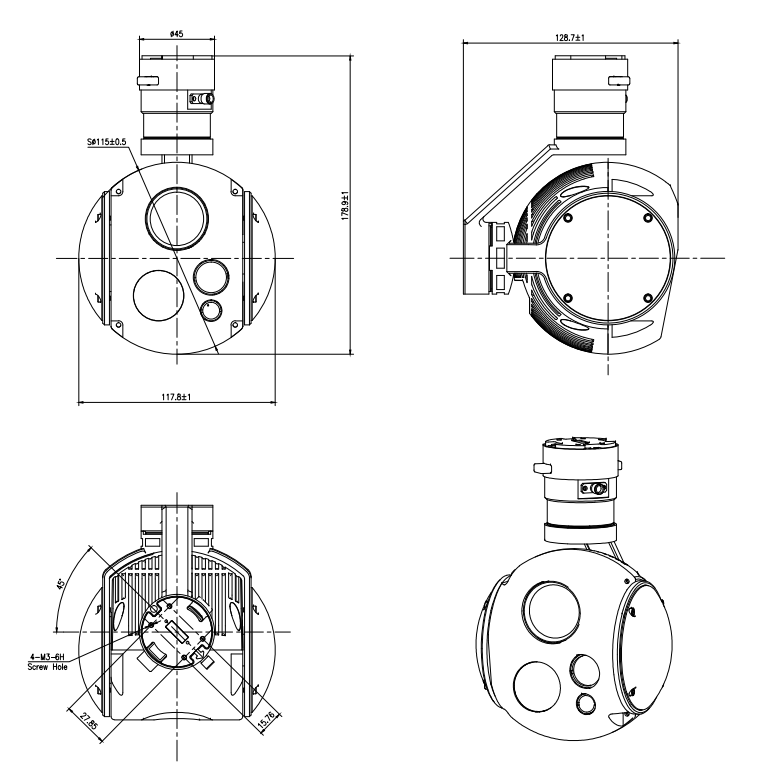

Dimensions
How it works:
Install the 10X EO laser gimbal on your preferred aircraft platform. Connect the universal joint to the aircraft’s power and video transmission system. Configure the universal joint settings according to your testing needs. Activate target tracking mode to start detecting and tracking moving objects. Use zoom and imaging functions to capture detailed visual effects of the target. Store video clips for future analysis or reference.
Frequently asked questions:
Q: Is this universal energy-saving used on fixed wing aircraft?
A: Yes, this type of universal joint is suitable for fixed wing aircraft, single rotor aircraft, multi rotor aircraft, and various other aircraft platforms.
Q: Does it include infrared temperature measurement function?
A: The infrared temperature measurement function is optional, allowing you to customize the universal joint according to your own requirements.
Q: How much stability does this universal energy-saving provide?
A: The universal joint adopts mechanical stability enhancement technology, providing high stability and accuracy, with an enhanced accuracy of ± 0.02 °.
