Description

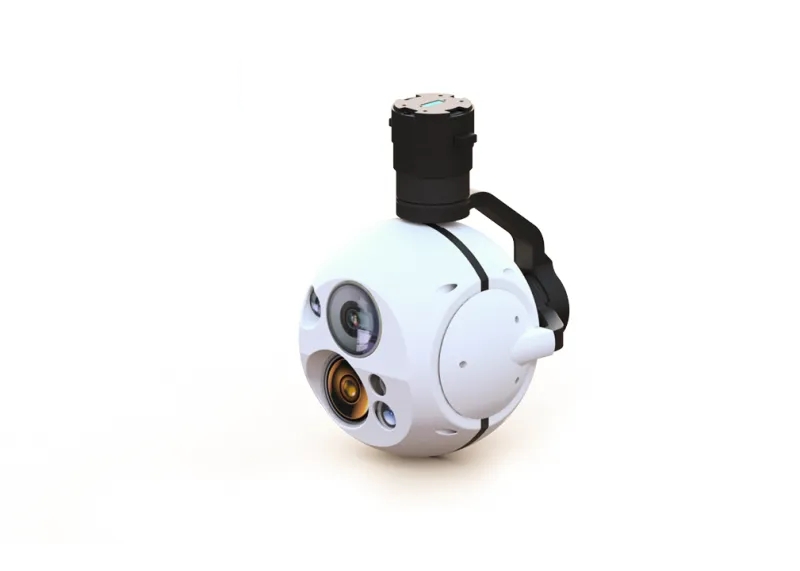

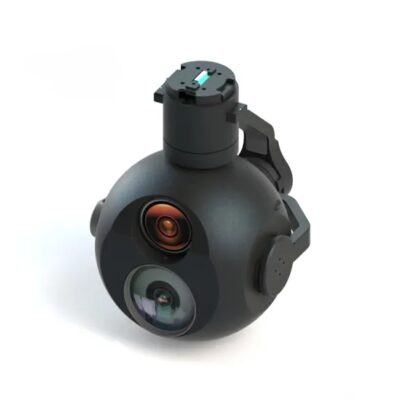

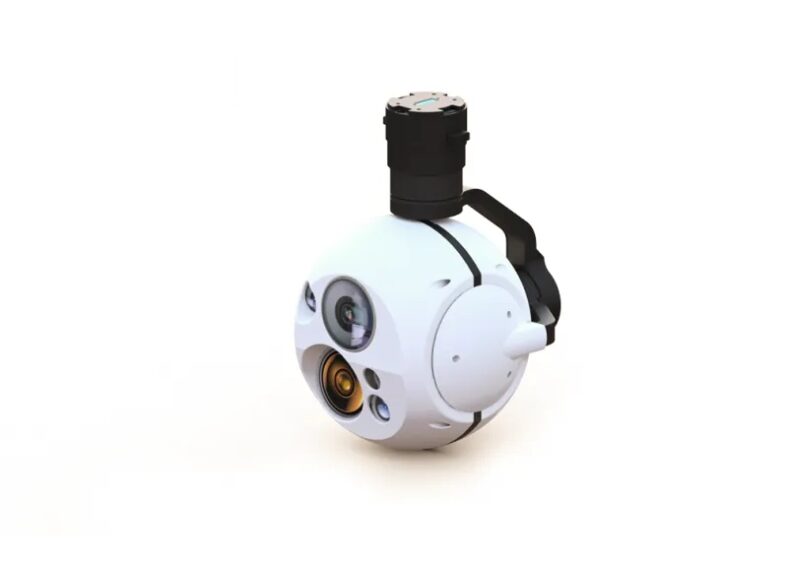

F2IVR-30 has high data transmission capability and provides accurate target positioning function. Using advanced image processing technology, the gimbal continuously searches and tracks people/vehicles from a long distance.
F2IVR-30 integrates high-resolution of EO sensor, uncooled IR camera and laser range finder that endows it with extremely strong target detection/ recognition capability in day and night. All sensors are built on one processing platform, which makes the system more miniaturized and lightweight.
Supplemented by high-precision electronic image stabilization technology at tri-axis tri-frame structure, F2IVR-30 has brought unparalleled imaging experience to industry users. At the same time, it supports full angle (360 degree) rotation, and can be carried on fixed wing, single rotor, multi rotor and other aircraft, which is suitable for fire rescue, police law enforcement, forest fire prevention, power inspection and other fields.
Product highlights:
1.30 times continuous optical zoom: The drone pod is equipped with a high-performance optical lens that can achieve 30 times continuous seamless optical zoom, providing detailed and close-up views of the target.
2. High precision laser ranging: With its high-precision laser ranging technology, this drone pod provides accurate target positioning, ensuring the accuracy of positioning in various environments.
3. Human vehicle recognition: F2IVR-30 is equipped with additional human vehicle recognition function, further enhancing its ability in vehicle tracking.
4. 360 ° infinite cycle rotation: The three-axis universal joint allows for 360 ° full rotation, achieving complete coverage of the surrounding environment without any blind spots.
5. Small and lightweight: Despite its advanced features, this drone pod is small in size, light in weight, low in power consumption, and highly portable and efficient.
Parameters
| MODEL | F2IVR-30 | |
| System specification | System type | Gyro stability |
| Weight | 1050g | |
| Stable system | Platform type | Tri-axis |
| Azimuth | 360°rotation | |
| pitch | -100°～+100° | |
| Maximum search angular velocity | ≥100°/s | |
| Stability accuracy | 0.1mrad(1°/2HZ) | |
| Angular position accuracy | ≤0.3° | |
| Visible light camera 1 | Resolution and frame rate | SONY7520
1920×1080 @60fps |
| FOV | 63°×35°～2.3°×1.3° | |
| Visible light camera 2 | Resolution and frame rate | 1920×1080 @60fps |
| FOV | 38.4°×22.2°(8mm prime lens) | |
| Infrared camera | Resolution and frame rate | 640×480@60fps |
| SMALL FOV | 12.5°×9.4°（35mm prime lens） | |
| Ranging | Laser Ranging | Range≥3km;
Accuracy±1m |
| Tracking module | Frame rate | 60Hz |
| Tracking speed | ±48 Pixel/frame | |
| System external interface | Control | RS232、NET |
| Video output | NET、SDI | |
| Power supply | Power | 12～28V |
| Power consumption | Av≤15W，Max≤30W | |
| Environmental conditions | Operating temperature | -10℃～+50℃ |
| Storage temperature | -40℃～+60℃ |
Dimensions
How it works:
F2IVR-30 utilizes advanced image processing technology to continuously search and track long-distance personnel/vehicles. The integration of high-resolution photoelectric sensors, uncooled infrared cameras, and laser rangefinders ensures strong target detection and recognition capabilities under day and night conditions. Its compact and lightweight design, coupled with a three axis three frame structure and high-precision electronic image stabilization technology, provides unparalleled imaging experience for industry users.
Frequently asked questions:
Q: Can this drone pod be installed on any type of aircraft?
A: Yes, the F2IVR-30 can be mounted on fixed wing, single rotor, multi rotor, and other aircraft, providing versatility for various applications.
Q: Is laser ranging technology accurate?
A: Of course! The high-precision laser ranging technology used in the drone pod ensures precise target positioning and unparalleled results.
Q: Which industries can benefit from using this drone pod?
A: This drone pod is very suitable for fire rescue, forest fire prevention, power inspection, and any other field that requires advanced target tracking and monitoring capabilities.
