Description

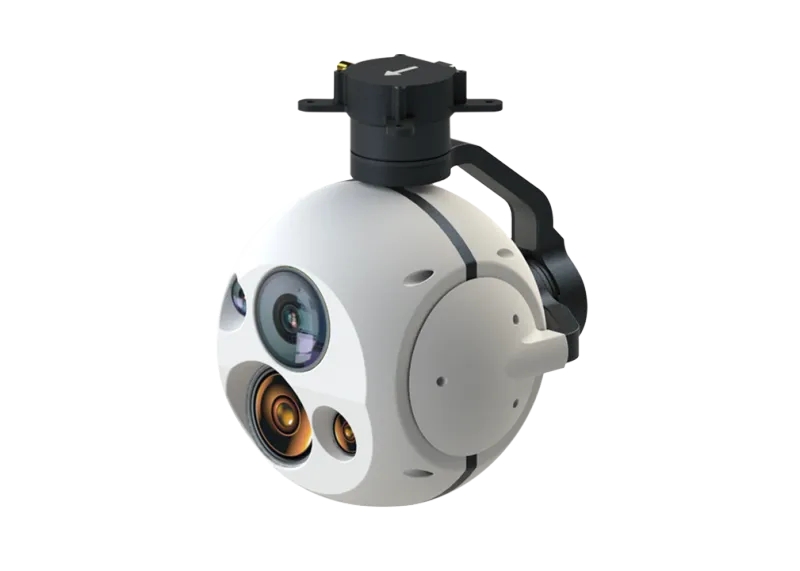

The 30 times zoom dual infrared light drone Gimbal is a special device that features advanced functionality and cutting-edge technology, making it perfect for professional applications that require high-quality imaging and precise tracking. This universal joint integrates deep convolutional neural network visual detection and tracking algorithms and advanced drive control algorithms, using mechanical stability technology, with a stability accuracy of ± 0.01 °. It can quickly detect and track moving targets, with good tracking performance and stable tracking ability.
Product highlights:
1. Integrated design: The universal joint adopts an integrated design, which can be quickly disassembled and easily installed. Its modular structure is easy to maintain and upgrade, saving you time and effort.
2.30x continuous optical zoom: This universal joint has a 30x optical zoom function, providing unparalleled clarity. Capturing clear visual effects from afar makes it an ideal choice for aerial missions.
3. High precision laser ranging: This universal joint is equipped with high-precision laser ranging function to ensure accurate target positioning. Having accuracy while tracking objects, providing accurate and valuable information.
4. AI pedestrian and vehicle recognition: With the function of AI pedestrian and vehicle recognition, a layer of accuracy has been added. This function allows for universal joint detection and recognition, which helps with safety applications in various fields.
5. 360 ° infinite cycle rotation: The universal joint provides 360 ° infinite cycle rotation and can seamlessly track moving targets in any direction.
6. Small size, light weight, and low power consumption: The universal joint is still compact and lightweight, ensuring minimal impact on drone performance during operation. With low power consumption, it can maximize the flight time of drones.
Parameters
| MODEL | F2I2V-30 | |
| System specification | System type | Gyro stability |
| Weight | 1020g | |
| Stable system | Platform type | Tri-axis |
| Azimuth | 360°rotation | |
| pitch | -100°～+100° | |
| Maximum search angular velocity | ≥100°/s | |
| Stability accuracy | 0.1mrad(1°/2HZ) | |
| Angular position accuracy | ≤0.3° | |
| Visible light camera 1 | Resolution and frame rate | SONY7520
1920×1080 @60fps |
| FOV | 63°×35°～2.3°×1.3° | |
| Visible light camera 2 | Resolution and frame rate | 1920×1080 @60fps |
| FOV | 38.4°×22.2°(8mm prime lens) | |
| Infrared camera | Resolution and frame rate | 640×480@60fps |
| SMALL FOV | 12.5°×9.4°（35mm prime lens） | |
| BIG FOV | 31.7°×24°(13.5mm prime lens) | |
| Tracking module | Frame rate | 60Hz |
| Tracking speed | ±48 Pixel/frame | |
| System external interface | Control | RS232、NET |
| Video output | NET、SDI | |
| Power supply | Power | 12～28V |
| Power consumption | Av≤15W，Max≤30W | |
| Environmental conditions | Operating temperature | -10℃～+50℃ |
| Storage temperature | -40℃～+60℃ |
Dimensions
How it works:
This universal joint adopts advanced technology, including deep convolutional neural network visual detection and tracking algorithms, as well as advanced drive control algorithms. The combination of universal joint and mechanical stability technology ensures precise and stable tracking ability. It can quickly detect and track moving targets, providing excellent performance even under challenging conditions. Simply connect the universal joint to the drone to fully utilize its integrated design. Due to its fast disassembly structure, installation is simple and easy.
Frequently asked questions:
Q: Can this universal joint be used with any drone?
A: This universal joint is compatible with most drone models. However, before purchasing, it is always recommended that you check compatibility with specific drones.
Q: What is the range of laser ranging capability?
A: The laser ranging function of this universal joint can provide precise positioning over a wide range of distances.
Q: How does the artificial intelligence human vehicle recognition function work?
A: The artificial intelligence human vehicle recognition function utilizes powerful algorithms to detect and classify people and vehicles. It is helpful in various application fields.
