Description
Introduction

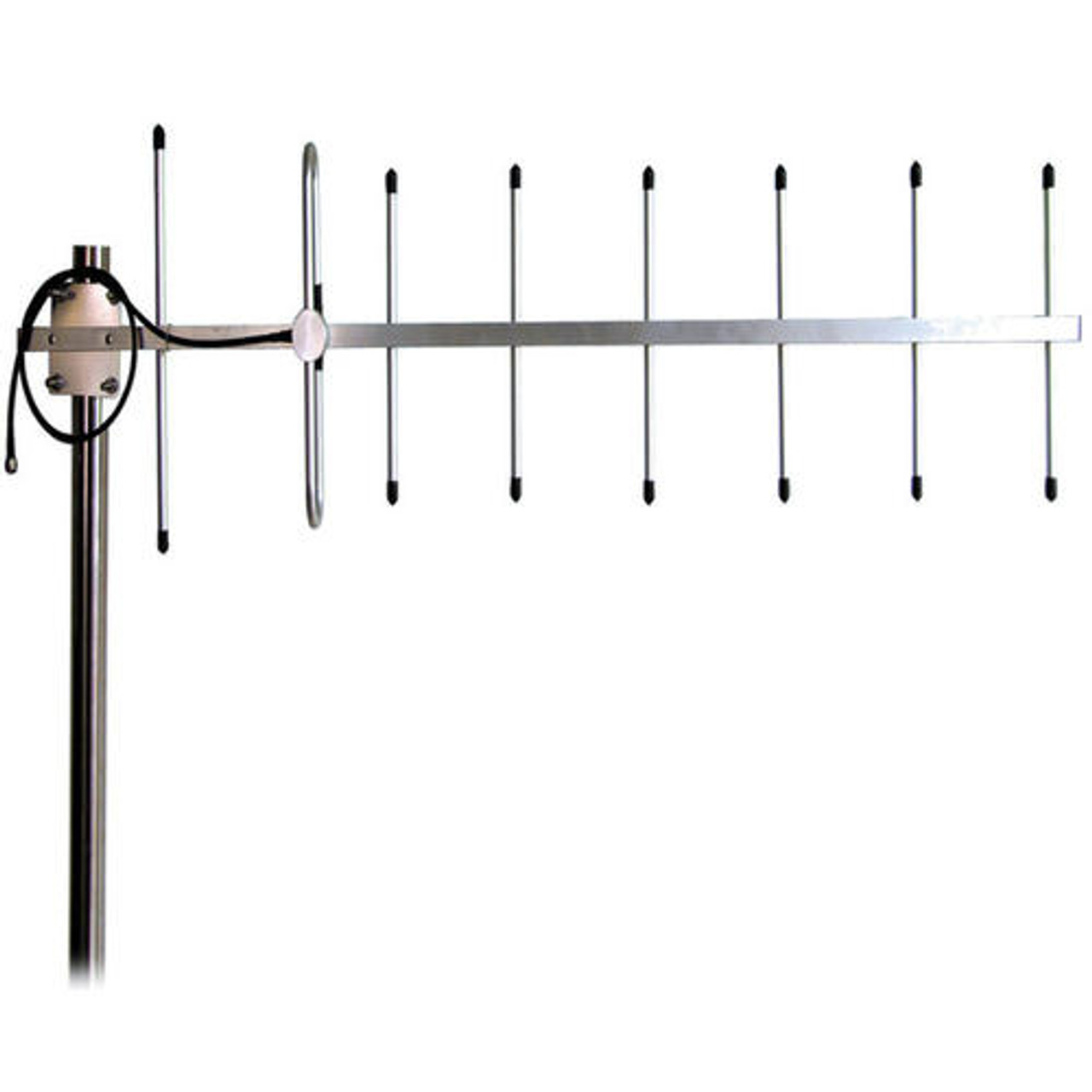

This high-gain Yagi directional antenna is designed for long range data communication for industrial drones. Equipped with an auto antenna tracker(AAT), it can realize ultra-long communication range.
Specification
| Electronical feature | |
| Frequency range | 1400MHz |
| Gain | 12 dBi |
| VSWR | ≤1.5 |
| Polarization | Vertical or Horizontal |
| Horizontal Beamwidth | 48° |
| Vertical Beamwidth | 40° |
| Front to back ratio | ≥15dB |
| Imput impedance | 50Ω |
| Max input power | 100W |
| Mechanical feature | |
| Antenna weight | 0.5kg |
| Working temperature | -40~+55° |
