Description
Introduction

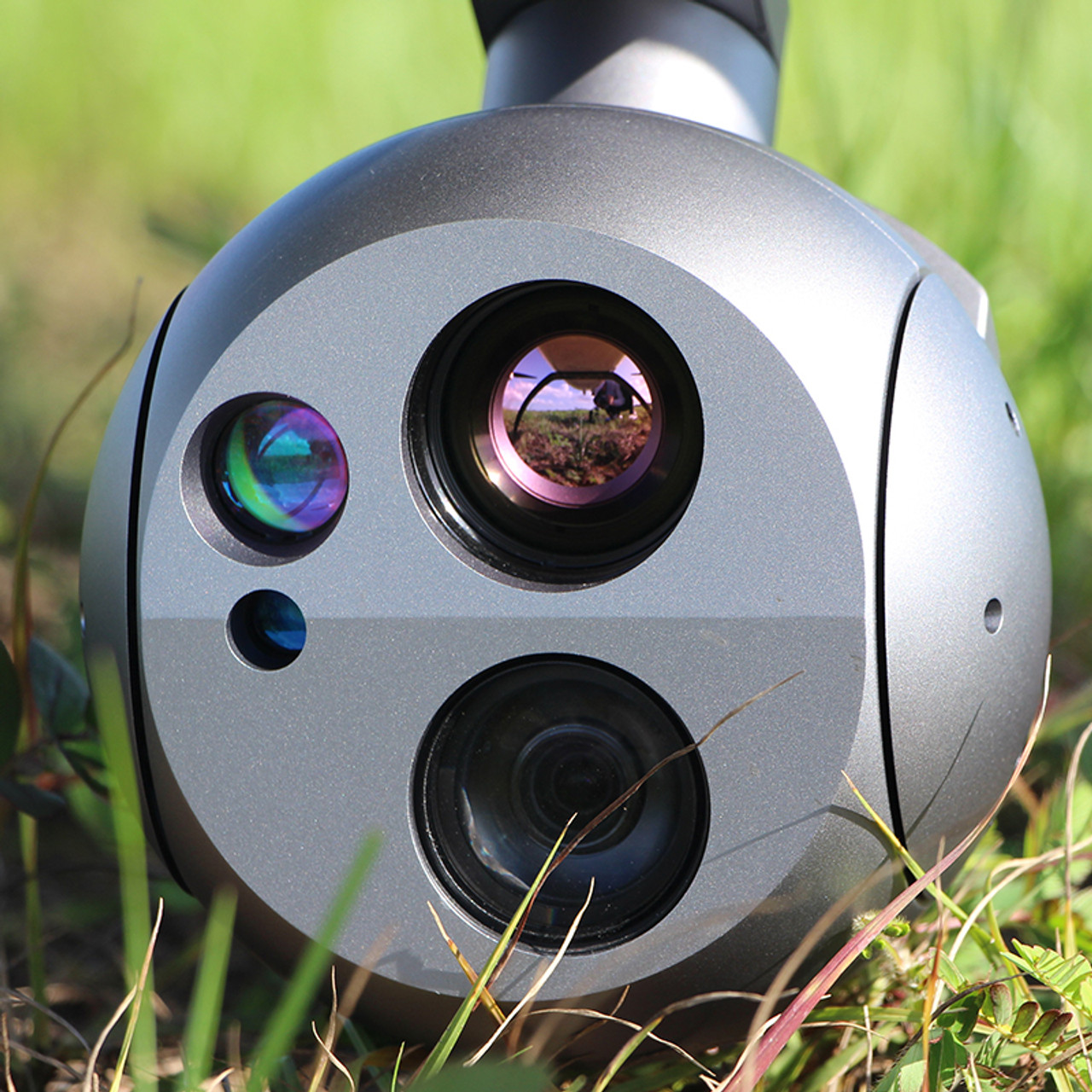

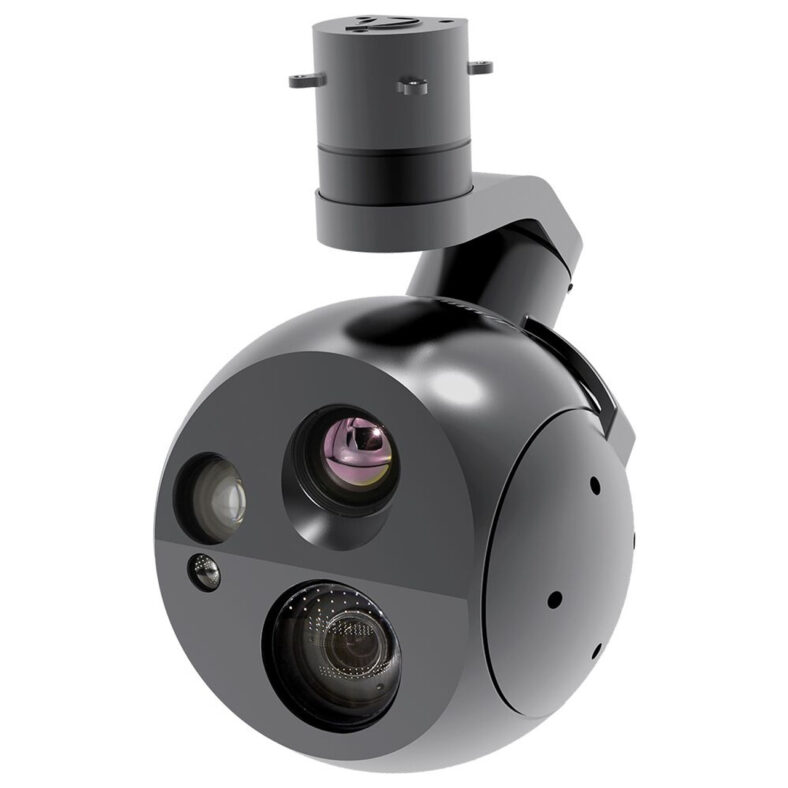

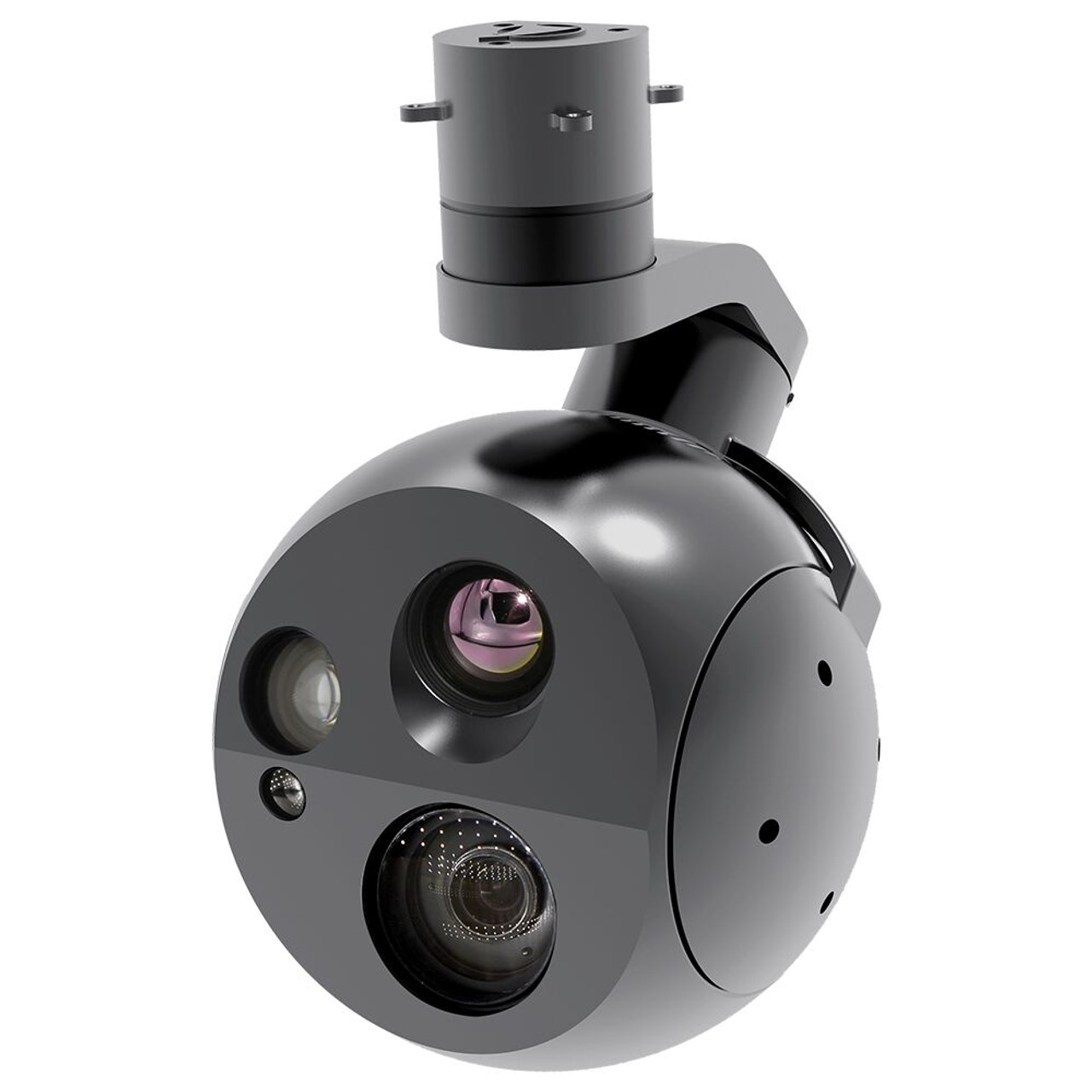

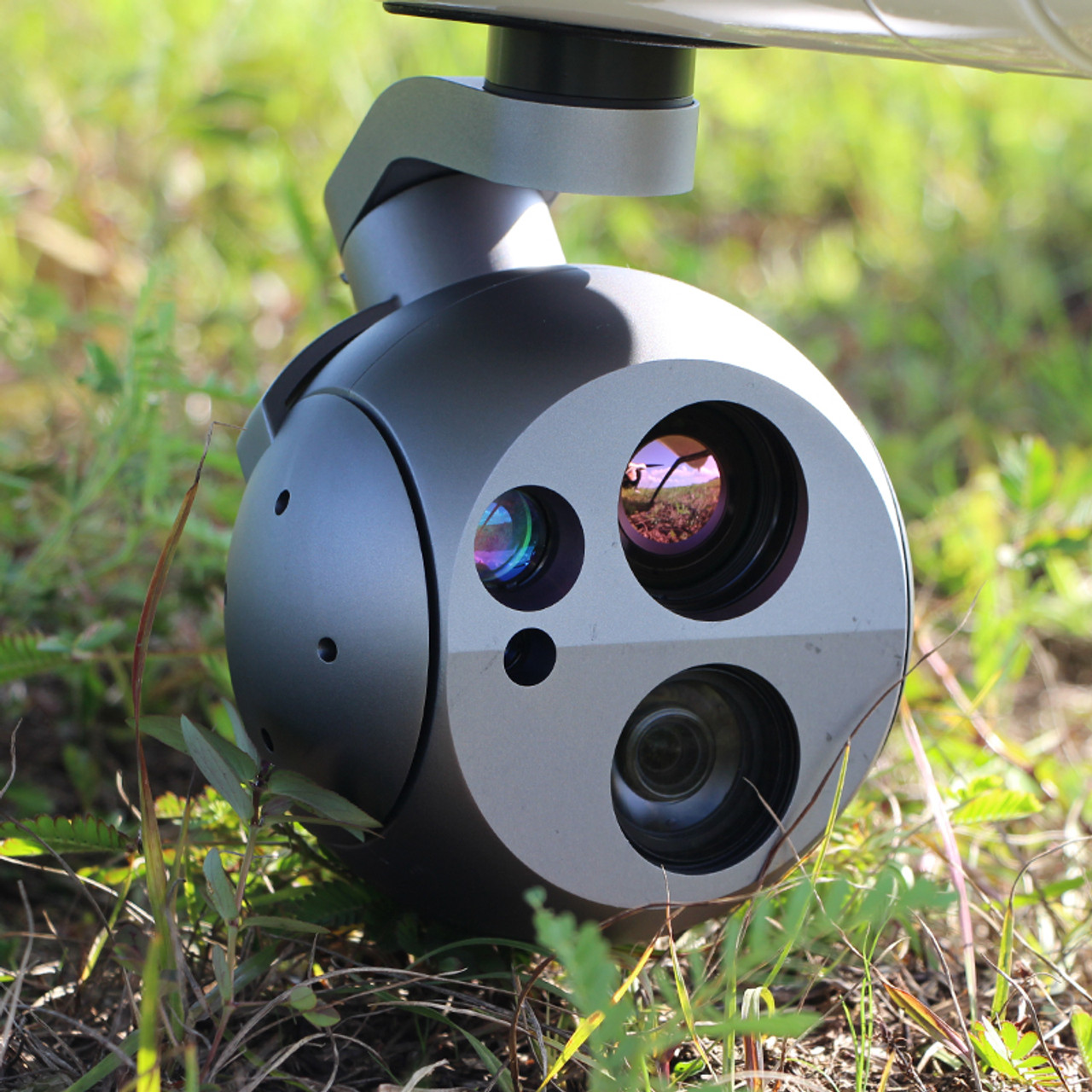

Eagle Eye-30IE-M is a robust 3-axis gimbal that integrates a 30x optical zoom camera, a 640×480 thermal camera, and a 3000 meters laser rangefinder. The high-performance 3-axis gimbal is developed based on FOC (field-oriented control) technology, giving you crystal-clear video footage. The 30x zoom camera provides 1080P 30fps full HD video streaming and up to zoom 360x capability, which enables you to see every detail you need in the air, even if you are far away from the target. At the same time, the thermal camera allows you to detect targets at night or in low visibility conditions. It provides priceless information when carrying out missions like inspecting or object monitoring. The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, and this information will display on the screen automatically.
Specification
| Gimbal system | |
| Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet |
| Video recorded | 1080P/720P 30fps MP4 |
| Photo | JPG(1920*1080) |
| Rotate range | Pitch: ±90° Roll: ±45° Yaw: Unlimited |
| Angle amount of jitter | Pitch and roll: ±0.02° Yaw: ±0.02° |
| Control interface | S.Bus, UART and Ethernet |
| Working Current | Static current: 1.0A(@12V) Dynamic current: 3.3A(@12V) |
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Mechanical feature | |
| Total weight (gimbal and camera) | 1,216g |
| Working temperature | -25° ~ +60° |
| 30x zoom camera | |
| Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Focal length | 30x optical focal zoom, 4.3-129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| FOV | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) | |
| Sync system | Internal |
| S/N ratio | More than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| White balance | Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Thermal imager | |
| Lens | 35mm |
| Working system | Un-cooled long wave (8μm～14μm) |
| Detector pixels | 640×480 |
| Pixel size | 17μm |
| Focusing | Athermalizing |
| FOV | Horizontal: 17.7° |
| Vertical: 13.3° | |
| Diagonal: 22.0° | |
| Detective Distance (Man: 1.8×0.5m) | 1029 meters |
| Recognize Distance (Man: 1.8×0.5m) | 257 meters |
| Verified Distance (Man: 1.8×0.5m) | 129 meters |
| Detective Distance (Car: 4.2×1.8m) | 3157 meters |
| Recognize Distance (Car: 4.2×1.8m) | 789 meters |
| Verified Distance (Car: 4.2×1.8m) | 395 meters |
| Emissivity correction | Emissivity 0.01~1 adjustable |
| NETD | ≤50mK(@25℃) |
| MRTD | ≤650mK(@Characteristic frequency） |
| Image enhancement | Automatically adjusts image brightness and contrast |
| Color palette | White hot, black hot, pseudo color |
| Automatic non-uniformity | Yes(with or without shutter) |
| correctionfunction | |
| Digital zoom | 1x, 2x, 3x, and 4x |
| Time synchronization function | Yes |
| 3000m laser range-finder | |
| Measuring distance (Visibility no less than 5km, diffuse reflectance over 0.3, humidity less than 80%) |
Over 3000m (car: 2.3m×2.3m) |
| Over 1500m (human: 1.75m×0.75m) | |
| Over 5000m (building) | |
| Laser wavelength | 1535nm ± 5nm |
| Laser divergence angle | Less than0.5mrad |
| Continuous measuring frequency | 1~10Hz adjustable |
| Ranging accuracy | No more than ±2m (RMS) |
| Accuracy rate | Over 98% |
| Minimum range | No more than 20m |
| Ranging resolution | No more than 30m (multiple targets) |
| Operating temperature | -40℃ ~ +65℃ |
| Storage temperature | -55℃ ~ +70℃ |
High-performance 3-axis gimbal with 360-degree rotation
Powered by a dedicated sensor, the high-performance 3-axis drone gimbal has a control accuracy of ±0.02°, giving you crystal clear video footage.
Powerful zoom capability
30x optical zoom, 12x digital zoom, 1080P 30fps video streaming.
High-resolution thermal imager
640*480 resolution, 25Hz frequency, 3 color palettes, 4x digital zoom.
Target GPS coordinate
The advanced location calculating algorithm is used to calculate the target’s distance within 3000 meters and accurately analyze the longitude and latitude of the target. This feature is essential for drone patrol and inspection: suspicious target coordinates can be easily obtained and shared with the supervisor. Also, the drone can keep watching the target based on the coordinates.
Auto object tracking
Based on cross-correlation, tracking and object miss recapturing algorithm, Eagle Eye-30IE-M 30x EO/IR triple sensor zoom camera can realize continuously stable object tracking on both daylight zoom camera and the thermal imager.
Auto object tracking
Based on cross-correlation, tracking and object miss recapturing algorithm, Eagle Eye-30IE-M 30x EO/IR triple sensor zoom camera can realize continuously stable object tracking on both daylight zoom camera and the thermal imager.
Clean wiring
The 30x daylight and thermal camera have only one cable for the data and video transmission, making your internal wiring simple and clean.
MAVLINK compatible
Eagle Eye-30IE-M drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration relatively convenient.
Dimension
