Description
Product highlights:

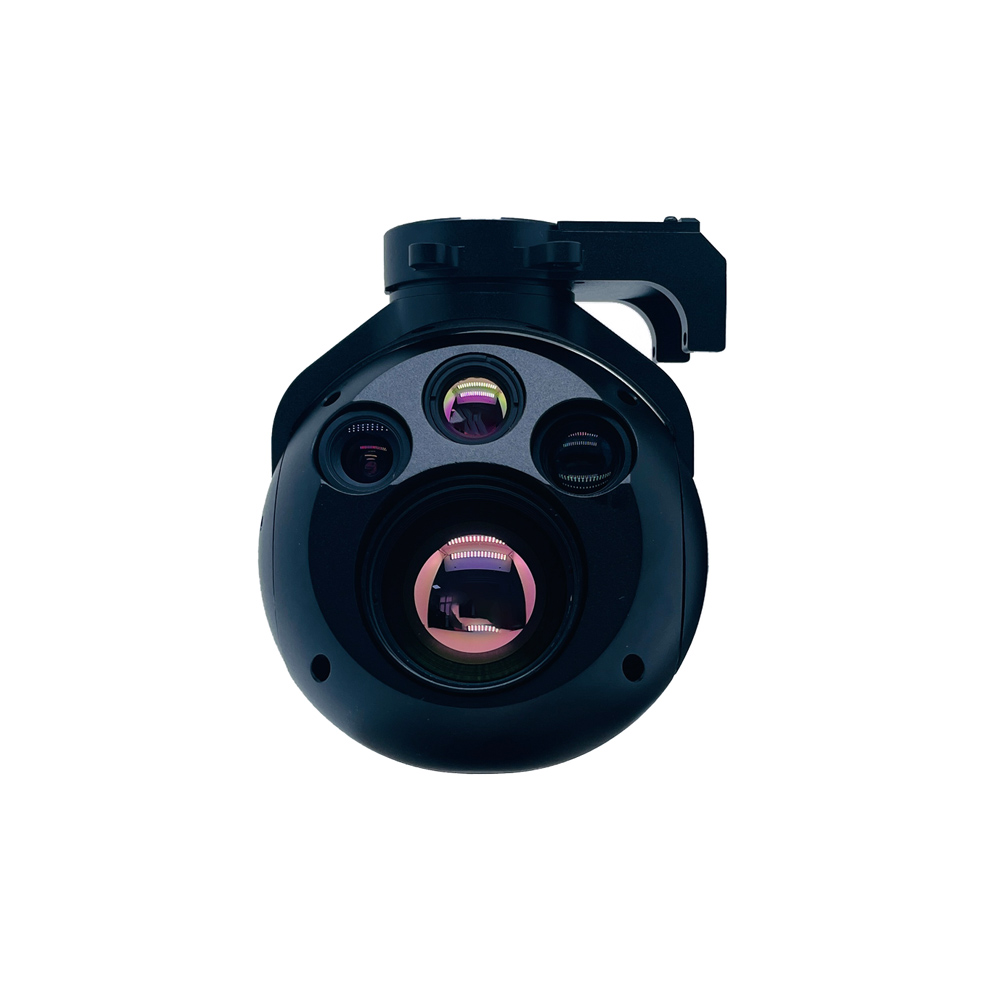

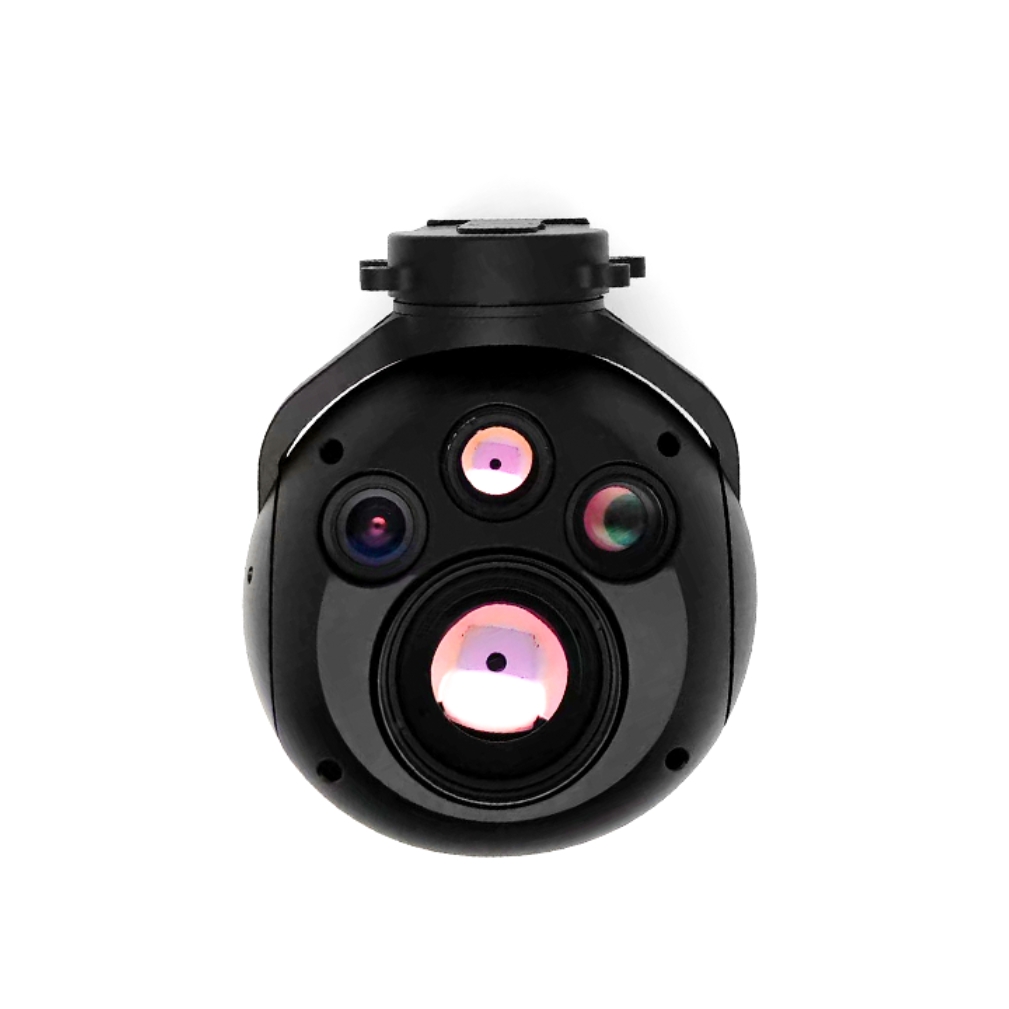

1.Dual infrared camera: The system is equipped with a forward looking infrared camera and a visible light camera to enhance visibility and accurately track targets.
2.Side view camera: The dual infrared micro universal joint also includes a side view camera to ensure full coverage of the surrounding environment when hovering around the target.
3.All weather tracking: This universal joint is designed to perform perfectly under any weather conditions, allowing for continuous operation even in challenging environments.
4.Powerful tracking module: The included tracking module ensures accurate tracking of targets.
5.Drone payload: This universal joint is designed specifically for drones, with light weight and compact structure, making it an ideal payload for executing aerial missions.
Parameters
| MODEL | S2I2V-01 | S2I2V-02 | S2I2V-03 | |
| System specification | System type | Gyro stability | ||
| Weight | 550g | 650g | ||
| Stable system | Platform type | Two axle | Tri axis | |
| Azimuth | -110°～+110° | N×360° | ||
| pitch | -100°～+30° | |||
| Maximum search angular velocity | ≥100°/s | |||
| Stability accuracy | 0.1mrad(1°/2HZ) | |||
| Angular position accuracy | ≤0.3° | |||
| Visible light camera | Resolution and frame rate | 1920×1080 @60fps | ||
| BIG FOV | 42°×24.5°(7.2mm) | |||
| SMALL FOV | 12.7°×7.1°(25mm) | |||
| Infrared camera | Resolution and frame rate | 640×512@60fps | ||
| BIG FOV | 31.7°×25.6°(13.5mm prime lens) | |||
| SMALL FOV | 12.5°×10°(35mm prime lens） | |||
| Ranging | Laser Ranging | Range≥3km;
Accuracy±1m |
||
| Tracking module | Frame rate | 60Hz | ||
| Tracking speed | ±48 Pixel/frame | |||
| System external interface | Control | RS232 | ||
| Video output | NET | |||
| Power supply | Power | 12～28V | ||
| Power consumption | Av≤15W，Max≤30W | |||
| Environmental conditions | Operating temperature | -40℃～+60℃ | -20℃～+60℃ | |
| Storage temperature | -50℃～+70℃ | |||
| shock resistance | ≥400g | |||
Dimensions
Pseudo color mode
PIP Mode
How it Works
The working principle utilizes the latest infrared and visible light camera technology, and the infrared and visible light cameras work together to capture high-quality images and accurately track targets. The side view camera provides a wider coverage range, allowing the system to accurately track around the target. The tracking module ensures the accuracy of tracking and achieves efficient work efficiency.
Frequently asked questions:
Q: Does this universal energy-saving system withstand harsh weather conditions?
A: Yes, designed for perfect operation under all weather conditions.
Q: How light is a universal joint?
A: The universal joint design is lightweight, ensuring the optimal performance of the drone.
Q: Does the system provide real-time target tracking?
A: Yes, the universal joint includes a powerful tracking module that allows for precise real-time target tracking.
Using professional level equipment with dual infrared micro universal joints, take your monitoring capabilities to a new level. Its advanced features, all-weather performance, and precise tracking make it an indispensable tool for any surveillance operation.
