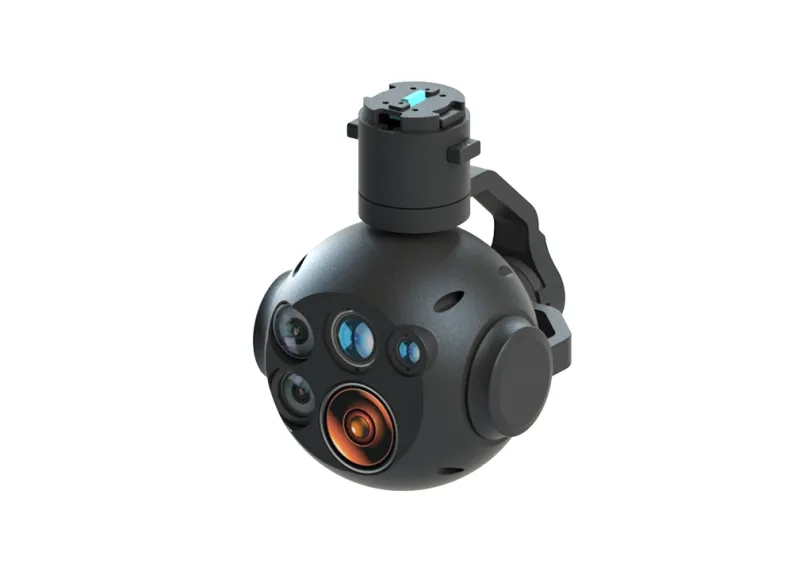

Equipment Infrared Ranging Tracking Drone Gimbal Camera

Availability: In Stock

The dual-mode imaging tracking system consists of an infrared camera, a visible light camera, and a tracking module that can lock and track motion throughout the day, regardless of climatic conditions. This is a cutting-edge solution designed for drone missions. With its advanced features and compact design, this universal joint is ideal for professionals seeking accurate tracking and imaging capabilities.

Compare
Category: Tag:

Description

The dual-mode imaging tracking system consists of an infrared camera, a visible light camera, and a tracking module that can lock and track motion throughout the day, regardless of climatic conditions. This is a cutting-edge solution designed for drone missions. With its advanced features and compact design, this universal joint is ideal for professionals seeking accurate tracking and imaging capabilities.

Product highlights:

 1.EO IR GIMBAL: This universal joint is equipped with EO (electro optical) and IR (infrared) cameras, providing dual mode imaging function for day and night operations.

2.Small pod: This universal joint has a compact and lightweight structure, weighing less than 480 grams, making it perfect for drone applications where weight and size limitations are crucial.

3.Drone Universal Joint: This universal joint is designed specifically for drones and has excellent stability and control capabilities, ensuring a smooth and stable image even under challenging flight conditions.

4.UAV POD: The quick detachable structural design of the universal joint allows for easy load replacement.

5.Three axis unmanned aerial vehicle universal joint: The three axis stabilization system of the universal joint ensures precise and stable tracking ability, providing smooth graphics even during high-speed maneuvers.

6.Laser ranging:Equipped with laser ranging function, measuring a distance of 3km, capable of precise positioning.



Specifications:

1、7.2/25mm main lens EO: The universal joint is equipped with a main lens EO camera, which can capture clear images during daytime operation.

2、24mm main lens infrared: The universal joint is also equipped with a main lens infrared camera, which can achieve thermal imaging and improve visibility in low light or nighttime conditions.

3、3 km laser ranging: This universal joint has a laser ranging capability of up to 3 km, ensuring accurate distance measurement.

4、Tracking function: The universal joint includes a tracking module that can lock and track moving targets.

5、12~28V power input: This universal joint has a wide voltage input range and can be easily integrated into various drone power systems.

6、Ethernet video output: The universal joint supports Ethernet video output, achieving seamless real-time video streaming and remote viewing.

7、Small size and low power consumption: This universal joint is designed to minimize power consumption without affecting performance, with energy-saving properties and extending the flight time of unmanned aerial vehicles.



Parameters

MODEL S2IVR-01 S2IVR-02 S2IVR-03
System specification System type Gyro stability
Weight 410g 510g
Stable system Platform type Two axle Tri axis
Azimuth -110°~+110° N×360°
pitch -100°~+30°
Maximum search angular velocity ≥100°/s
Stability accuracy 0.1mrad(1°/2HZ)
Angular position accuracy ≤0.3°
Visible light camera Resolution and frame rate 1920×1080 @60fps
BIG FOV 42°×24.5°(7.2mm)
SMALL FOV 12.7°×7°(25mm)
Infrared camera Resolution and frame rate 640×480@60fps
FOV 18.1°×13.6°(24mm prime lens)
Ranging Laser Ranging Range≥3km;

Accuracy±1m

Tracking module Frame rate 60Hz
Tracking speed ±48 Pixel/frame
System external interface Control RS232
Video output  NET
Power supply Power 12~28V
Power consumption Av≤15W,Max≤30W
Environmental conditions Operating temperature -40℃~+60℃ -20℃~+60℃
Storage temperature -50℃~+70℃
shock resistance ≥400g



Dimensions

EO IR GIMBAL

PIP Mode:

Small size pod

How it works:

The infrared ranging and tracking drone Gimbal combines visible light, infrared, and laser ranging technologies to bring you multifunctional tracking and imaging solutions. The dual mode imaging system of the universal joint ensures clear and detailed visual effects during both day and night operations. The tracking module intelligently locks and tracks moving targets, providing continuous detection and analysis functions.

By integrating advanced electronic and optical components into a compact metal casing for operation, this universal joint complies with EMC design specifications, ensuring reliable performance even in demanding environments. Its lightweight design and fast detachable features further enhance its usability, making it crucial for maximum versatility in drone applications.





Frequently asked questions:

Q: What is the weight of this universal joint?

A: Gimbal infrared ranging and tracking drones weigh less than 480 grams, making them an ideal choice for drone applications.

Q: Under what lighting conditions can this universal joint be used?

A: Yes, this universal joint combines EO and IR cameras to achieve optimal imaging performance in daytime, low light, or nighttime conditions.

Q: What is the power input range of this universal joint?

A: The universal joint supports a power input range of 12-28V, ensuring compatibility with various drone power systems.

Q: Does this universal joint have video output function?

A: Yes, this universal joint uses Ethernet video output for real-time video streaming and remote viewing.

Q: Does this universal energy-saving track the moving target?

A: Of course. The universal joint includes a tracking module, which can achieve precise target recognition and tracking, providing real-time detection and analysis functions.
