Description

Product feature:

Powerful performance
The ground end is equipped with Qualcomm eight-core high-performance CPU, with H.264 or H.265, 1080P@60FPS hard decoding capabilities. The powerful computing performance greatly reduces video transmission and display delays.
High definition and bright display
FarEasTone S1 integrates a 5.5-inch 1920*1080 high-definition high-brightness display. The maximum screen brightness reaches 1000cd/m2, which is nearly twice the maximum brightness of common smartphone screens. You can still clearly view real-time images and display information in sunlight environments, without fear. direct sunlight.
Easy to use
Highly integrated three-in-one link of image transmission, data transmission and remote control, ultra-small size, convenient integration.
Rich interfaces
Supports 2 network ports, 2 serial ports and 1 S-BUS interface.
OFDM multi-carrier modulation
The underlying design of the solution uses OFDM multi-carrier modulation technology to effectively combat inter-code interference and inter-sub-channel interference caused by multipath effects.
Automatic frequency hopping
Supports two working modes: manual fixed frequency and automatic frequency hopping. In frequency hopping mode, the device can automatically detect and avoid narrowband interference signals and select the frequency with the least interference.
Antenna selection
The product supports antenna switching. During flight, the antenna with better signal can be selected in time according to the fuselage obstruction.
Transmit power adaptive
Under the premise of ensuring the stability of the wireless link, the device’s transmission power is actively reduced to save power and effectively improve battery efficiency.
MCS adaptive
The downlink MCS (Modulation & coding scheme) mode supports self-adaptation and can automatically and dynamically adjust according to real-time signal quality, optimizing the overall delay of the application system while ensuring continuity of data transmission.
AES encryption
Supports AES256 and AES128 encryption methods to prevent illegal monitoring and interception, fully ensuring the security of data transmission.

Specifications

Working Frequency:  1.4GHz/2.4&5.8GHz
Trans mint ting Power:   27dBm
ViuRC5Arg Range:   3.5KM
ViuRC5Pr oRange:   10KM
Voltage Supply:   6S~16S(Air Unit)
Channel:   14

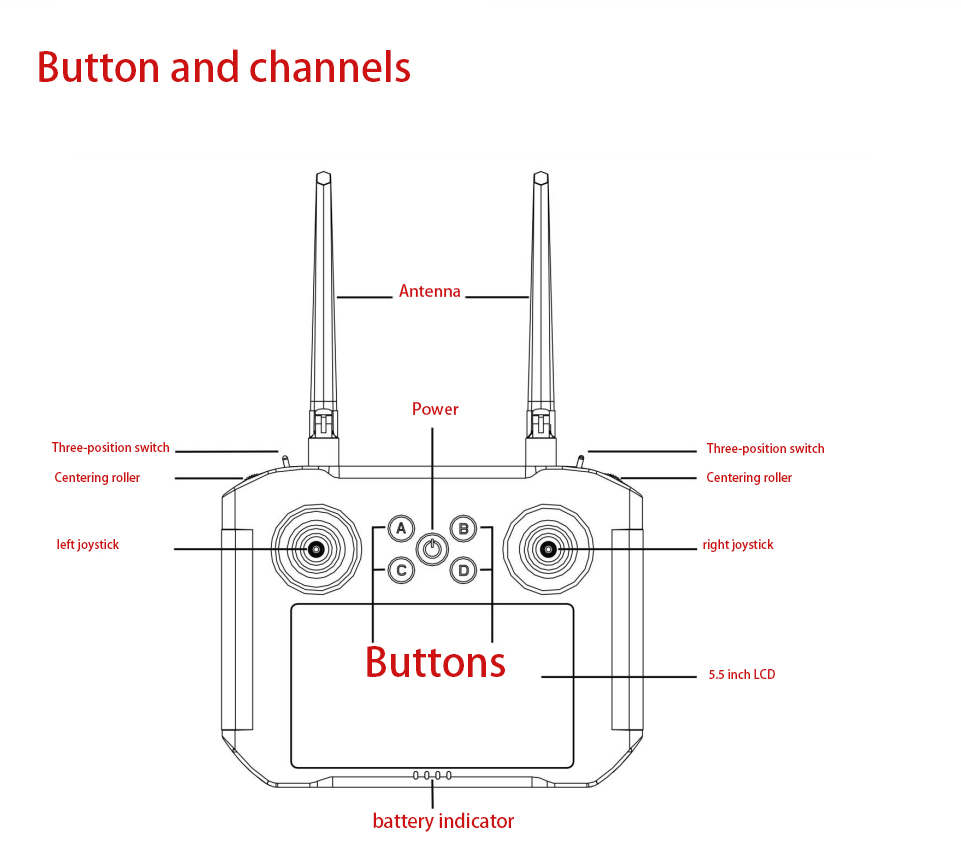

Display:   5.5”LCD TouchScreen
OperatingSystem
Android 9.02GRAM， 16G Storage
Dimension: 210x178x75mm(RC)
83x50x 22.5(Air Unit)
Weight:  793g(RC) 、41g(Air Unit
Battery Storage:  7800mAh
Duration:  6H

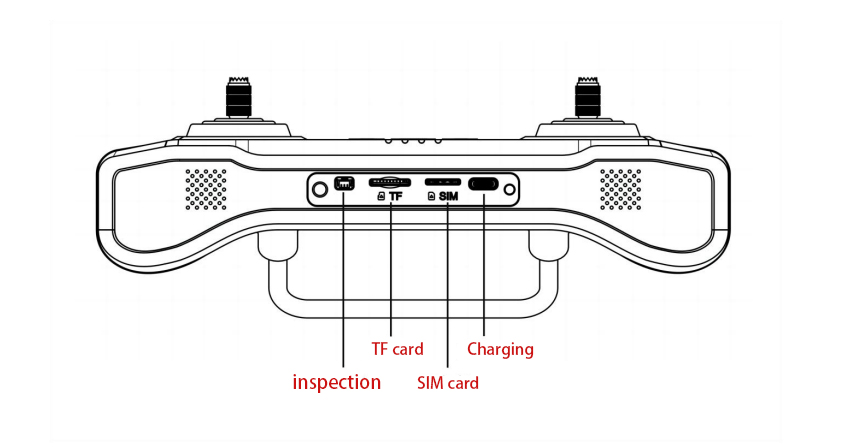

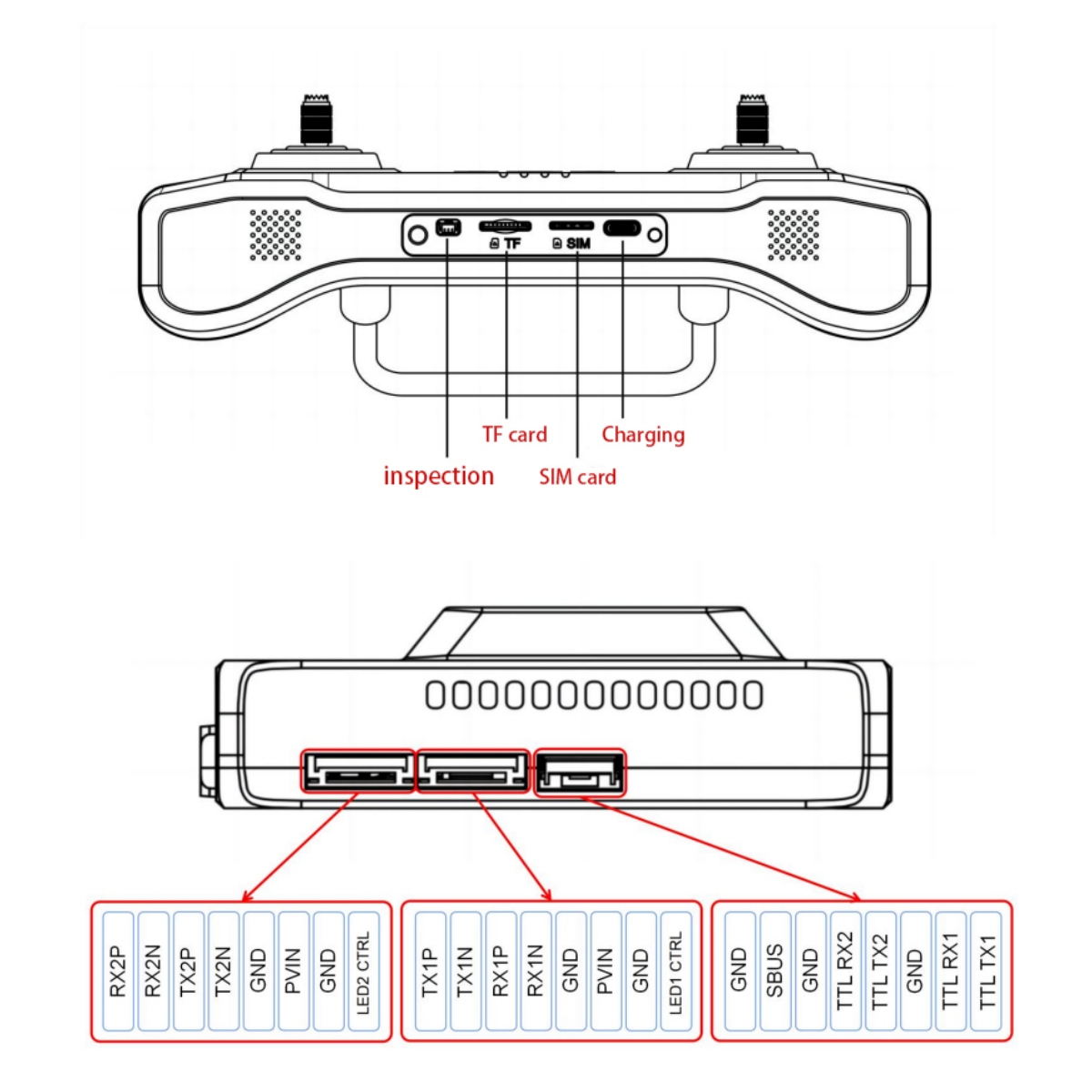

Interface: USB、TF、SIM(RC)

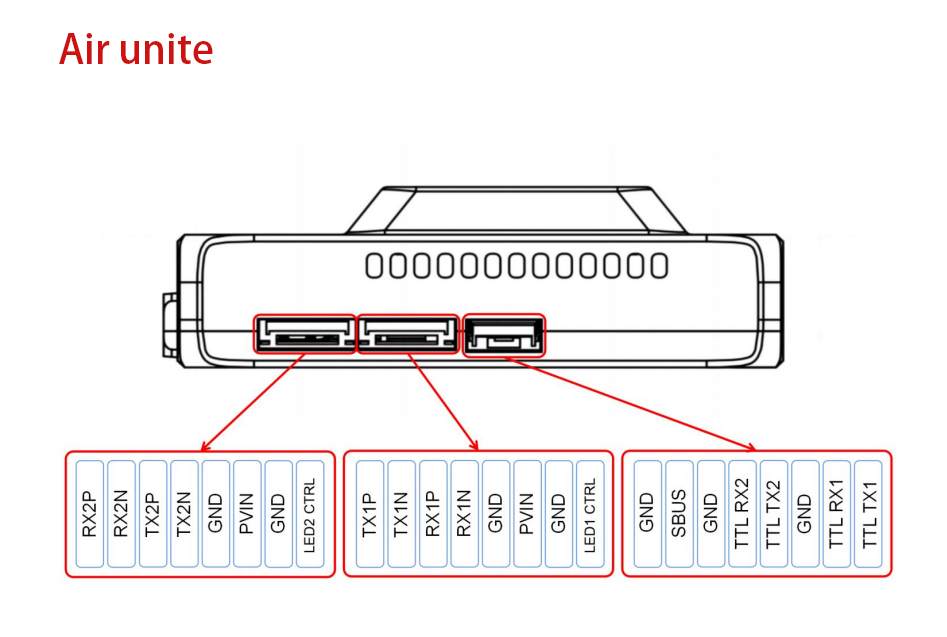

ETH*2、TTL*2、S.BUS(Air Unit)
Working Temperature:  -10℃~55℃
Camera View:  FOV 120°
