Description

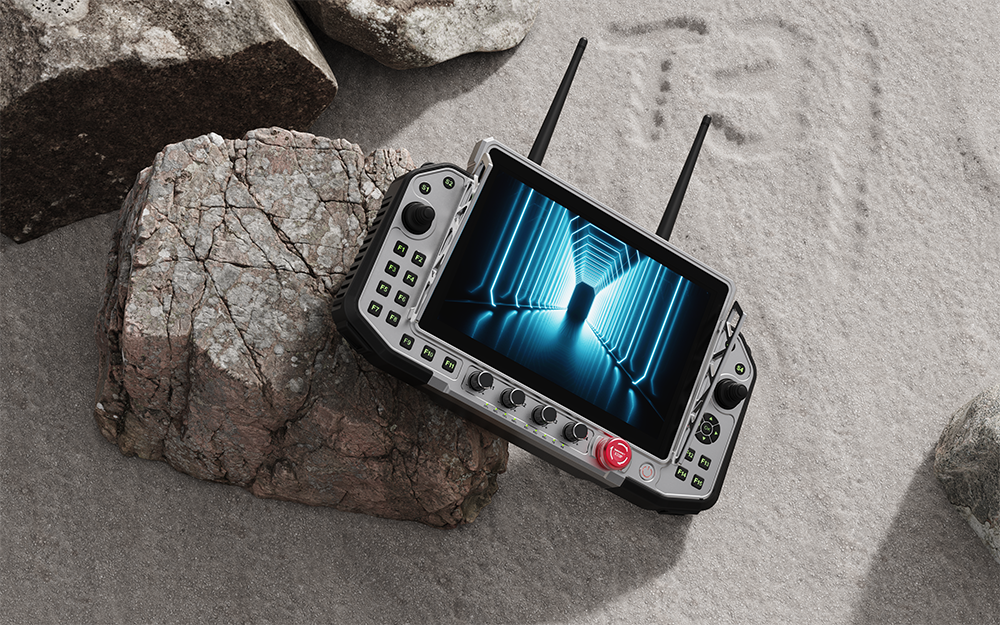

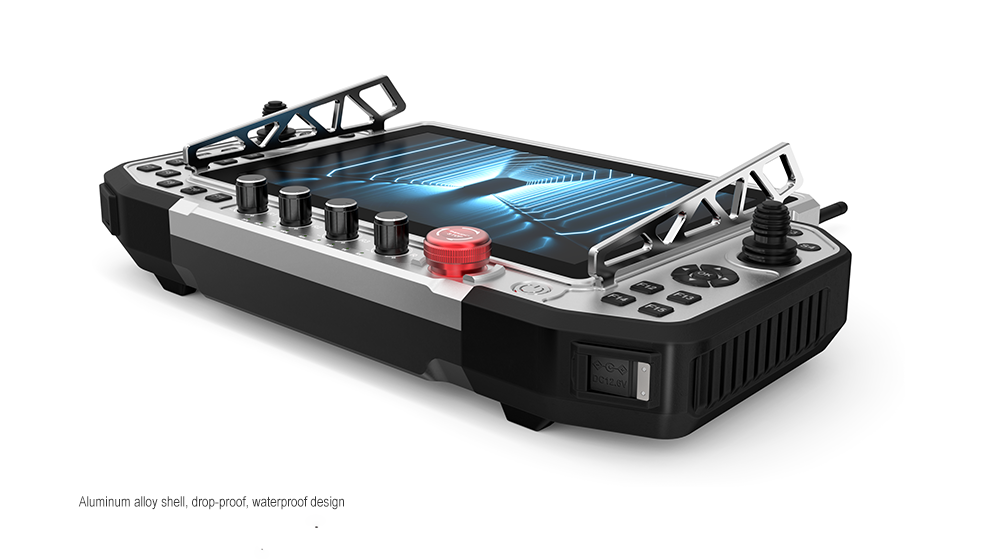

The aircraft aluminum alloy shell is adopted, and the machine tool is finely processed. The handle is fully rubber-wrapped for better grip and remote control.

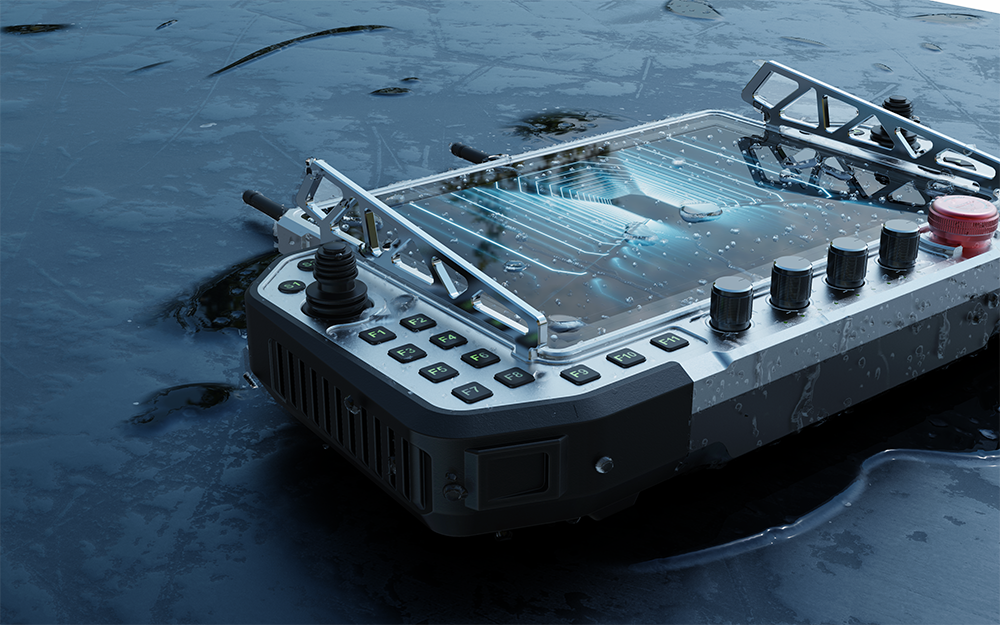

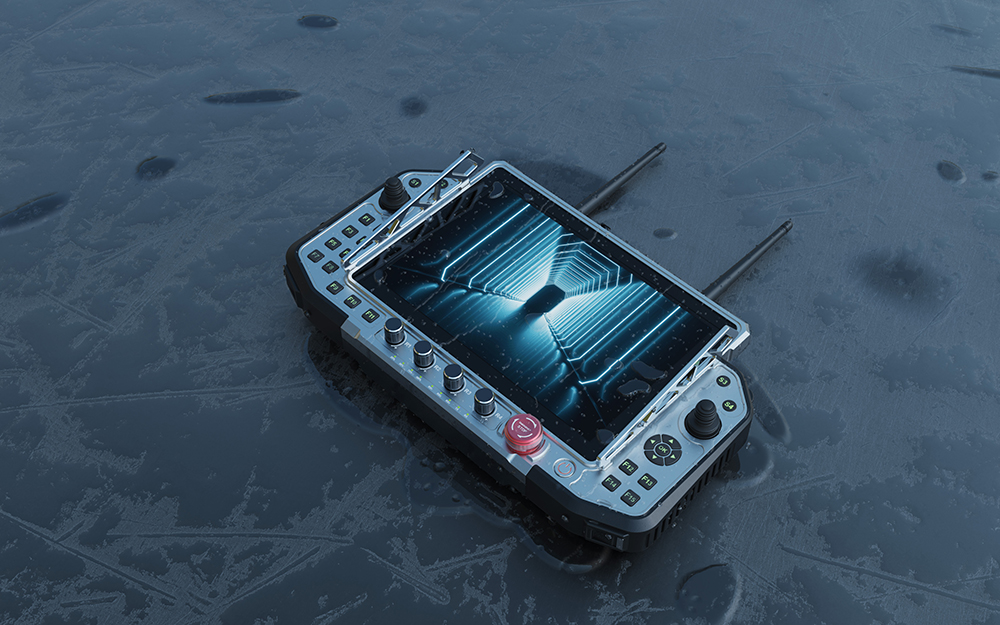

The ingenious connecting rod design can adjust the position of the hanging strap, which has the functions of anti-collision and so on. IP54 grade waterproof,
enhance environmental adaptability.

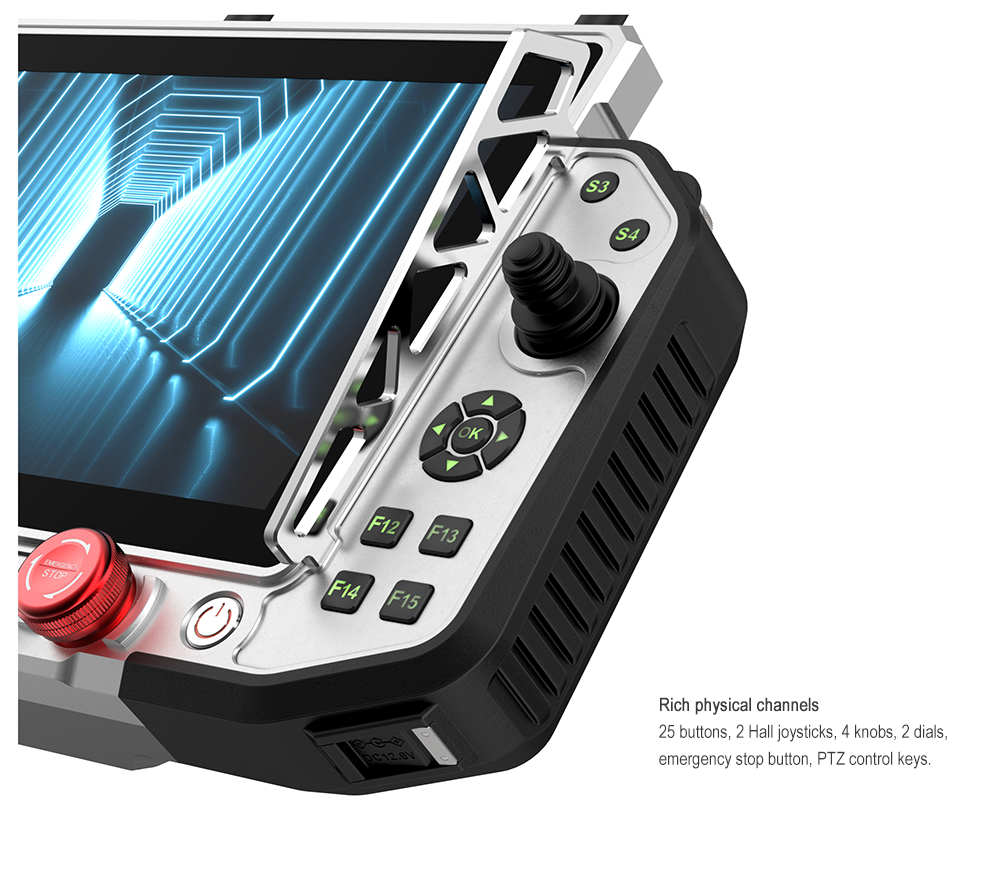

Rich physical channels
25 buttons, 2 Hall joysticks, 4 knobs, 2 dials, emergency stop button, PTZ control keys.

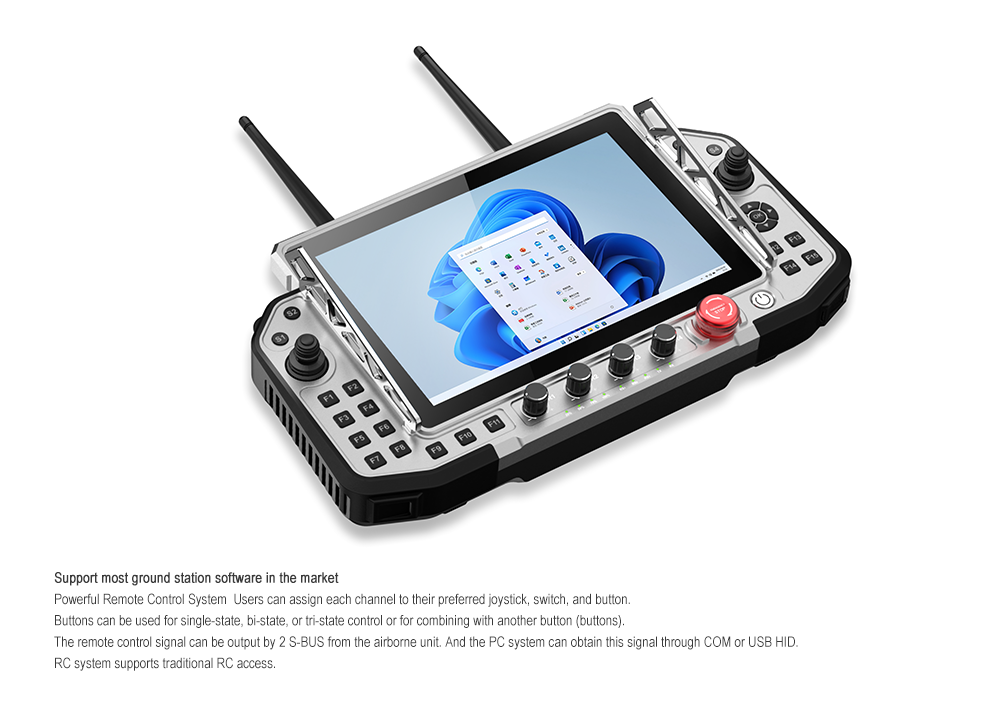

The joystick system can be mapped freely and supports traditional RC access.
The joystick system provides a variety of programming modes, which can be mapped to each
channel position of the 2-way S-BUS, or a custom protocol output. The domestic first soft key
setting, each function key can realize single-state, double-state, three-state control, add combination key,
super combination key function, can use the key to simulate the linear output function and multi-function switching.
Can replace other manufacturer’s radio equipment

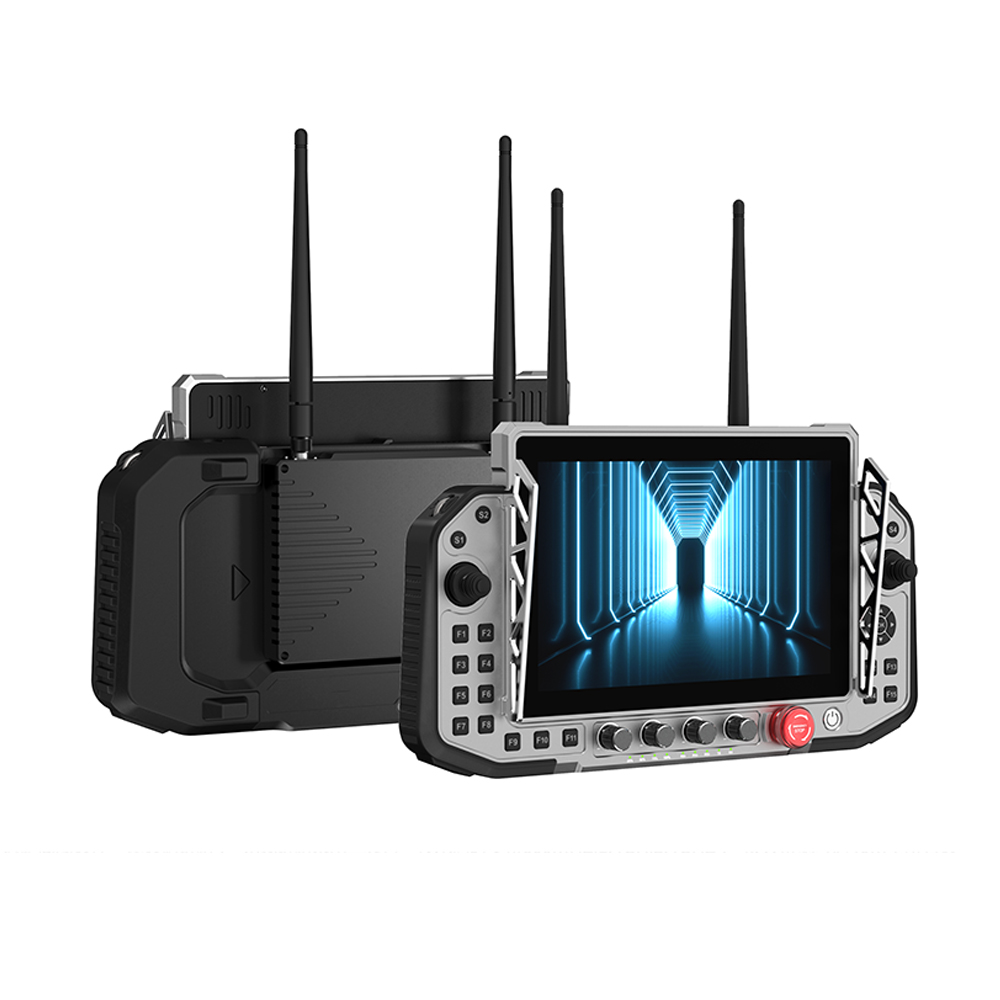

The equipment compartment provides rich interfaces, integrates with third-party equipment, and is compatible with
most links on the market. Support the expansion of the CAN interface, and the CAN protocol customization function
can be set on the upper computer.
The serial port protocol is provided, and the underlying communication protocol can be obtained to facilitate the user’s
secondary development.

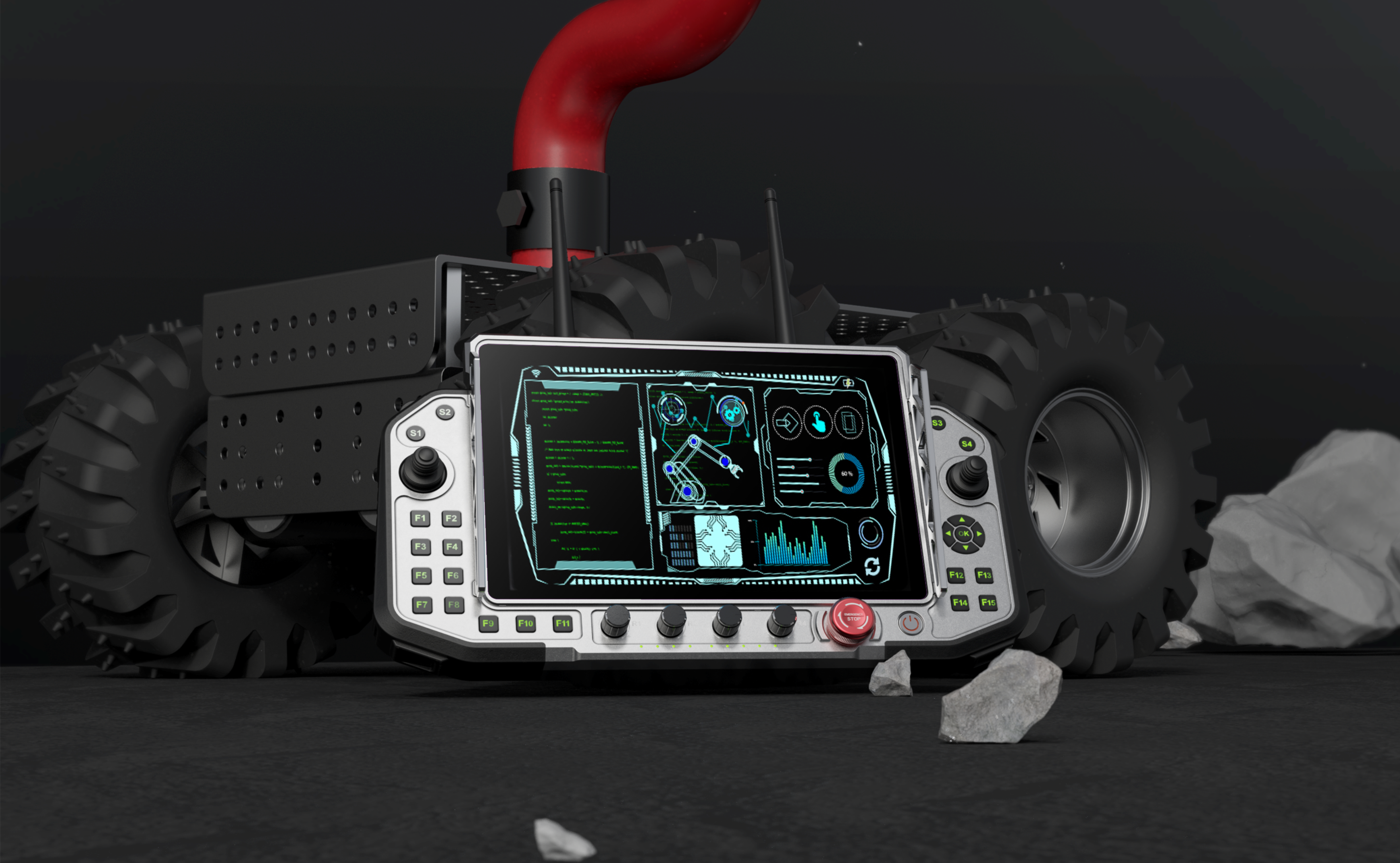

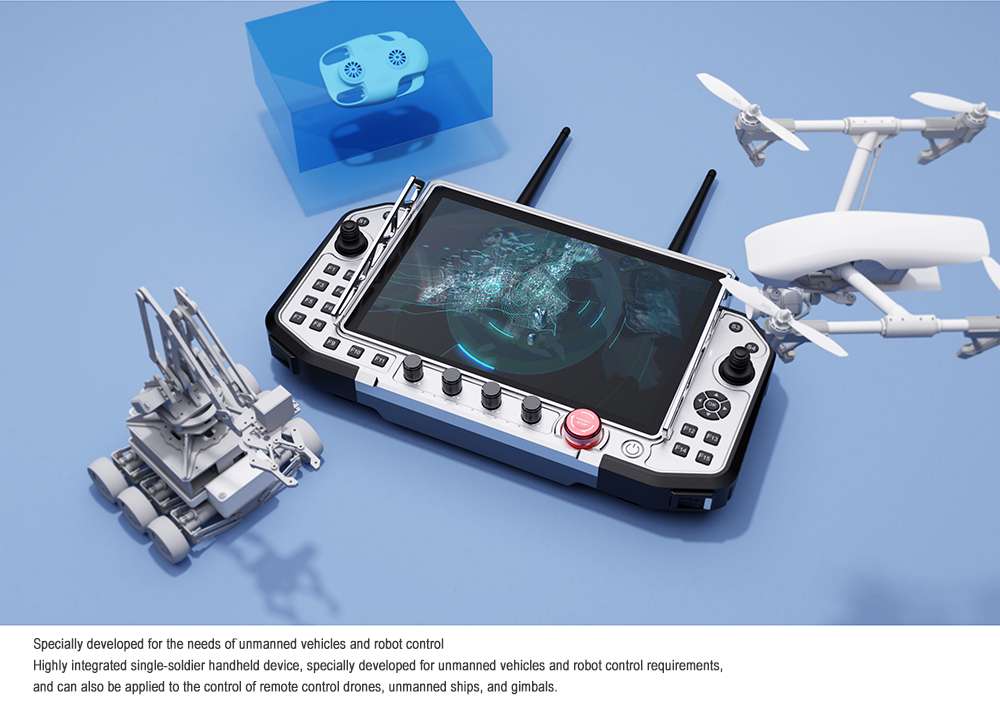

Specially developed for the needs of unmanned vehicles and robot control

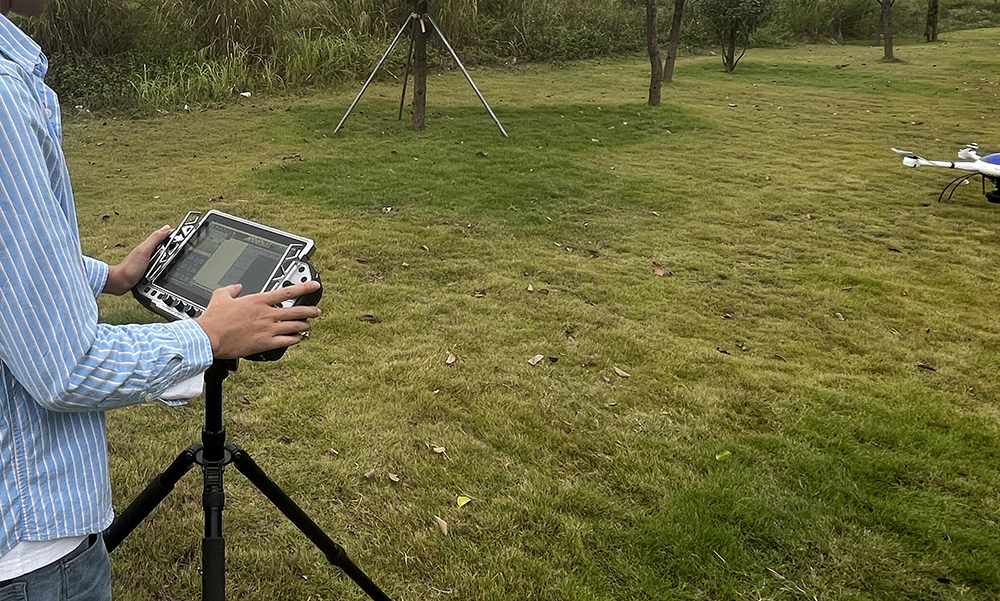

Highly integrated single-soldier handheld device, specially developed for unmanned vehicles and robot control requirements, and can also be applied to the control of remote control drones, unmanned ships, and gimbals.
Product parameters
| Dimension | |
| Overall weight | 2800g |
| Dimension | 378mm(L)*221mm(W)*54mm(H) |
| Screen size | 10.1inch industrial touch screen |
| Computer Peripherals | |
| CPU | Intel i5 6200U/ 2.3GHz |
| Touch pad | 10-finger capacitive touch screen |
| Operating system | Windows10/Linux |
| RAM | 8GB DDR4L(standard), 32G max |
| SSD storage | 128GB(standard), 1T max |
| Network | WIFI/Bluetooth(standard) 4G(optional) |
| Interfaces | HDMI*1, USB3.0*1, 4G SIM*1, LAN*1 |
| Remote Control | |
| Physical channel | Main joysticks*2(industrial joysticks with hall sensors)
Knob*4 Key button*25 Pull wheel*2 1 stop button 1 directional button 7 simulate keystrokes |
| Human interface | USB HID |
| Remote control function | Dual SBUS independent output, able to control the vehicle and the payload simultaneously |
| SBUS port | SBUS IN; SBUS OUT |
| Remote control latency | 40ms |
| Battery Peripherals | |
| Battery capacity | 12.6V/10200mAh, external battery also supported |
| Working time | 3.5hs@full battery capacity |
| Charging port | Type-c 65W fast charge |
| Communication link | |
| V21 | 10km grade Video&telemetry&RC link |
| The 3rd party communication link | Supported |
