Description

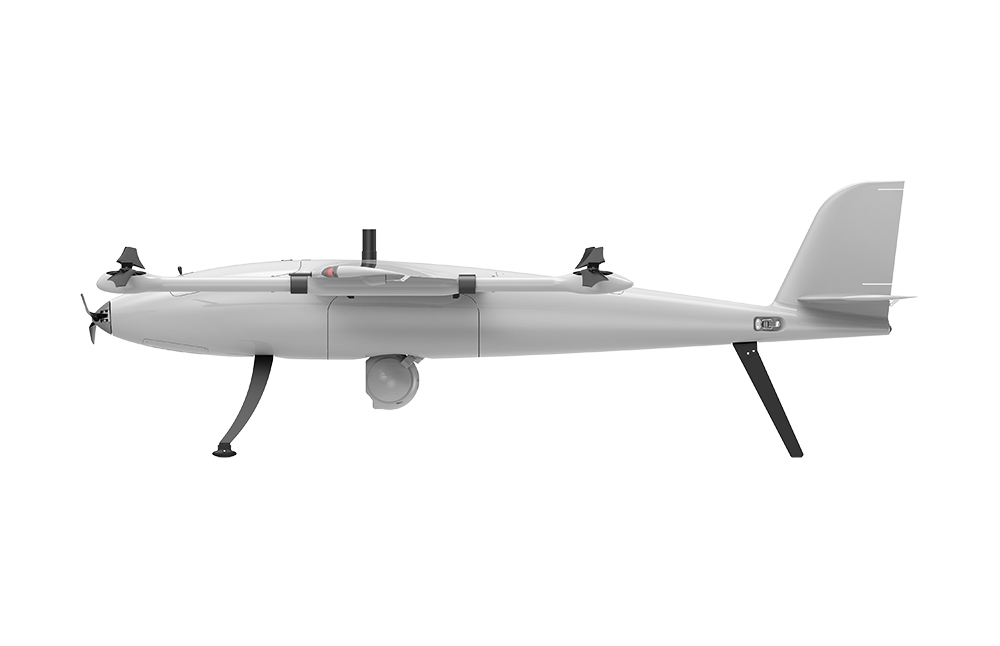

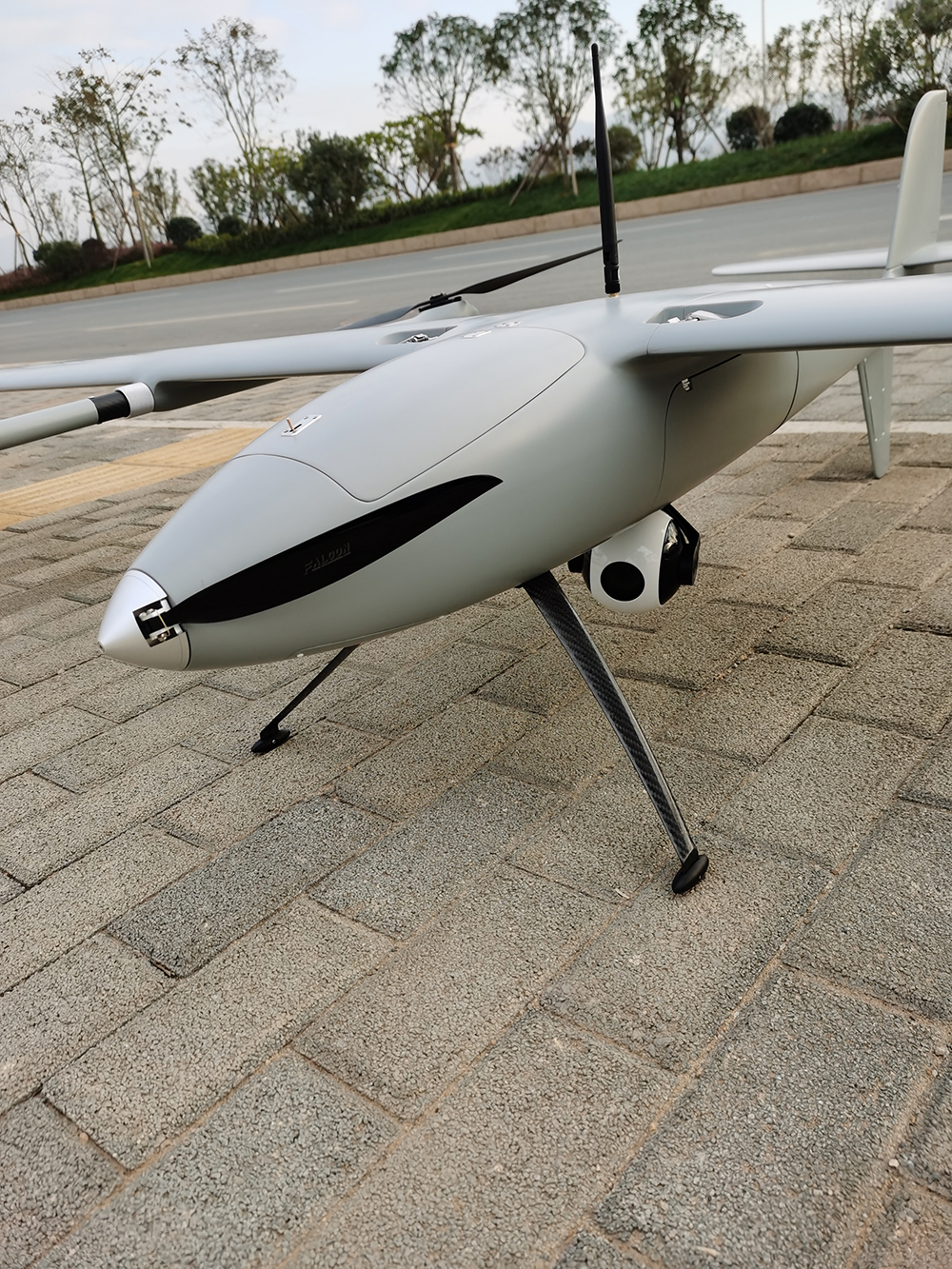

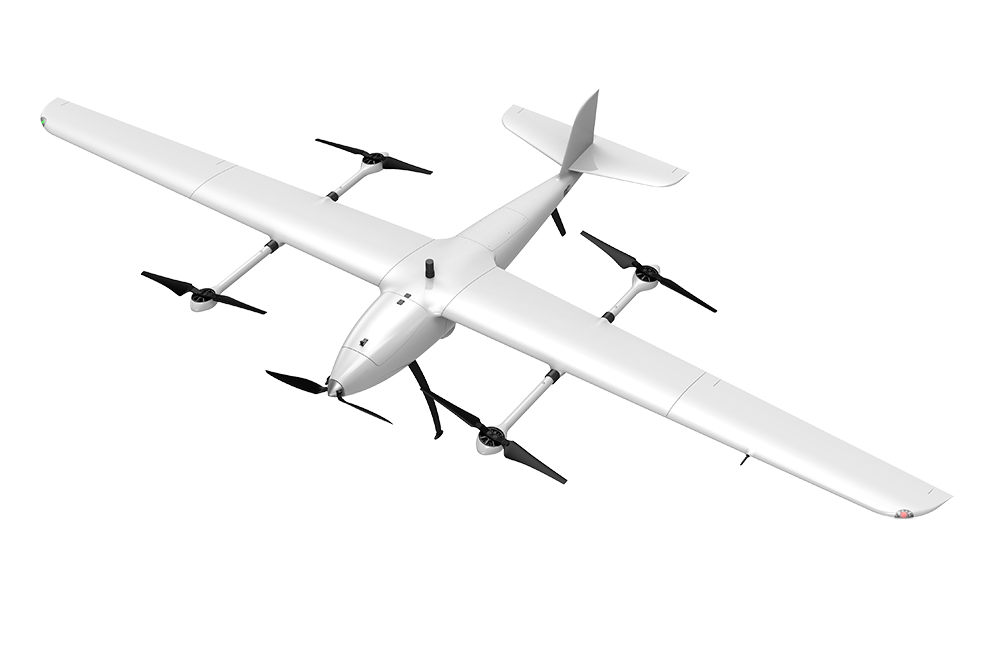

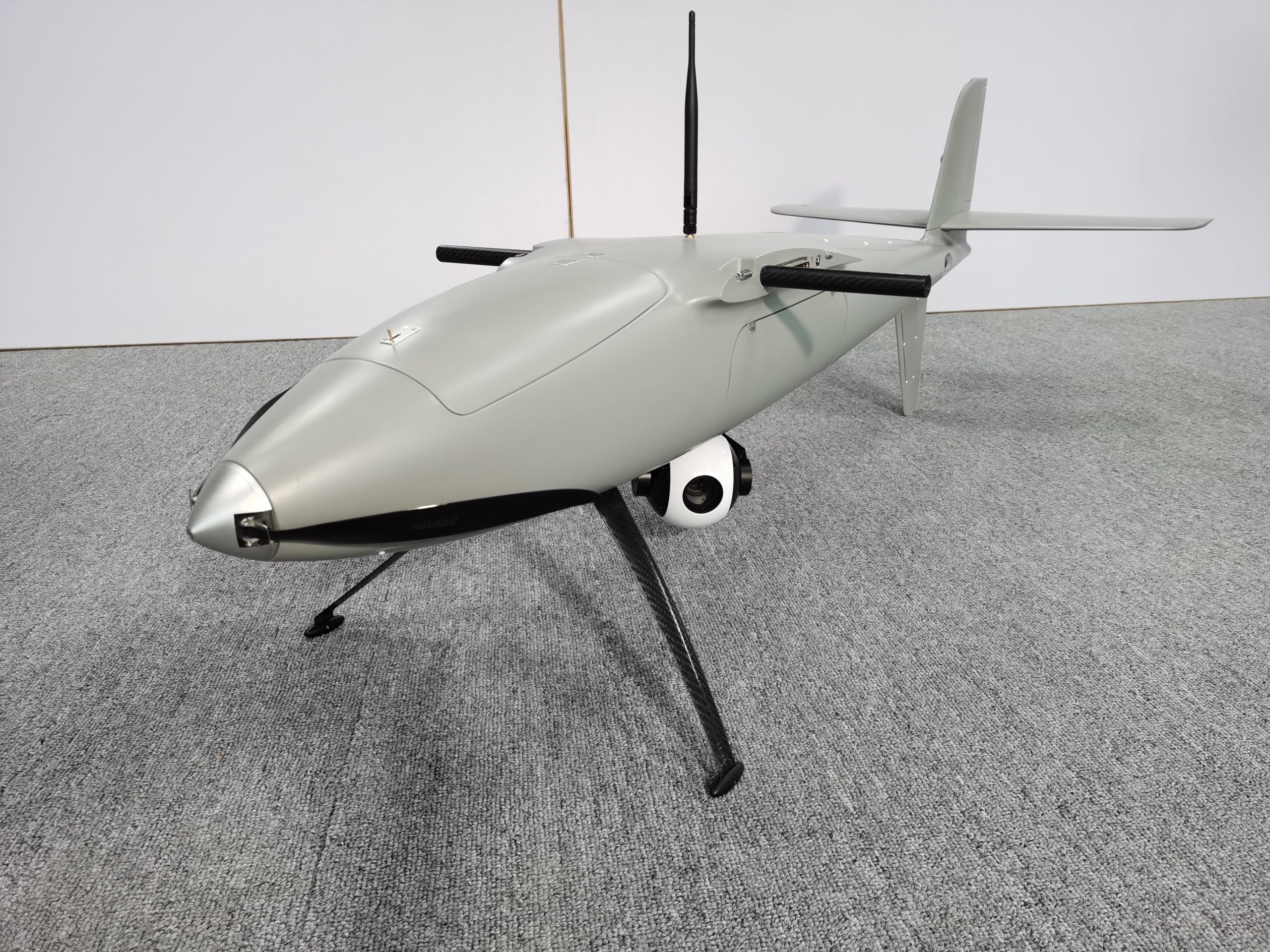

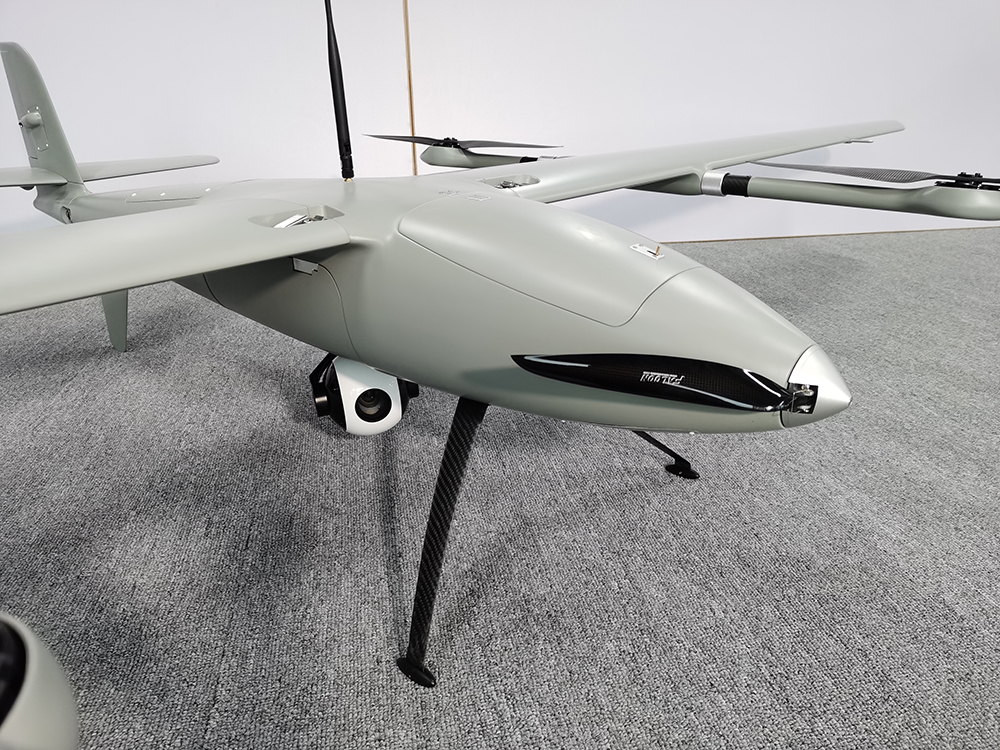

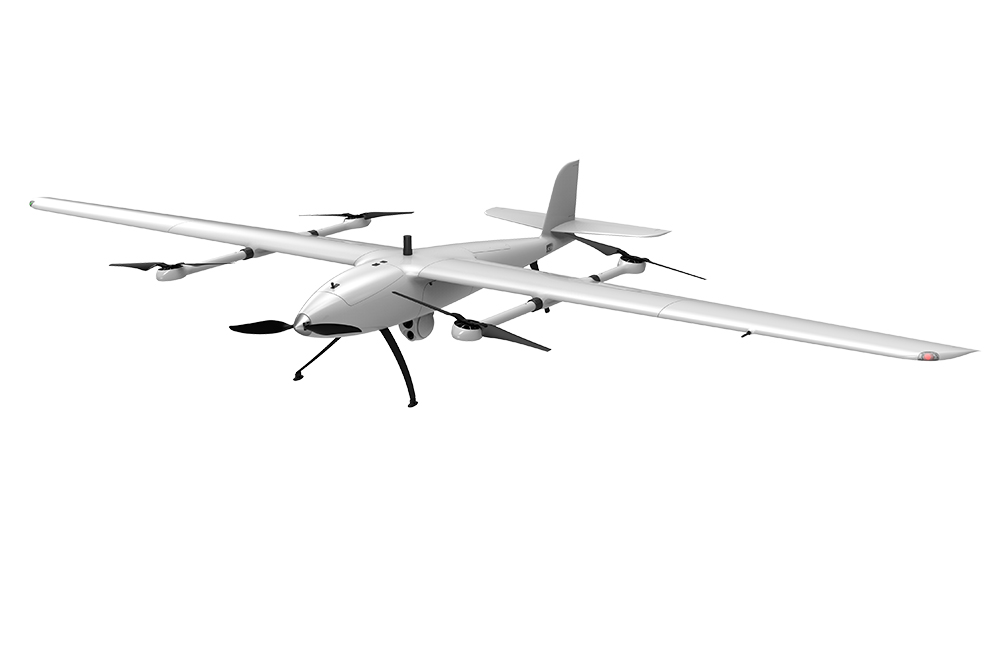

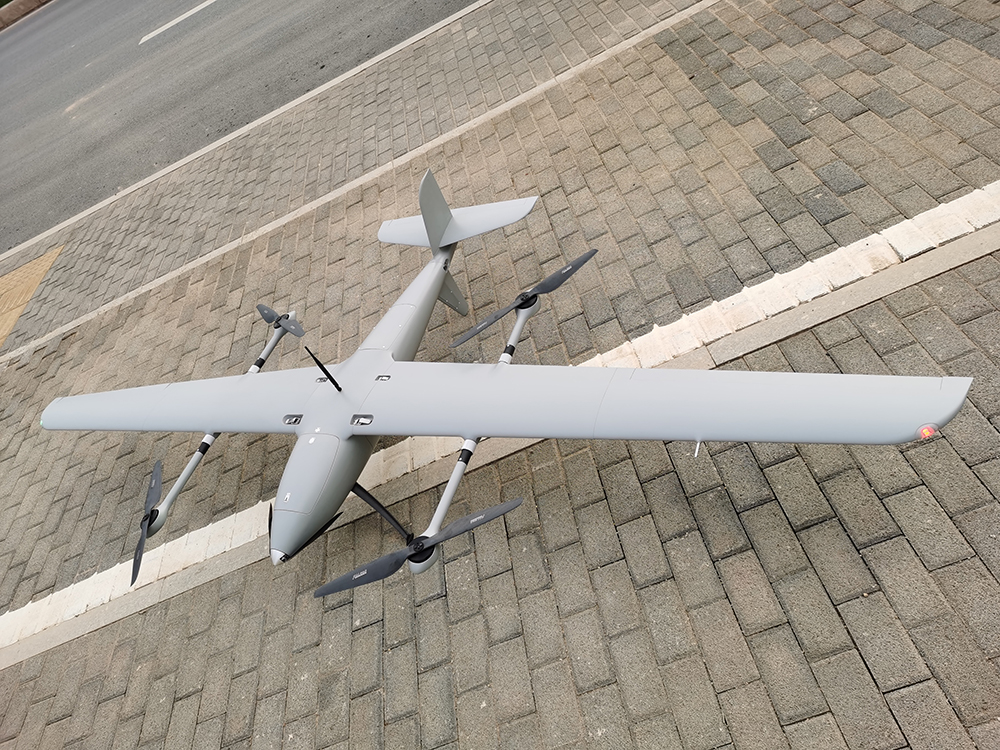

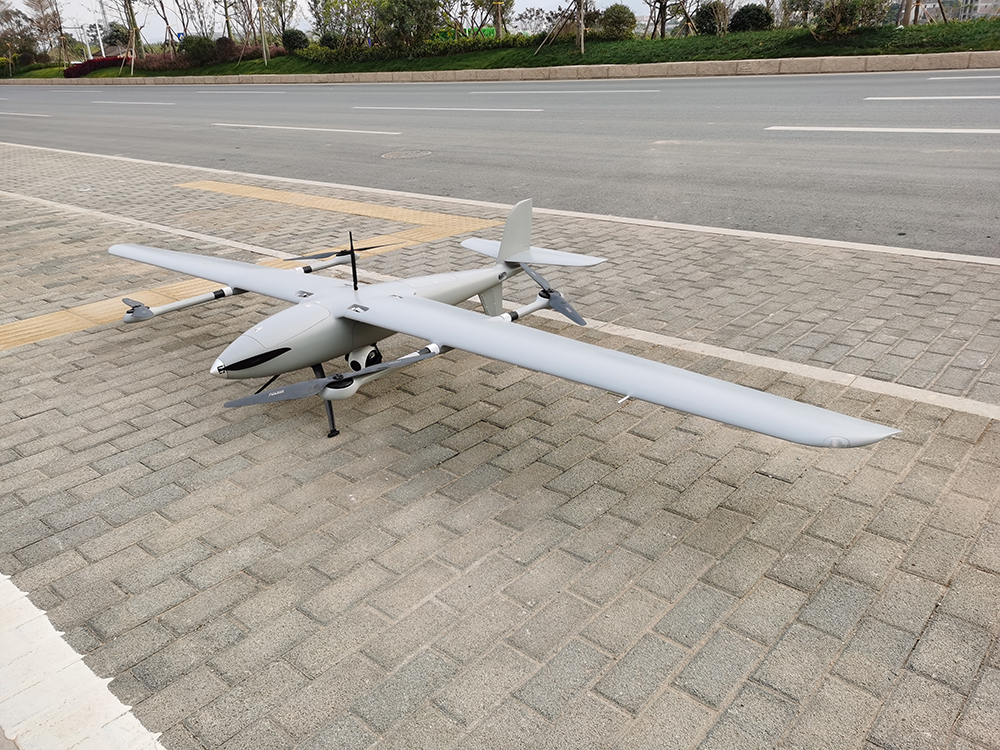

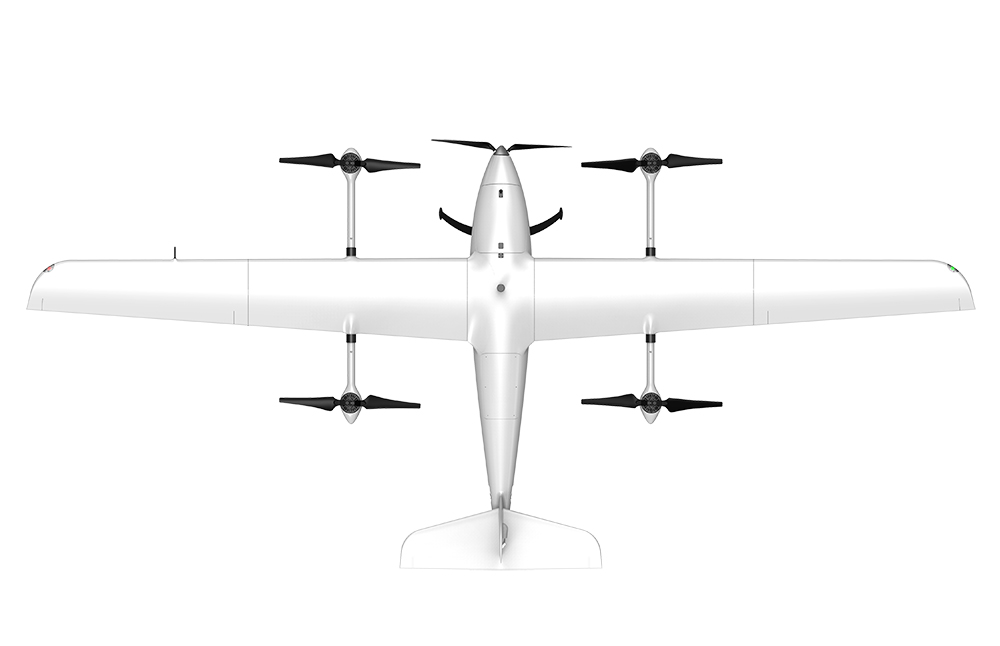

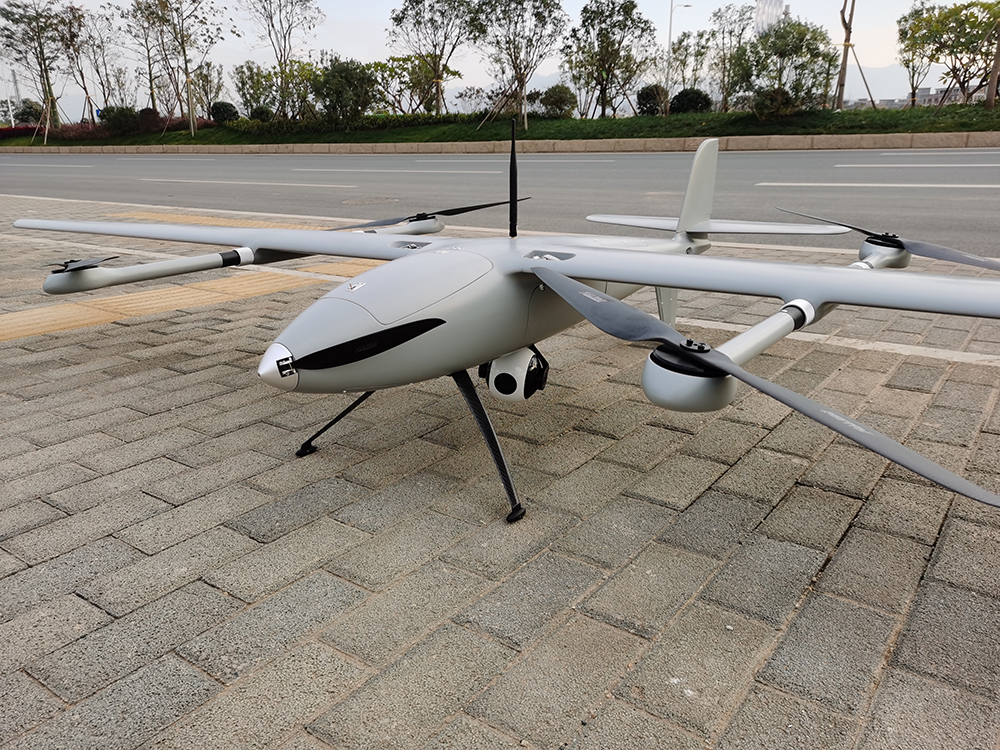

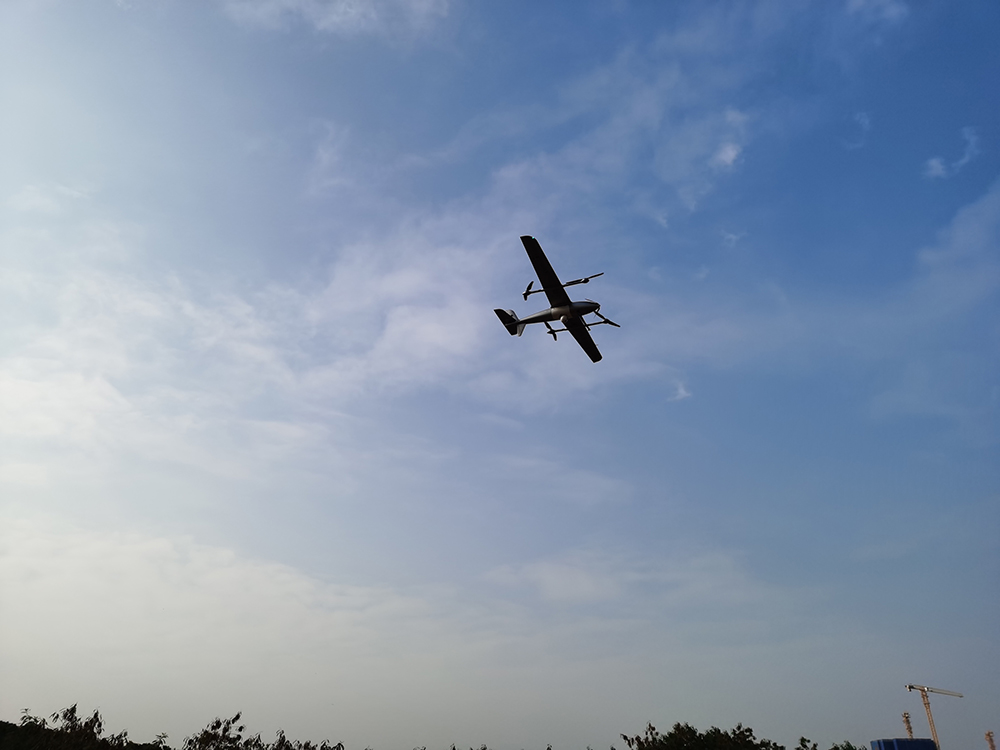

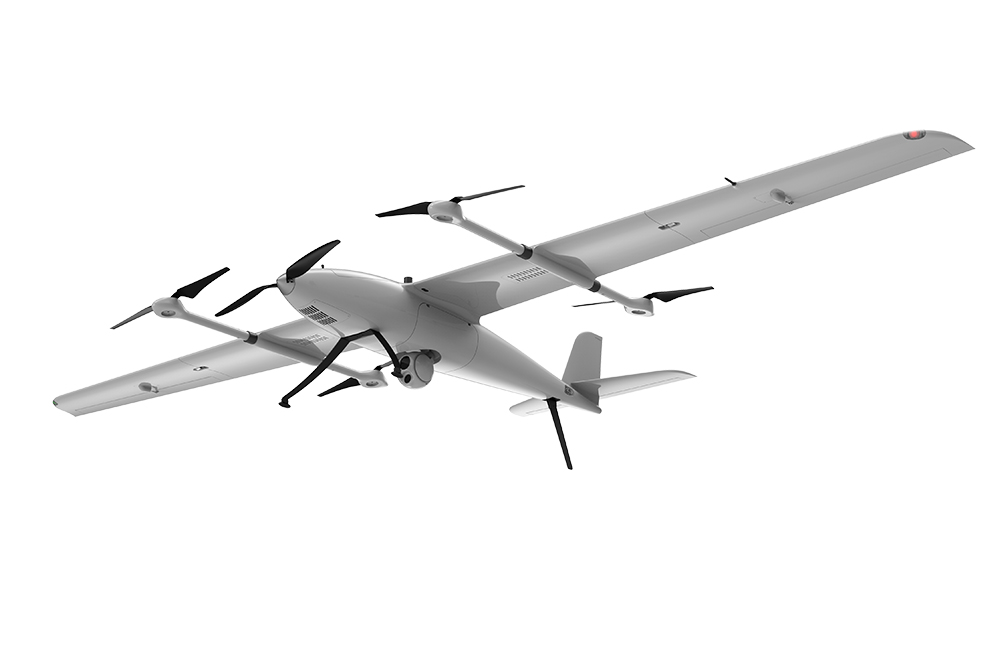

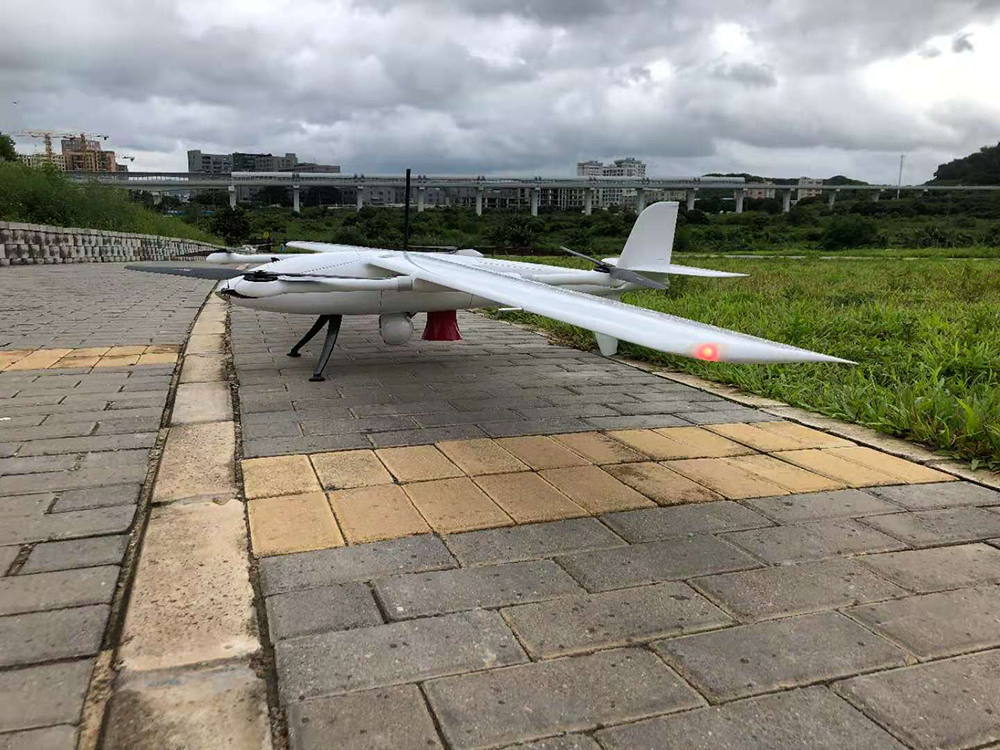

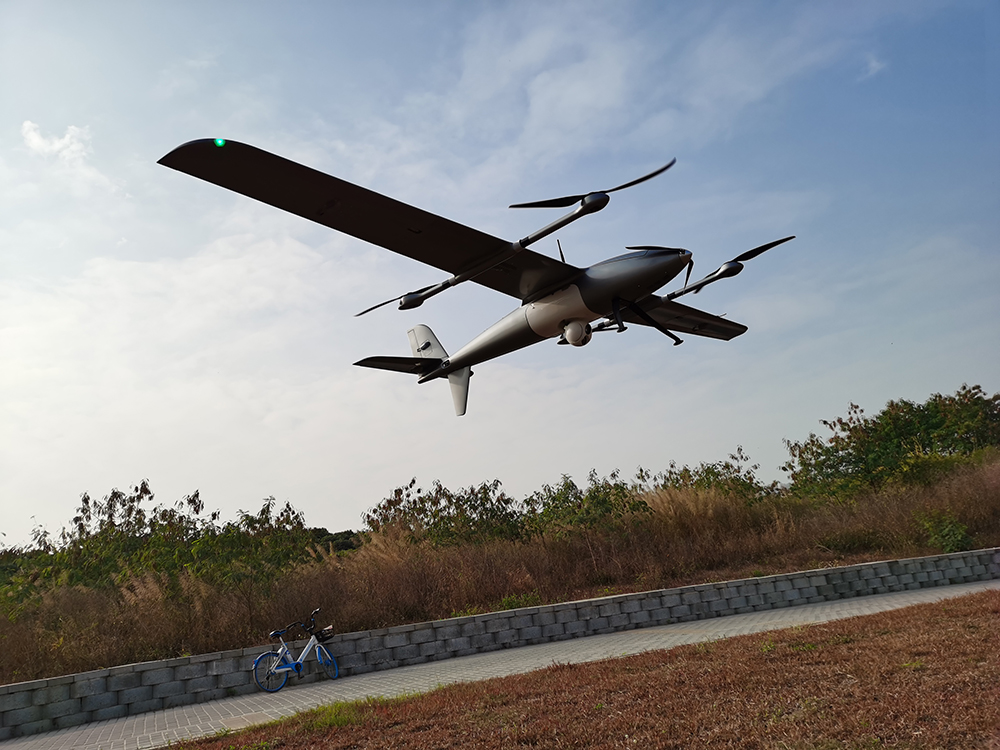

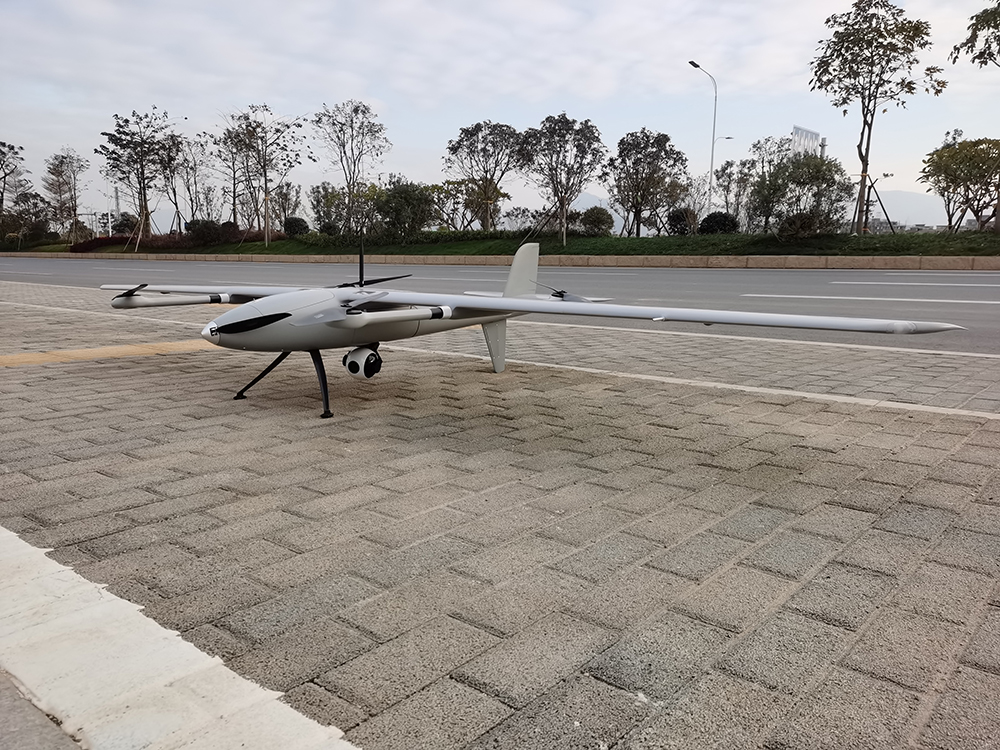

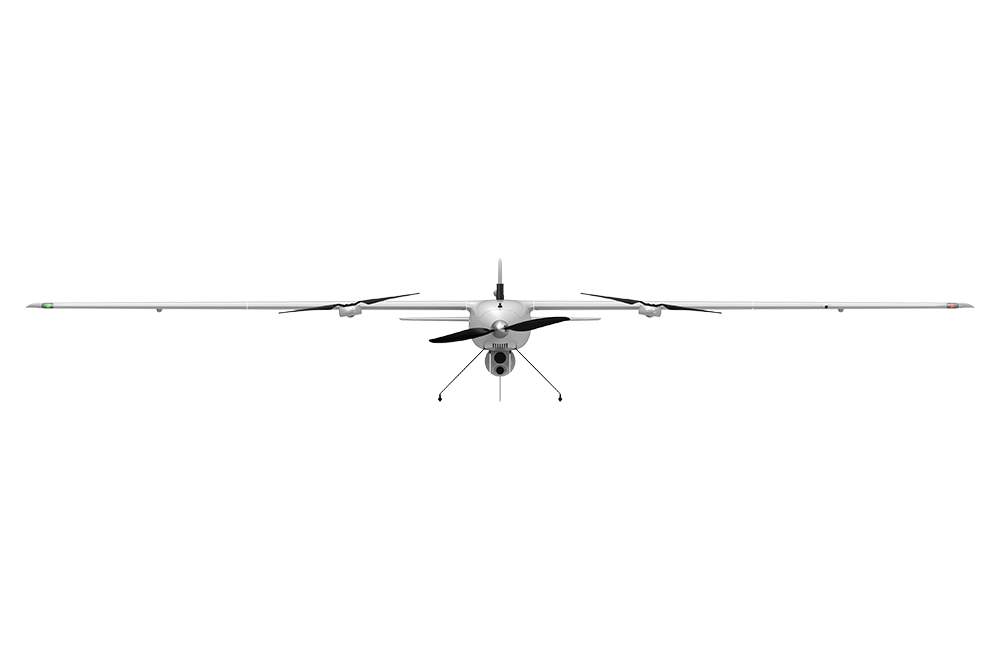

FDG33 VTOL UAV is a pure electric VTOL fixed wing UAV with the features of long endurance, high reliability, large climb rates, long control distance, convenient maintenance, it’s easy to deal with the flight in high drop terrain. it is specially developed for mapping, and security & surveillance. It comes with four lift motors and one fixed-wing motor, which will allow the fixed-wing VTOL to ascend like a quadcopter. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing. It’s mainly used for environment monitoring, power/oil pipeline patrol, railway patrol, surveying and mapping, border patrol, forest fire prevention etc. It can be equipped with 30X zoom dual optical pod system which is high-precision stabilized and reduce the difficulty of locking and tracking for moving targets, and complete the tasks efficiently in the application of inspection and tracking. FDG33 VTOL UAV can fly 3 hours with 3kg payload.
Technical Specification of FDG33 vtol drones
MTOW: 18kg
Weight without battery and payload: 9.7kg

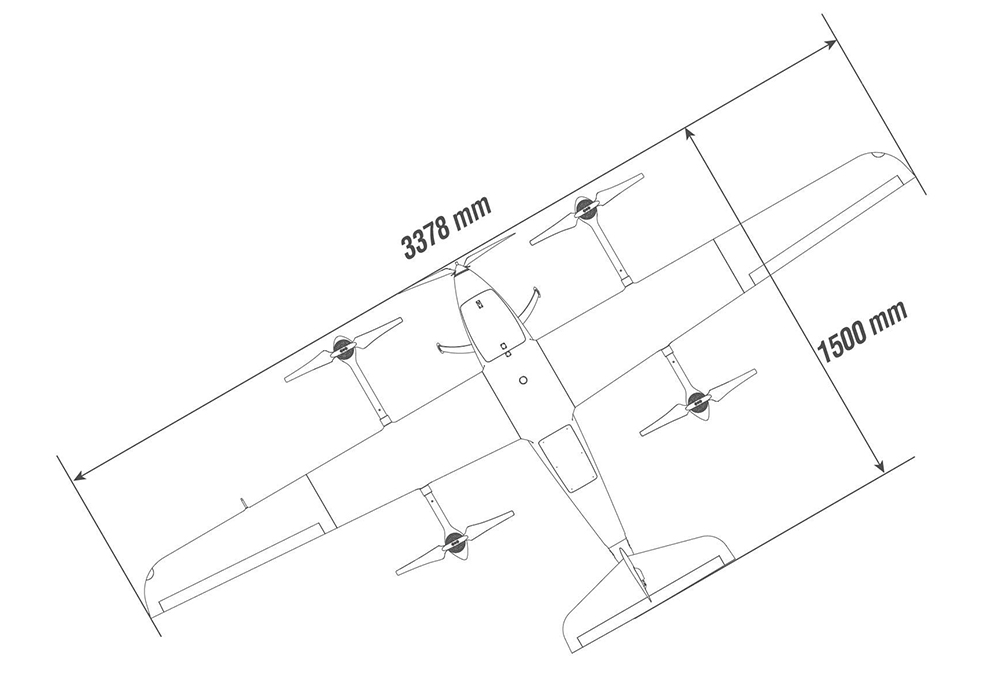

Wingspan: 3,378mm
Length: 1,500mm
Height: 500mm

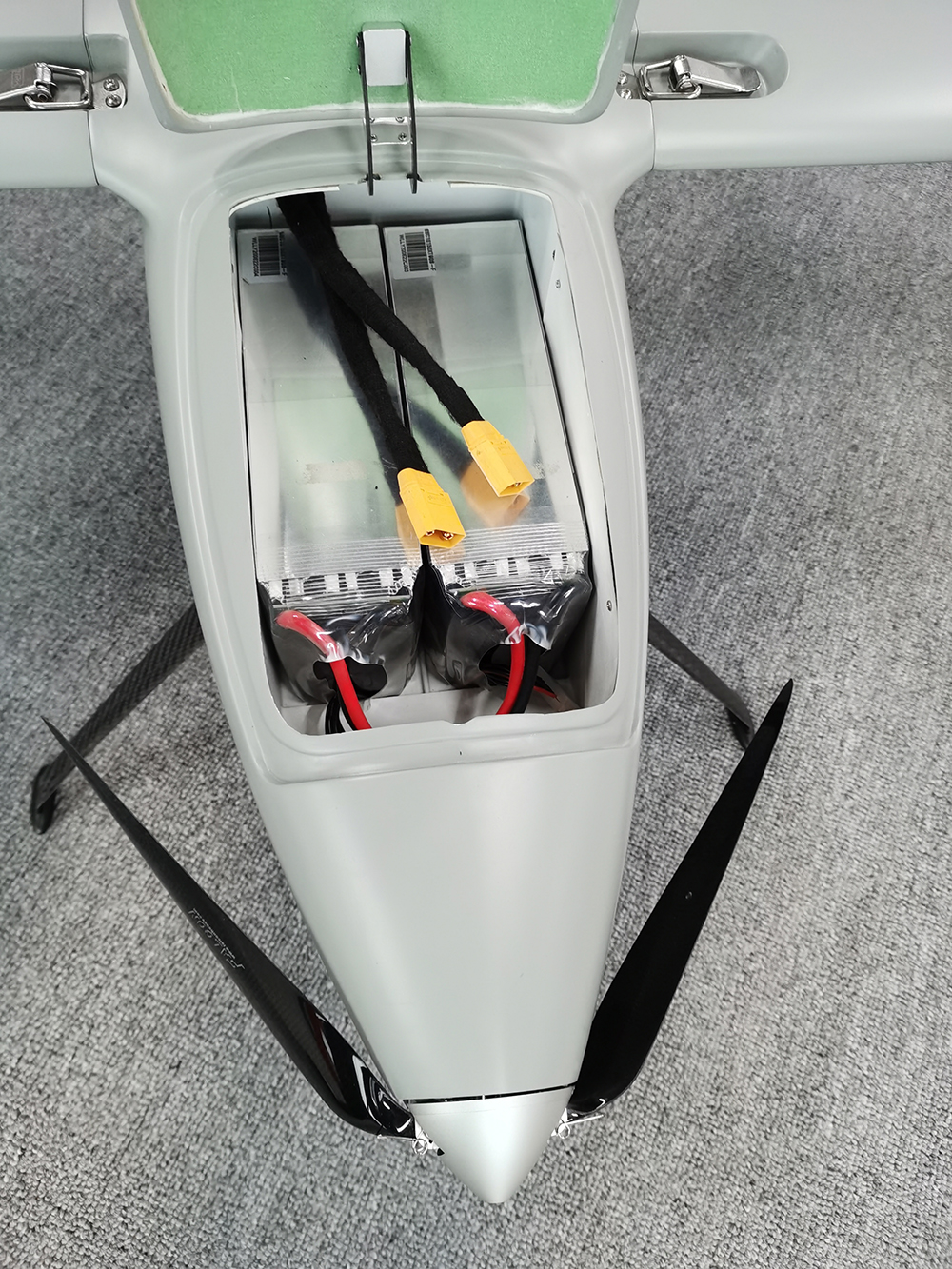

Battery weight (Tattu 2*6S 25000mAh): 5.12kg
Suggested max payload weight : 3kg
Endurance : 3 hours (3kg payload) )
Cruise speed : 75-90km/h
Max speed : 110km/h
Max ascend speed : 4m/s
Max descend speed : 5m/s
Anti-wind capability : 43.2km/h
Minimum circle radius : 100meter
Operating Altitude(Max.) : 4,000m ASL
Your Purchase Includes vtol drones
1 x VTOL fixed-wing airframe

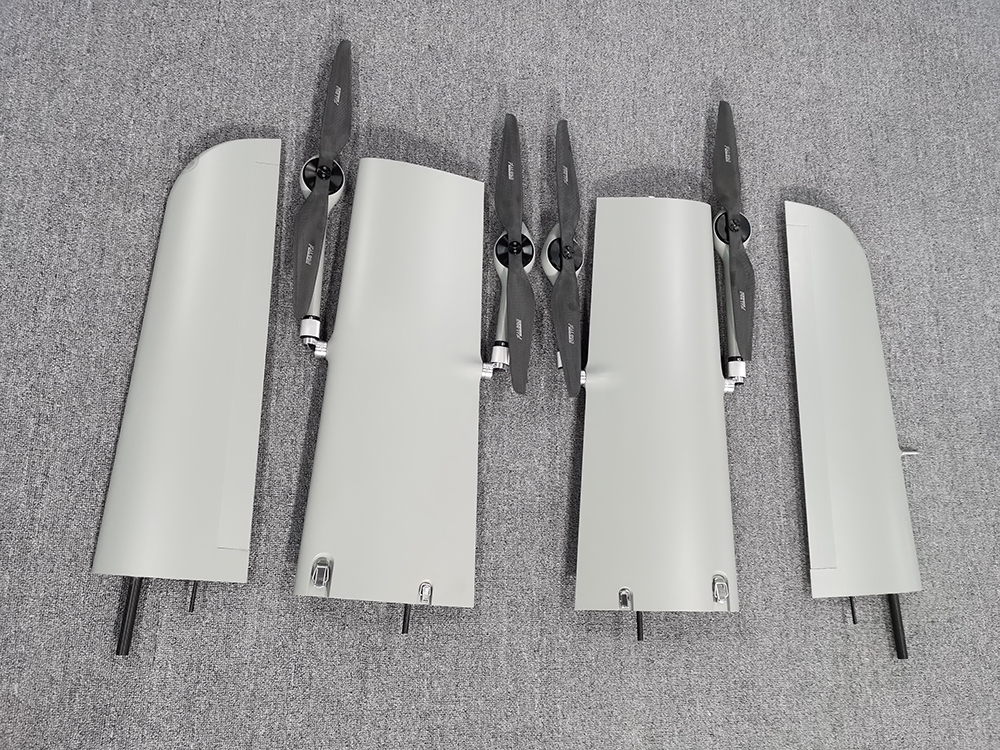

4 x Lift motor
4 x ESC for lift motor
2 x Propeller CW&CCW
1 x ESC for fixed-wing motor
1 x Fixed-wing motor
1 x Propeller CW for fixed-wing motor
4 x Servo
1 x Air Speedometer
1 x Power Module For Flight Controller
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS

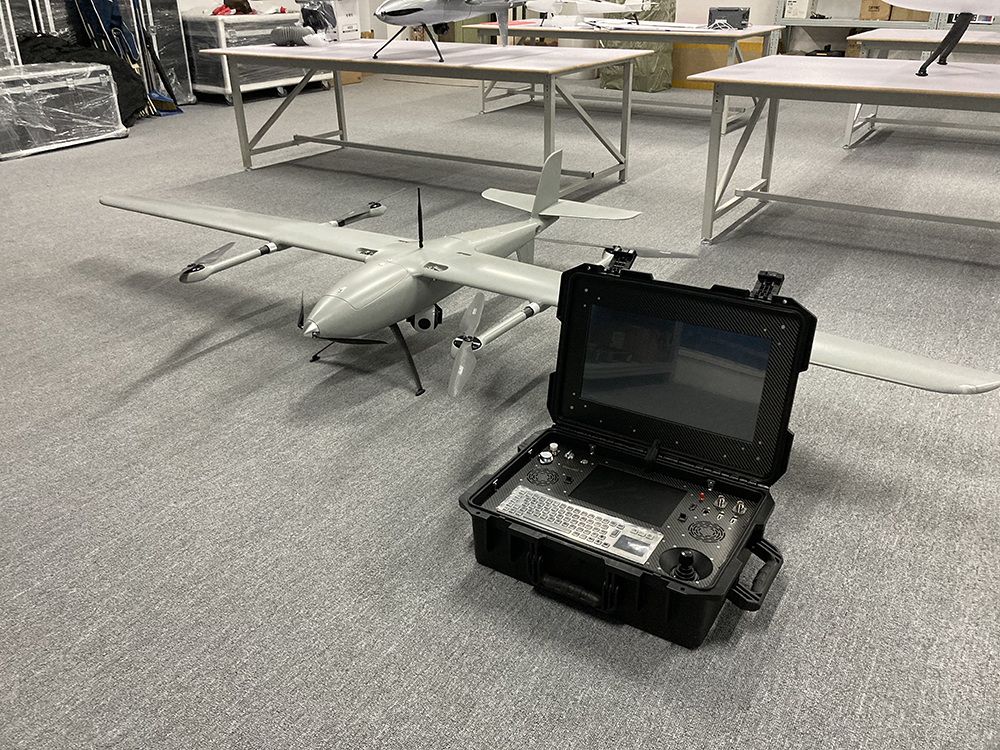

1 x Remote controller
1 x Assembly and Flight Test Service

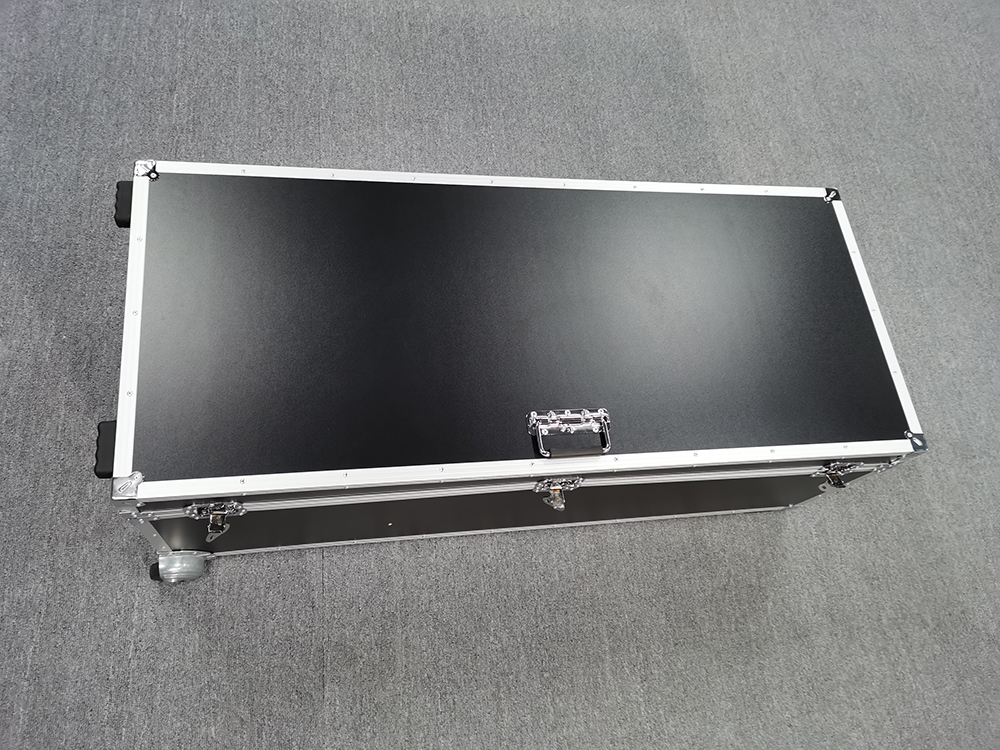

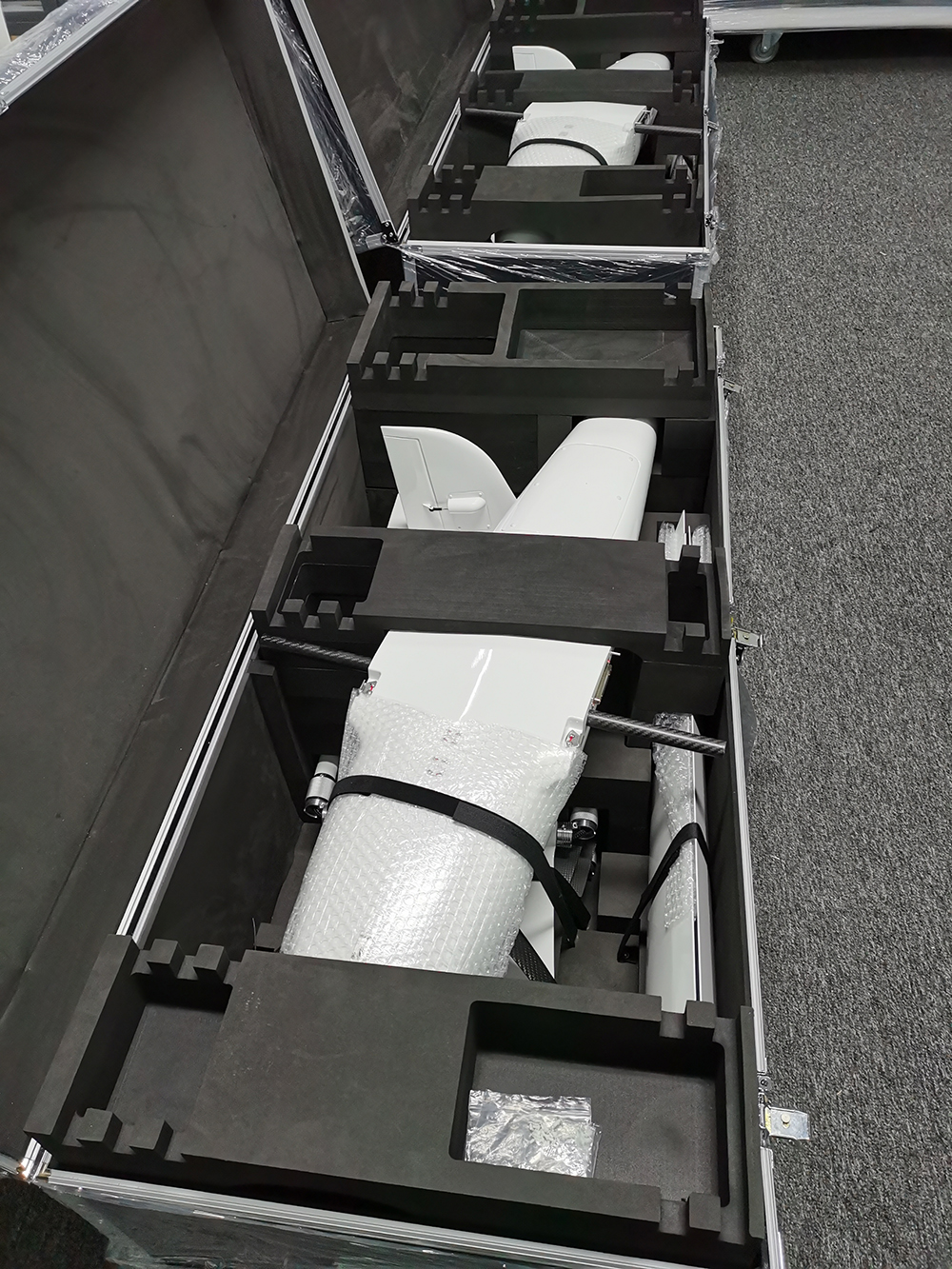

1x Aluminum box
