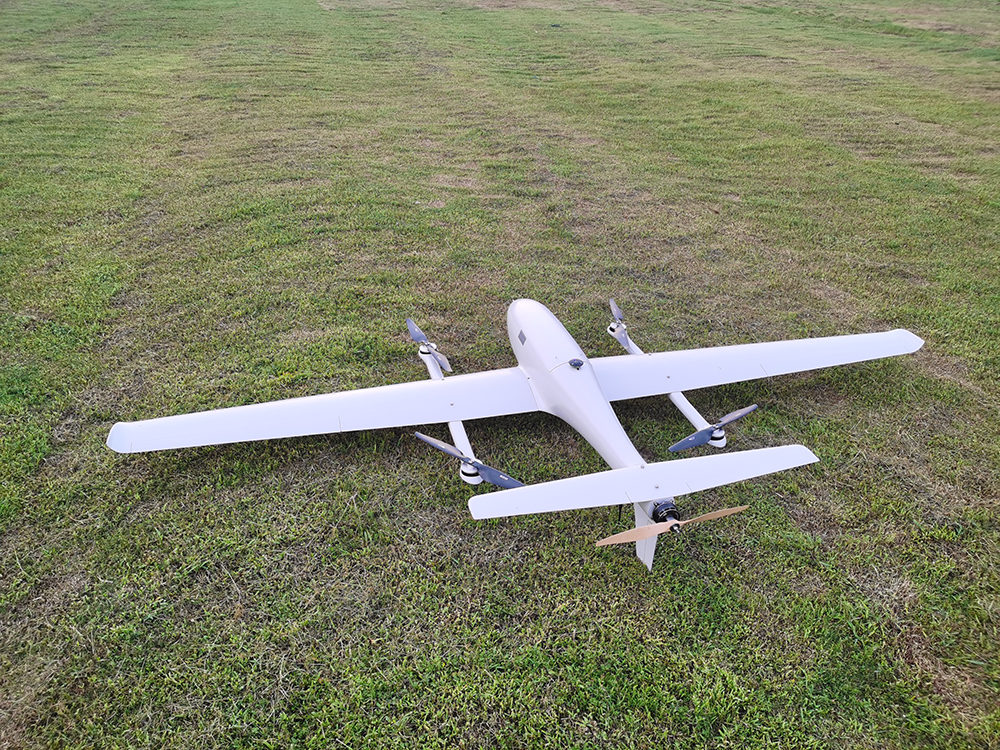

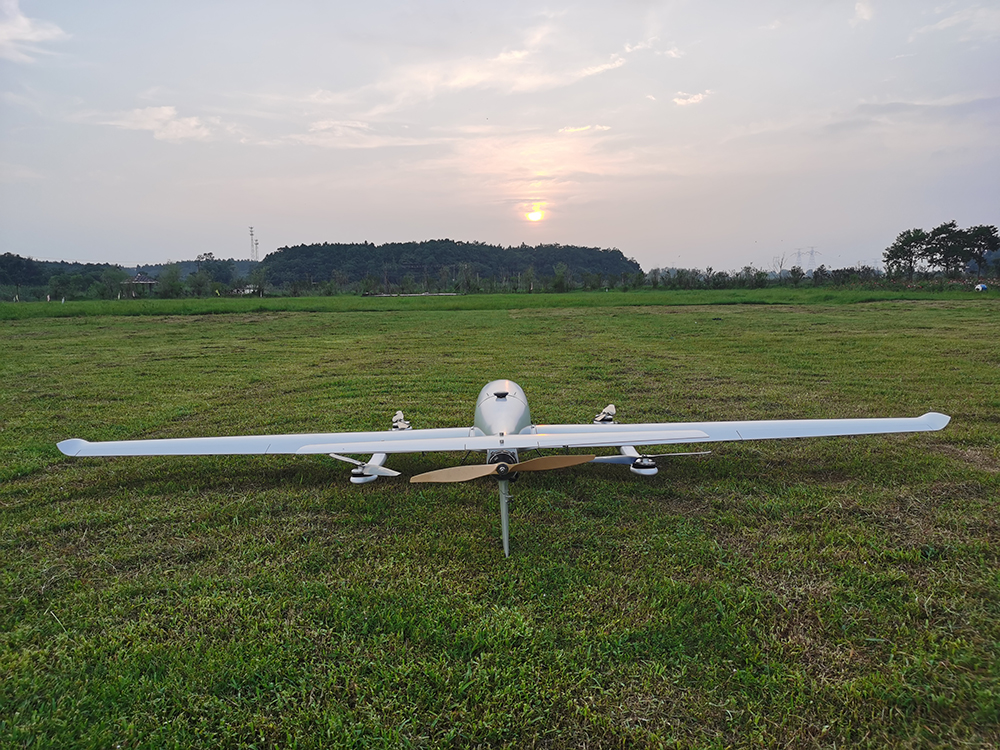

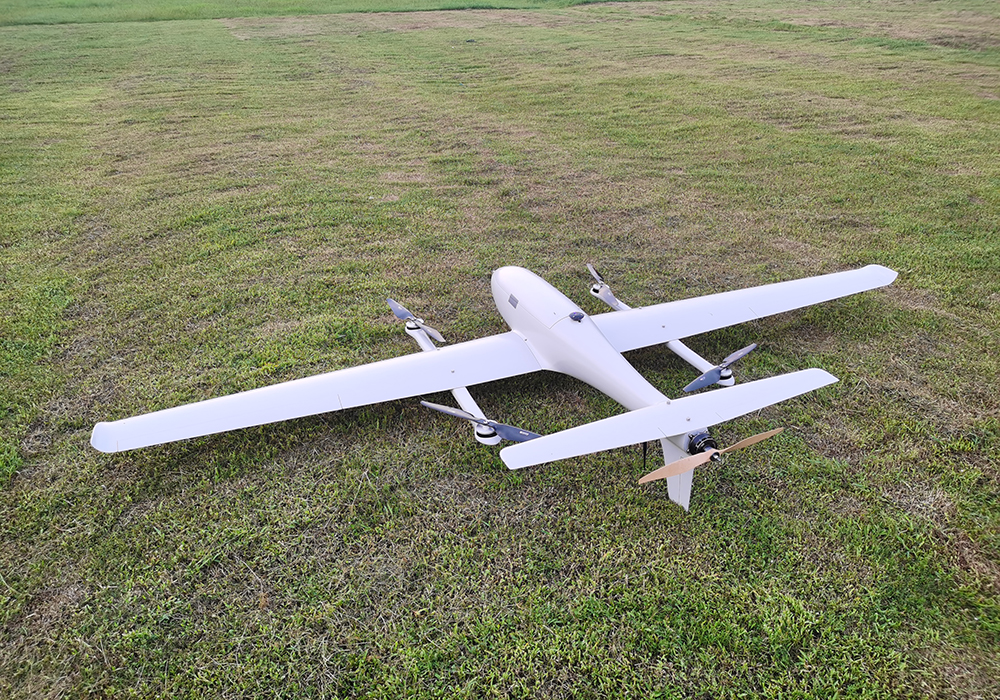

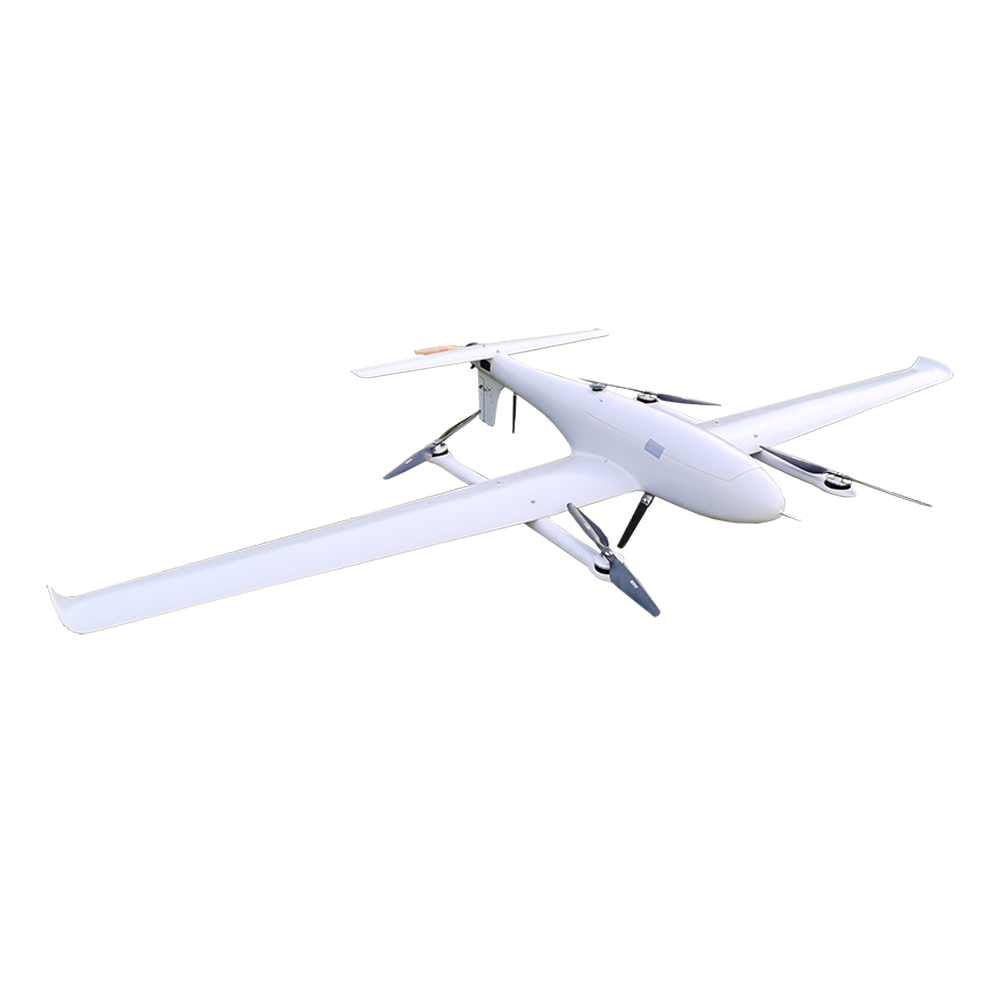

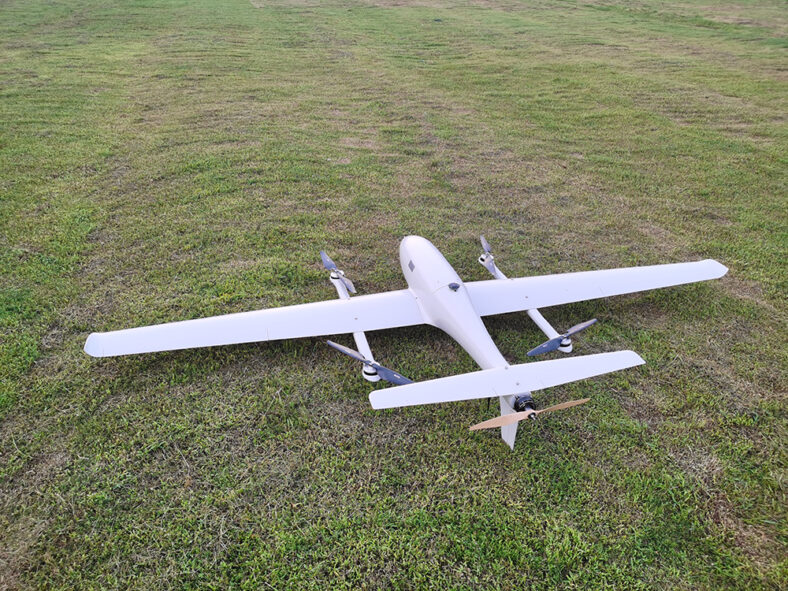

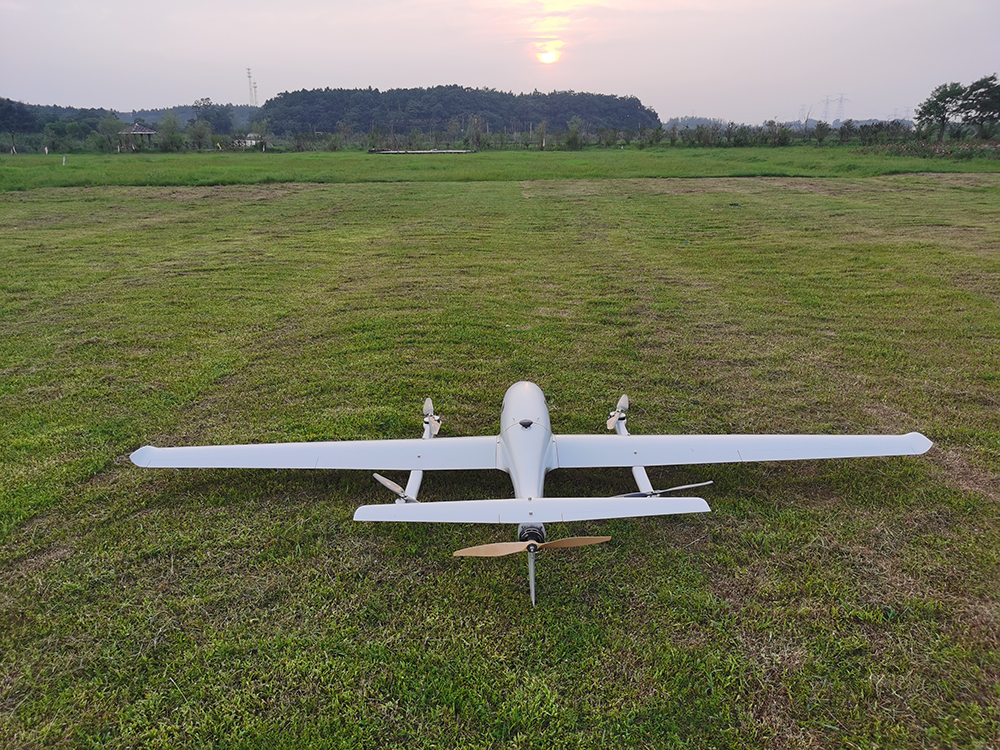

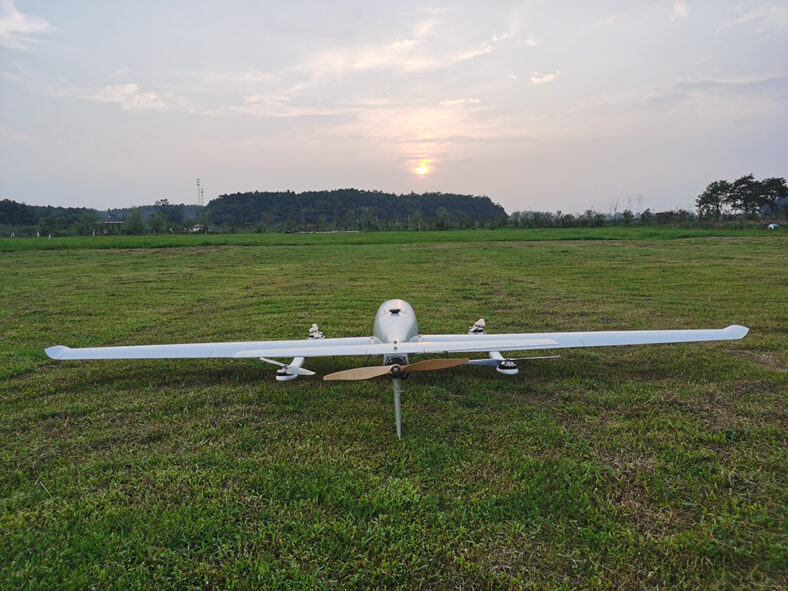

FDG36 VTOL UAV 3 Hours Endurance with 5KG Payload Frame KIT

$5,680.00

Availability: In Stock
Compare
Category: Tag:

Description

FDG36 VTOL UAV  high-speed and long-distance of fixed-wing UAVs and the vertical take-off and landing of rotor-wing drones. It does not require runway but only small space for take-off and landing, and can be operated smoothly on ship deck, narrow airspace, mountain, complex terrain and densely populated areas such as hills, jungles. The whole process of autonomous flight can be completed without operator intervention for cruise, flight state transition and vertical take-off and landing. The equipment compartment is a replaceable hatch cover, and different mounting hole positions can be designed for different load requirements of the user. The fuselage is designed as quick release structure, with reliable electrical connection, plug and play; unfolding and withdrawal time is less than 10 minutes. The engine is rear-mounted and the load is placed forward to provide a larger field of view for the photoelectric load without obstruction.

Technical parameters

Performance / indicator parameters

Body material: carbon fiber, glass fiber, Kevlar, pvc interlayer, etc.

Body length:  1.75 meter

Wingspan:  3.6 meter

Take-off and landing method: vertical take-off and landing

Maximum takeoff weight:  30kg

Maximum payload:  8kg

Endurance time:   3 hours (5KGS payload)

Flight radius:  50-100 km

Minimum circling radius: 200m

Power battery: 4* 30000 Li-ion battery

Maximum control distance Remote control (manual control): 1km

Ground station control (depending on the distance of the digital transmission): Standard 30km

Cruising speed : 80-95km/h

Lift limit: 4000m

Maximum wind resistance: 12m/s (6 winds)

Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)

Use environment:  -10 ° C +45 ° C; anti-light rain



Recommended Set-up:

4 x T-motor MN705 Motors
4 x T-motor  80A ESC
2 x P24*7.8 Propeller CW&CCW
1 x T-motor AT115A  ESC
1 x T-motor AT7125
1 x APC 19″ Propeller CW
4 x KST FZ320  servo
1 x PX4 Air Speedometer
1 x Power Module For Pixhawk 2.1
1 x Pixhawk 2.1 Standard Set with Here 3 GNSS
4 x 6S 30000mAh Li-Ion battery

NOTE: THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!



VTOL frame KIT   VTOL frame KIT
