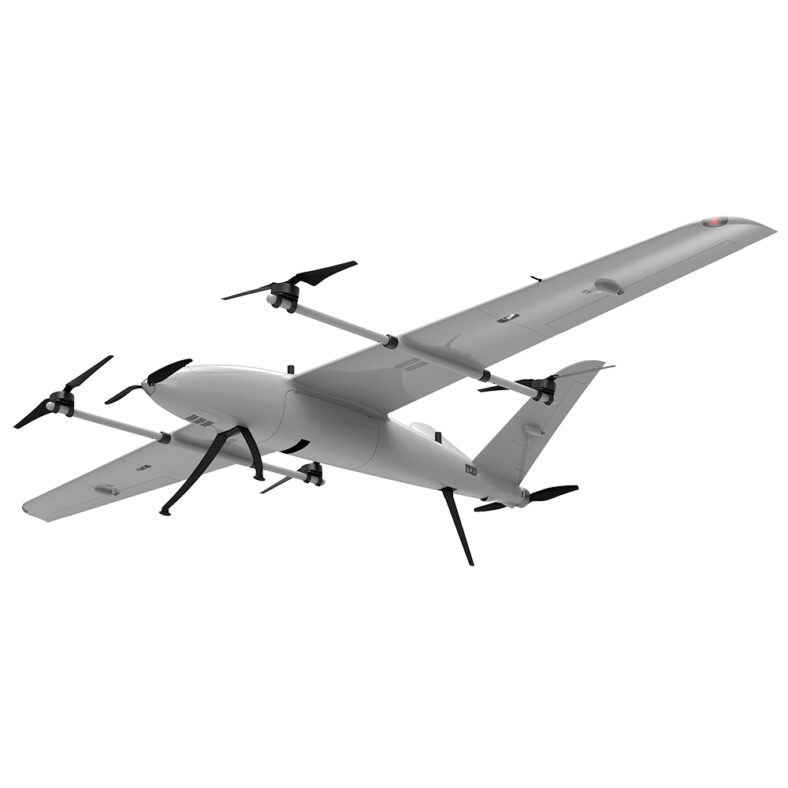

FDG410 Electric VTOL UAV 10KG Payload Lidar carry capacity for aerial mapping or medicine delivery

$18,600.00

Availability: In Stock
Compare
Category: Tag:

Description

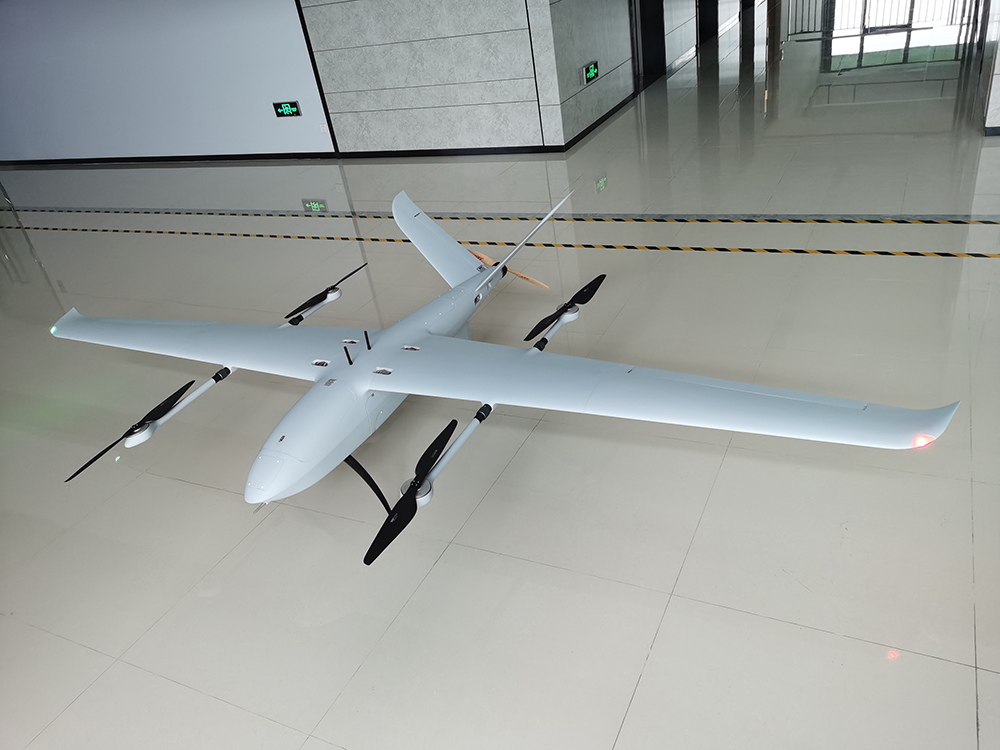

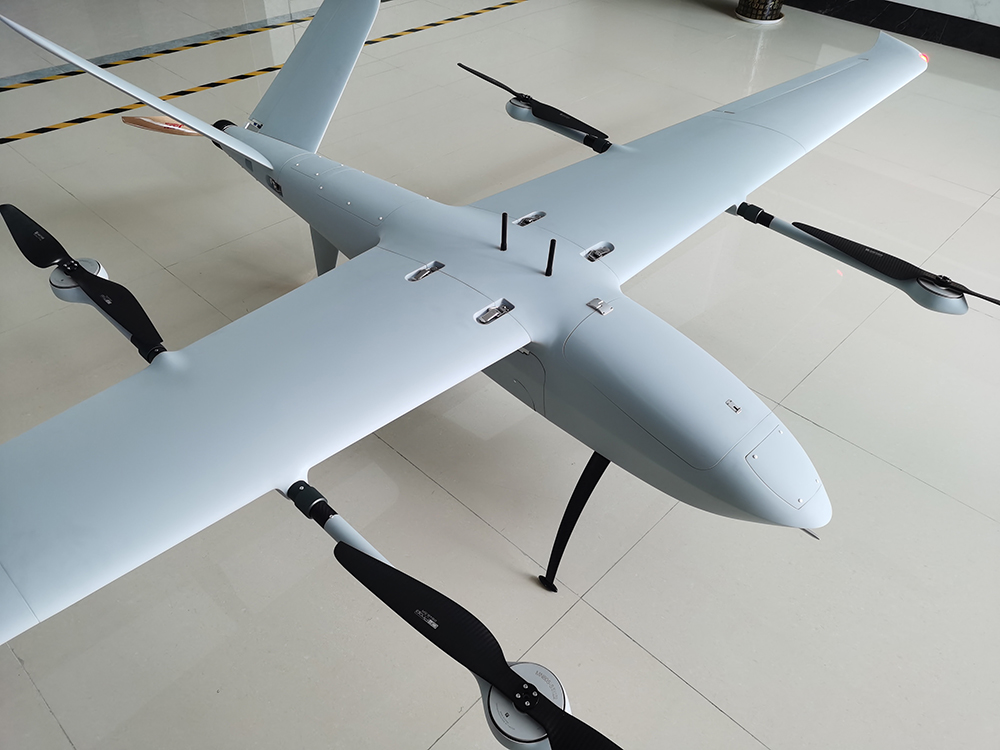

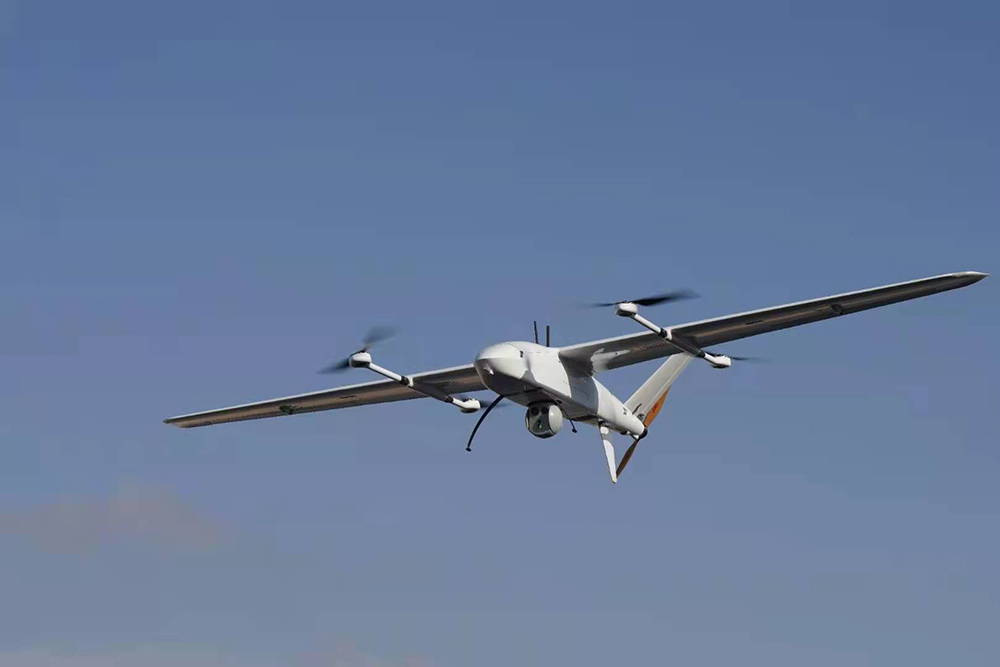

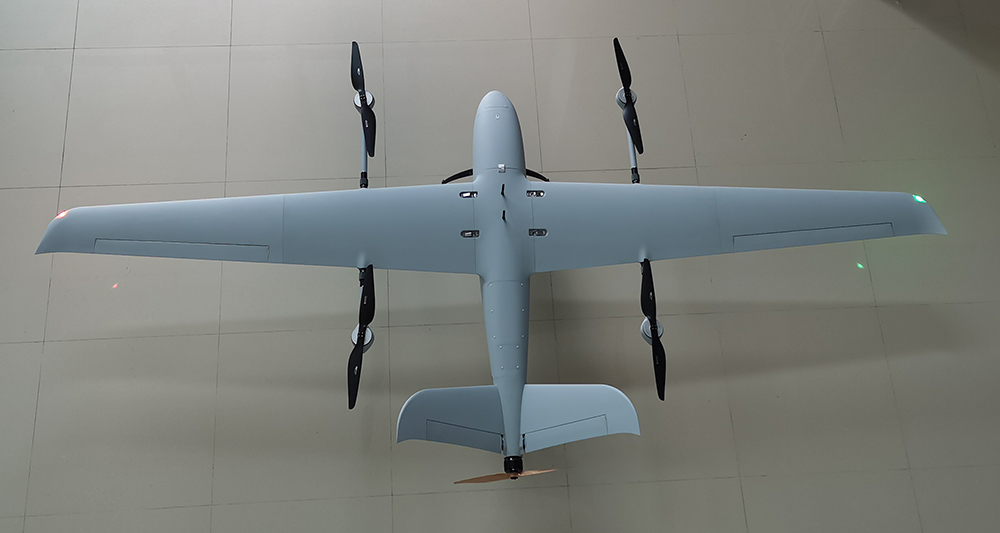

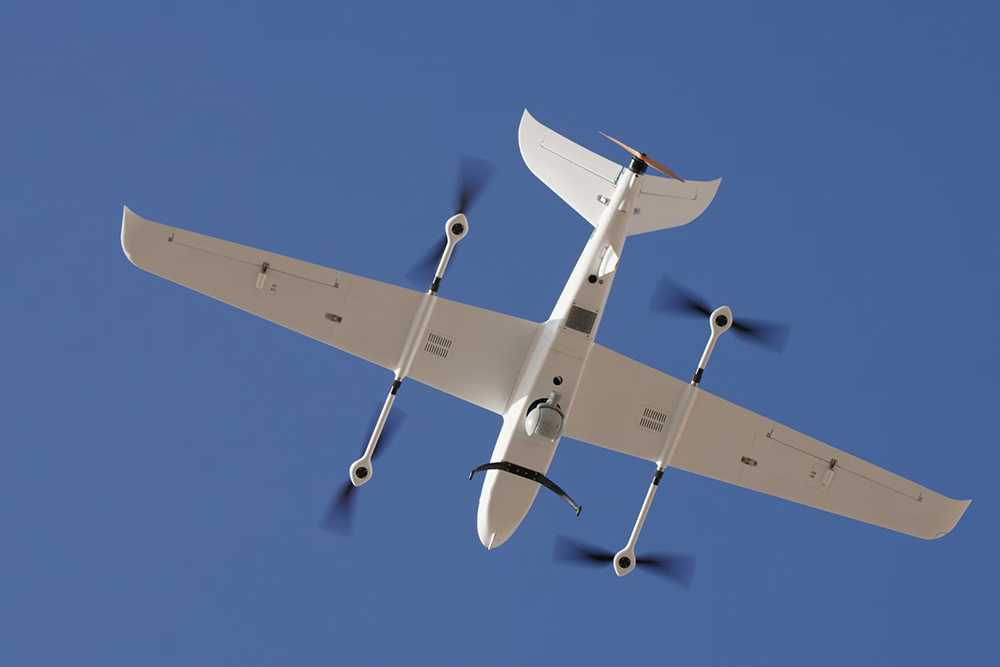

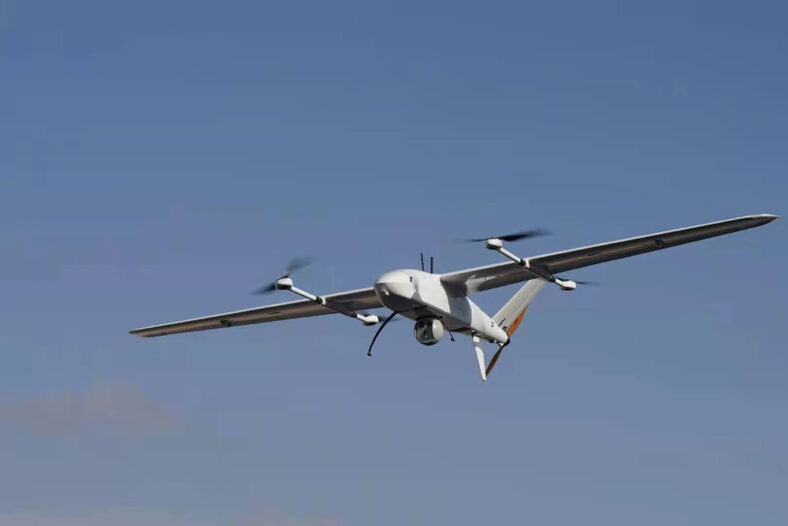

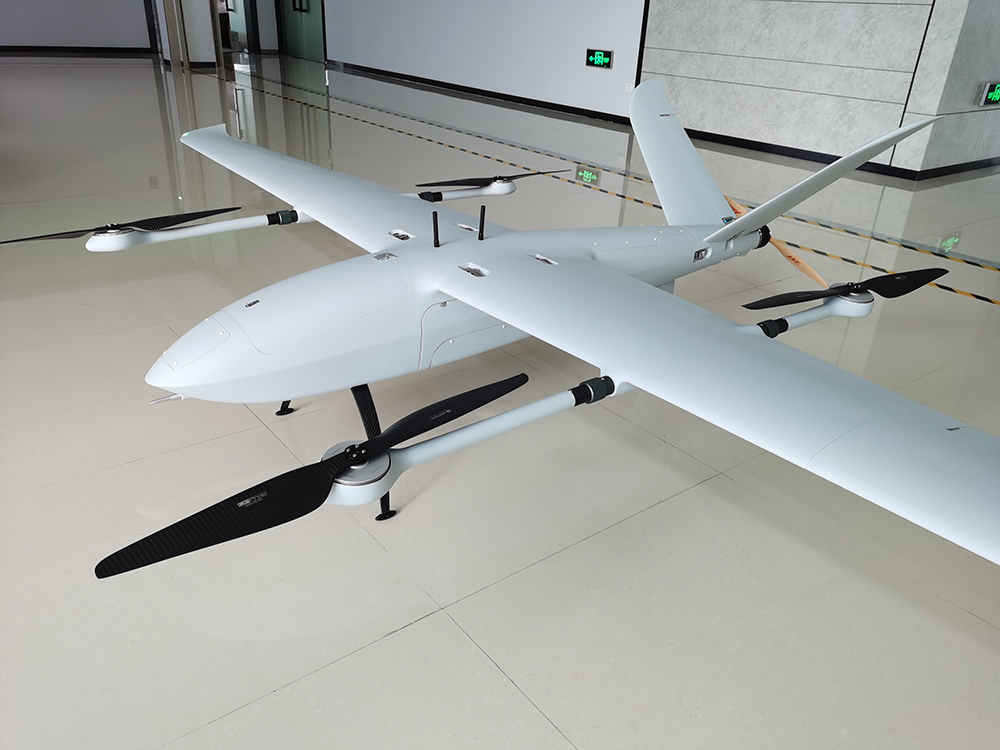

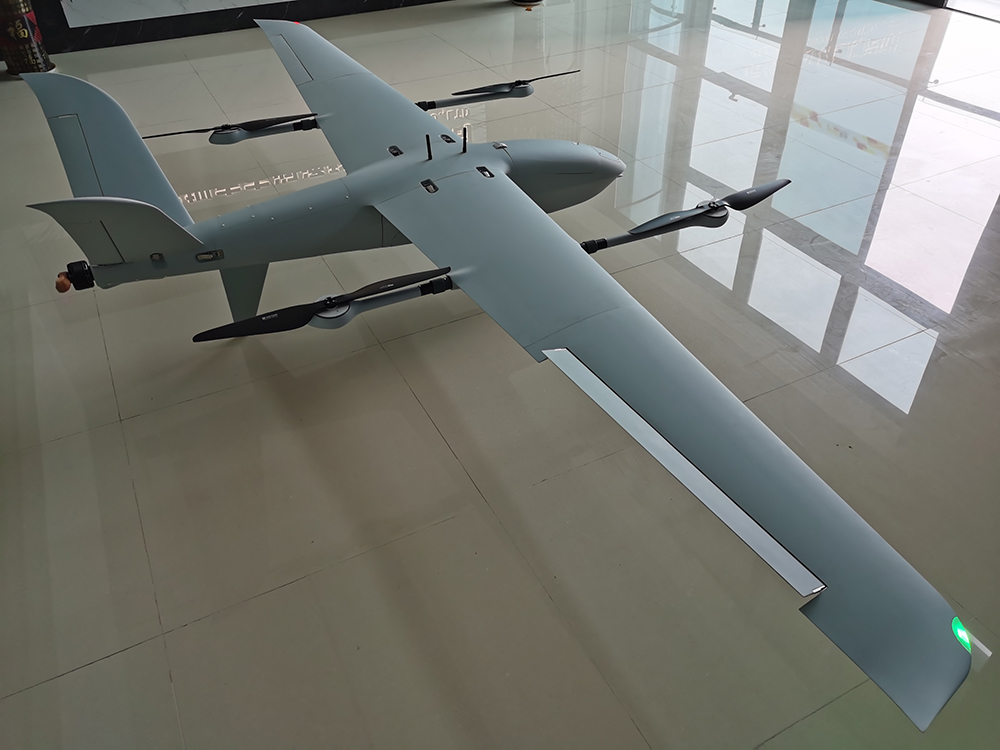

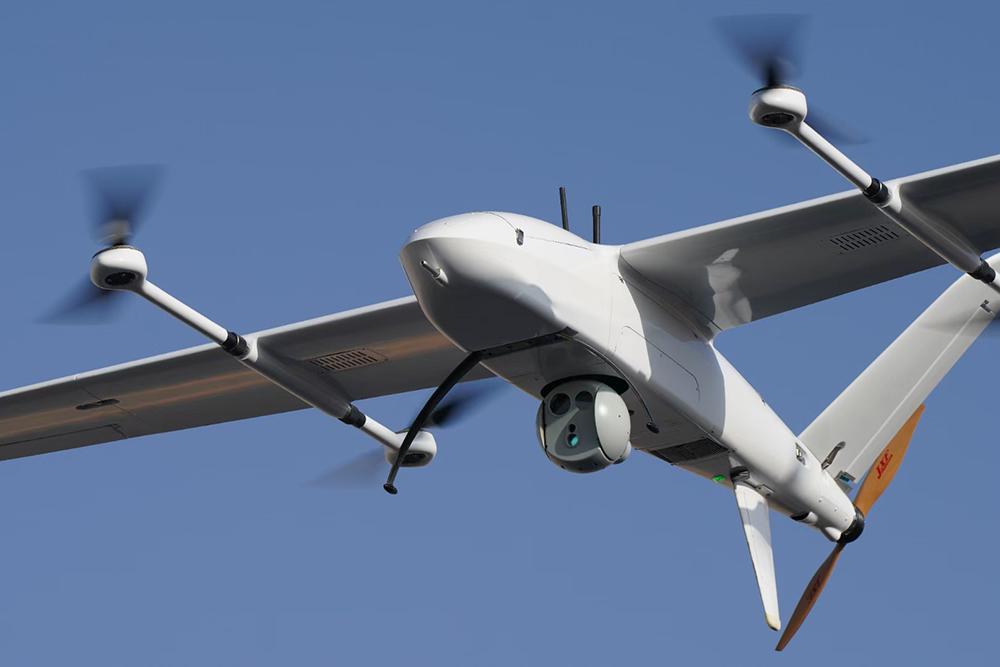

FDG410 electric VTOL drone is a pure electric VTOL Fixed-wing UAV with the features of long endurance, high reliability, large climb rate, long control distance, convenient maintenance, and it’s easy to deal with the flight in high drop terrain. It is specially developed for LiDAR mapping, long-range cargo delivery & transport and security & surveillance. It comes with four lift motors and one fixed-wing motor, which will allow the fixed-wing VTOL to ascend like a quadcopter. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing. It’s mainly used for environment monitoring, power/oil pipeline patrol, railway patrol, surveying and mapping, border patrol, forest fire prevention etc. It can be equipped with 30X zoom dual optical pod system which is high-precision stabilized and reduce the difficulty of locking and tracking for moving targets, and complete the tasks efficiently in the application of inspection and tracking. FDG410 electric VTOL drone can fly 3.5 hours with 2kg payload, 2 hours with 6kg payload and 90 minutes with 10kg payload.

Design Features
(1) Long distance image transmission: 30km control radius, 1080P high definition image transmission.
(2) 50 million camera pixels, guarantee the aerial survey data quality.
(3) RTK location technology, centimeter-level exterior line elements.
(4) Fully automatic driving, convenient system operation.
(5) Smooth flight, resistant to complex climates, high quality aerial photography.
(6) Multiple landing mode, free from site restrictions.
(7) Without time limit, using visible light camera at daytime for the surveillance, using infrared camera to monitor target thermal signal at night.
(8) Mature product, stable performance, hundreds of sorties successful flying mission.
(9) High reliability (equipped with dual engine)
(10) Intelligent control (throttle output makes the start and stop automatically)
(11) Low current distribution (Dual engine avoid overheat protection of motor and ESC from continuous climbing)

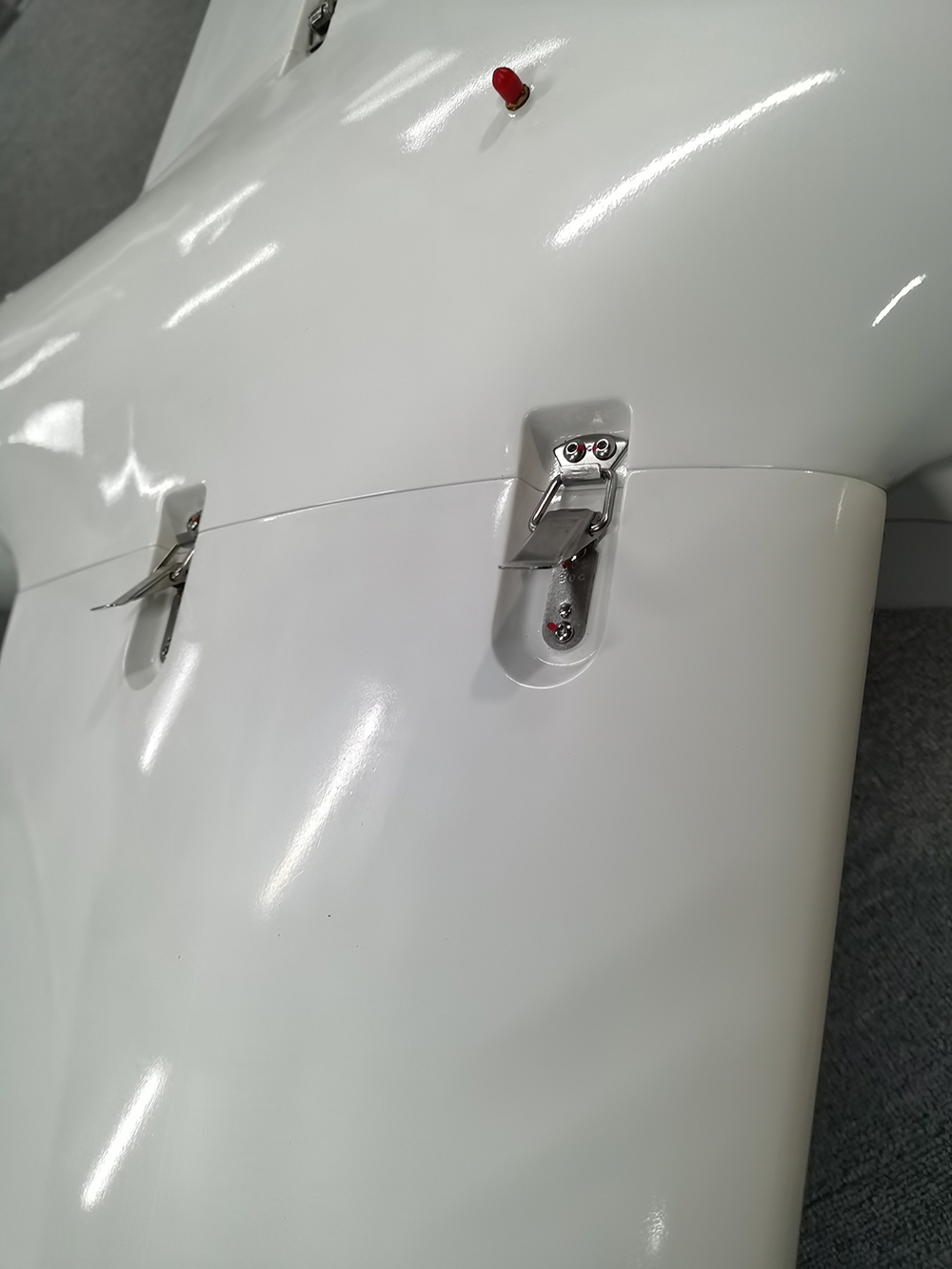

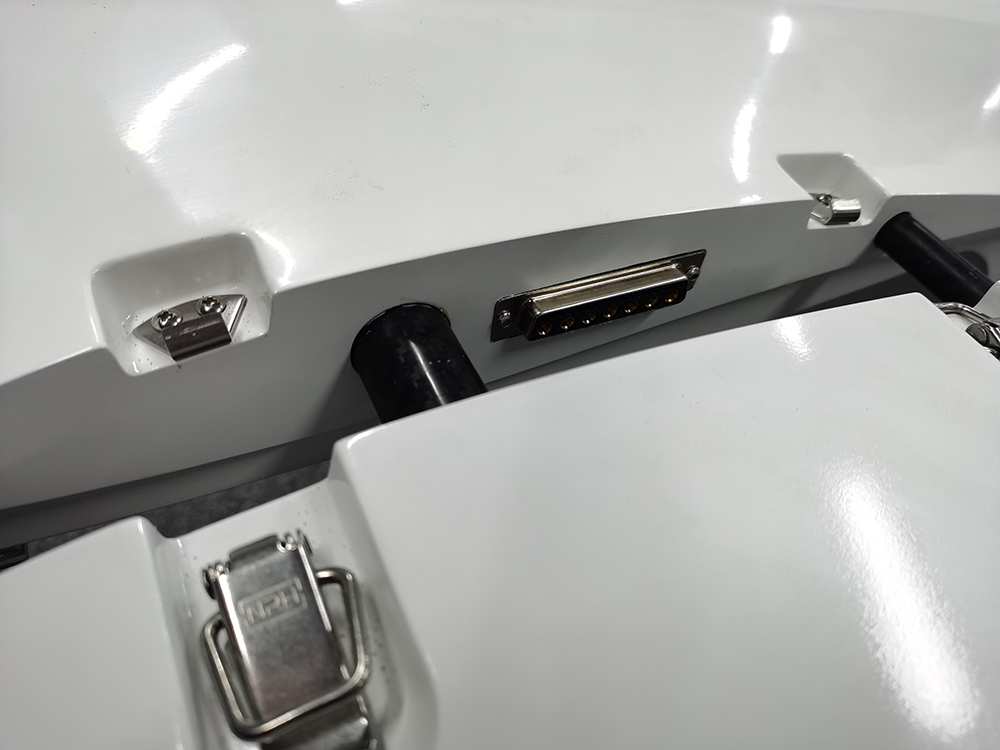

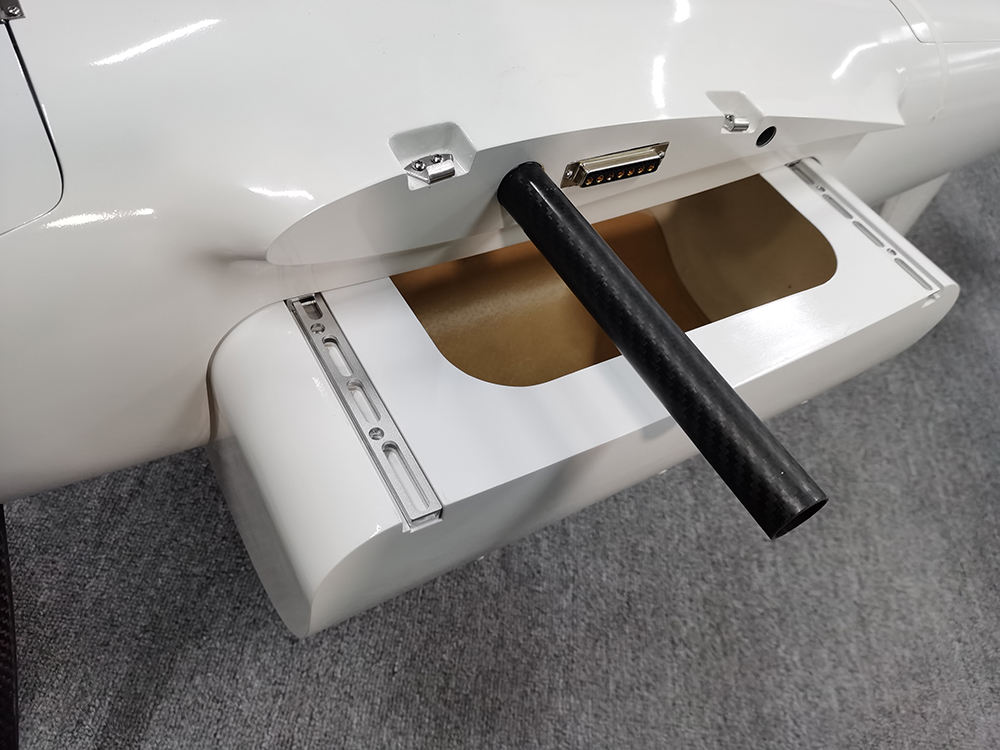

(12) Large payload cabin (The size of independent detachable payload cabin is 450*250*160mm)

Technical Specification of FDG410 vtol drones

MTOW 34kg
Weight without battery and payload 16kg

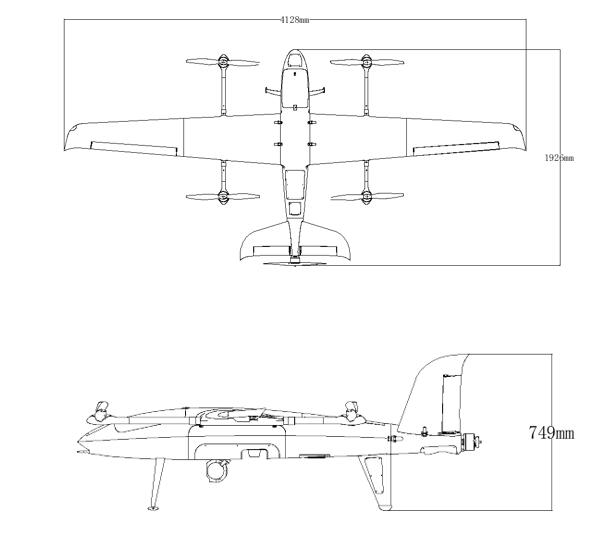

Wingspan 4,128mm
Length 1,920mm
Height 750mm
Frame weight 7.45kg
Max payload (battery included) 17.7kg
Battery weight (Tattu 6S 32000mAh) 7.2kg
Suggested max payload weight 10kg
Endurance 3.5 hours (2kg payload) / 2 hours (6kg payload) / 90min (10kg payload)
Cruise speed 75-90km/h
Max speed 120km/h
Stall speed 57.6km/h
Max ascend speed 14.4km/h
Max descend speed 18km/h
Anti-wind capability 43.2km/h

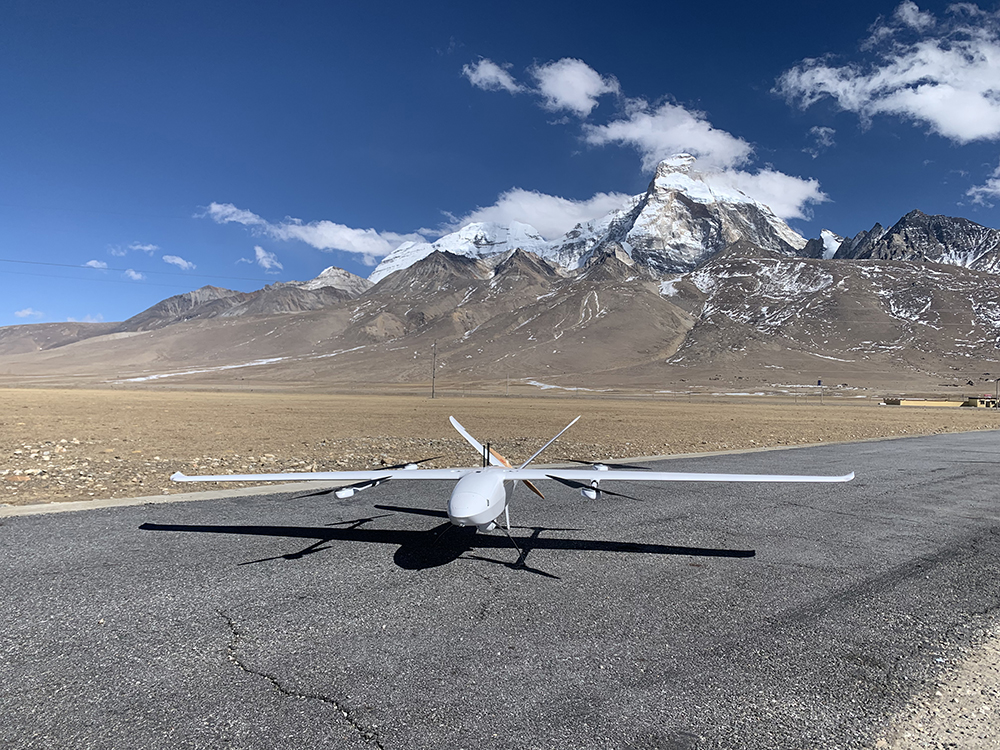

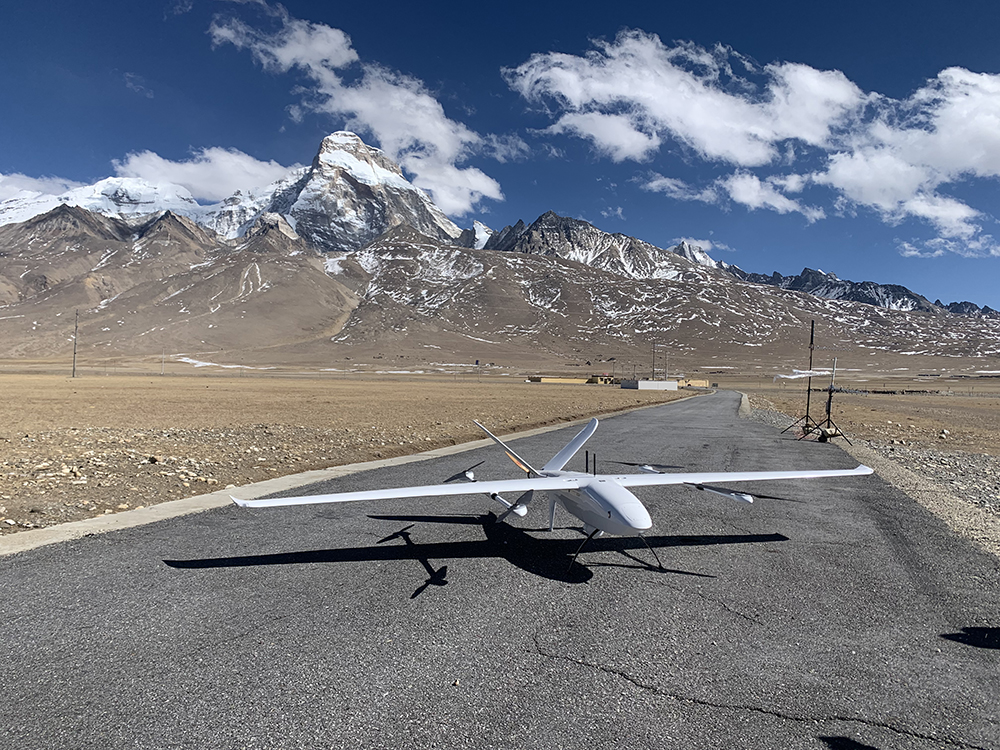

Operating Altitude(Max.) 4,500m ASL

Your Purchase Includes:

1 x VTOL fixed-wing airframe
4 x Lift motor
4 x ESC for lift motr
2 x 26 inch CF Propeller CW&CCW
1 x ESC for fixed-wing motor
1 x Fixed-wing motor
1 x 22 inch CF Propeller CW for fixed-wing motor
4 x Servo
1 x Air Speedometer
1 x Power Module For Flight Controller
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS
1 x Remote controller
1 x Assembly and Flight Test Service

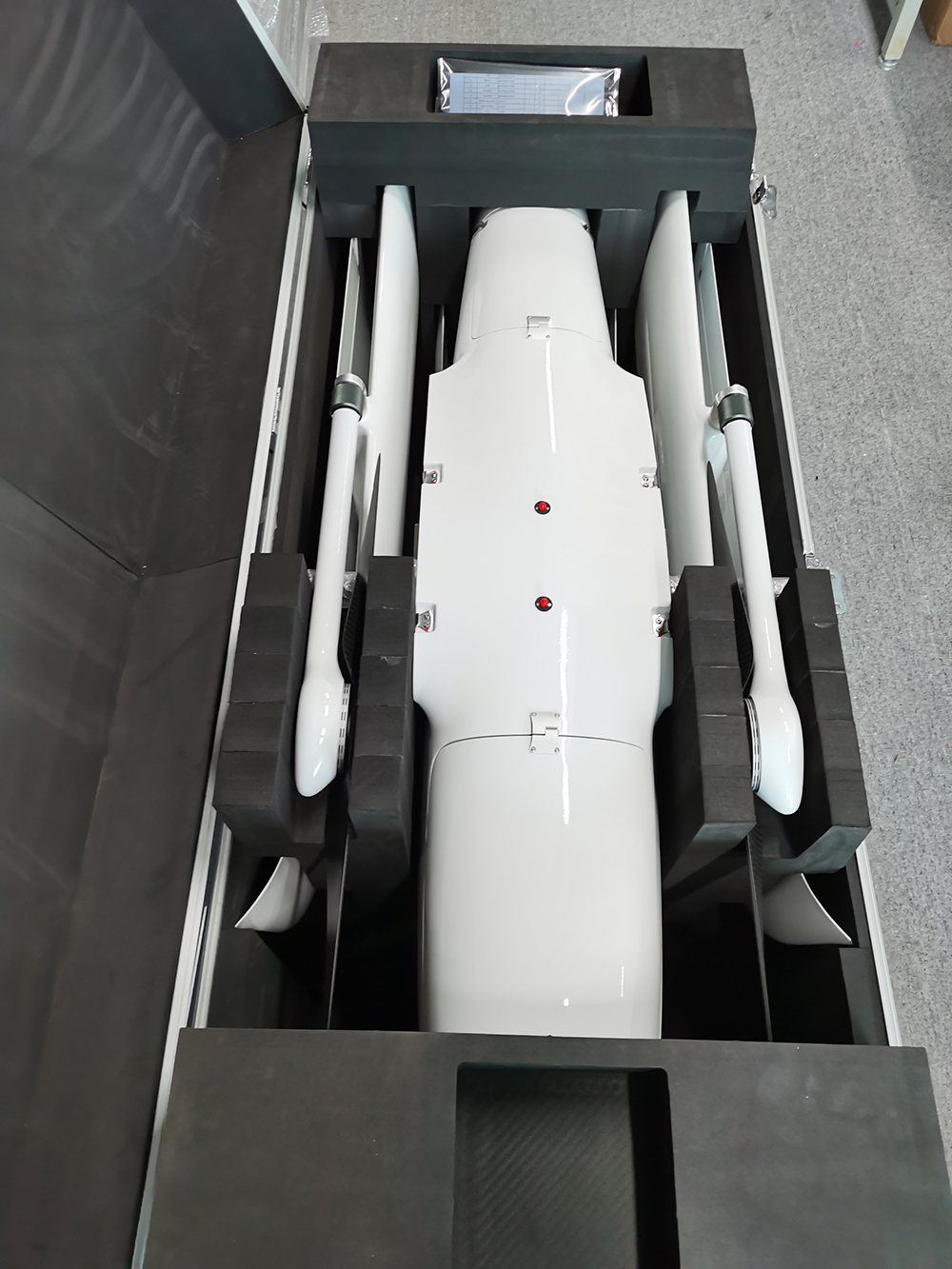

2 x Aluminum box
