Description

Specifications:

Box

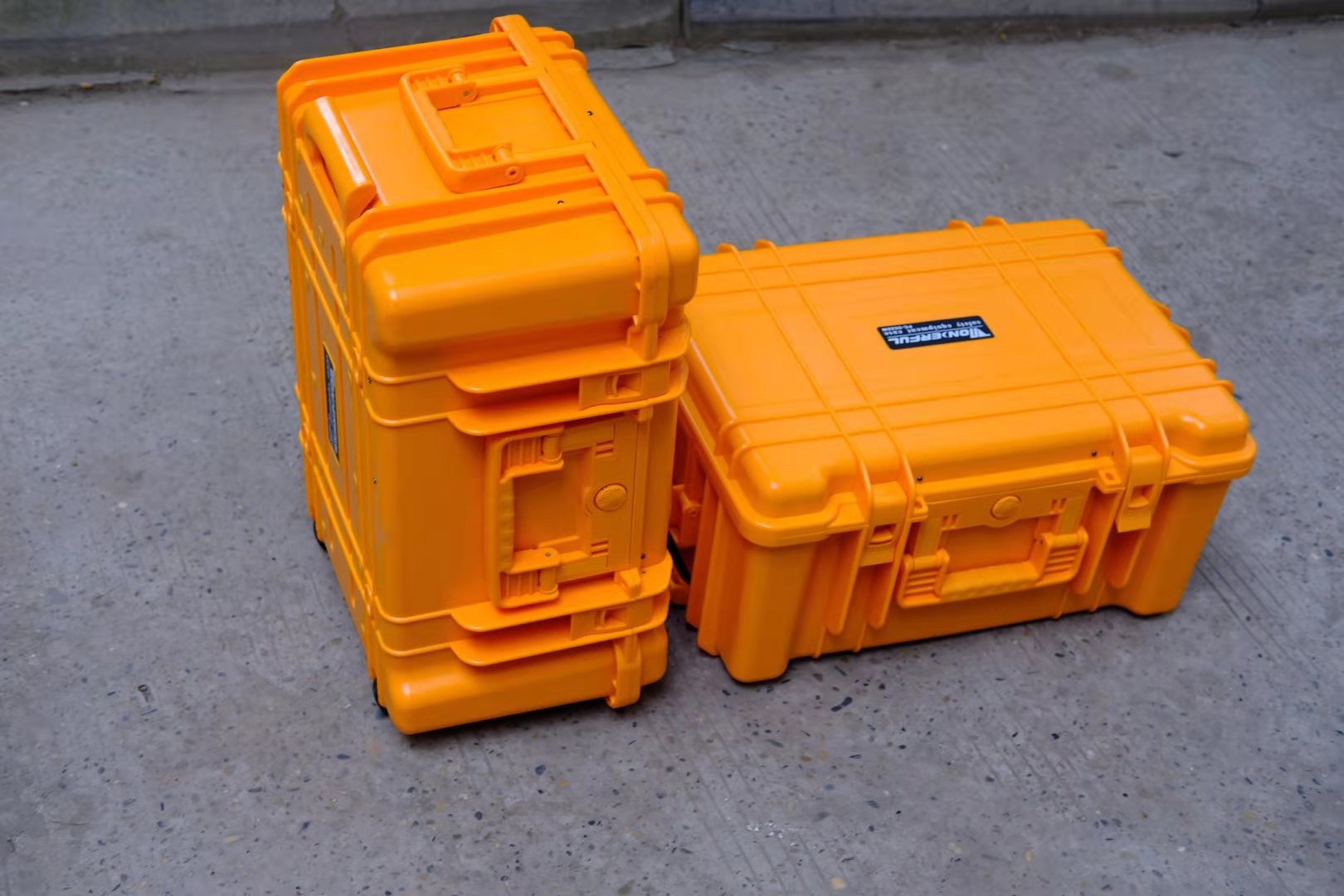

Color: black, orange, etc. color optional
Material: ABS polymer material
Outer dimensions: length 600mm*width 440mm*height 285mm
Weight of the whole machine: about 14KG

Waterproof, moistureproof and dustproof after closing the cover. With pulleys and pull rods.
Processor: Intel I5/I7 , dual HDMI version industrial computer

Data&video transmission: not including
Remote control: not including

Monitor

Type: Sharp industrial control LCD screen
Size: 21.5-inch upper screen, 15.6-inch lower screen with capacitive touch
Display resolution: 1920*1080
Display ratio: 16:9
Backlight brightness: 1500cd/m2
Others: automatic brightness adjustment, HDMI input.

Battery

Type: polymer lithium battery 4W capacity
Working voltage: 9.5-12.6V
Maximum power: 80W
Effective charging times: 800 cycles
Battery life: about 4-6 hours
Others: with control board, overcharge, over-discharge, over-current and power-off protection.

Other

3K carbon fiber panel;
Support HDMI video input and output
With system voltage display function;
With cooling fan;
wireless keypad free
