Description

Functions

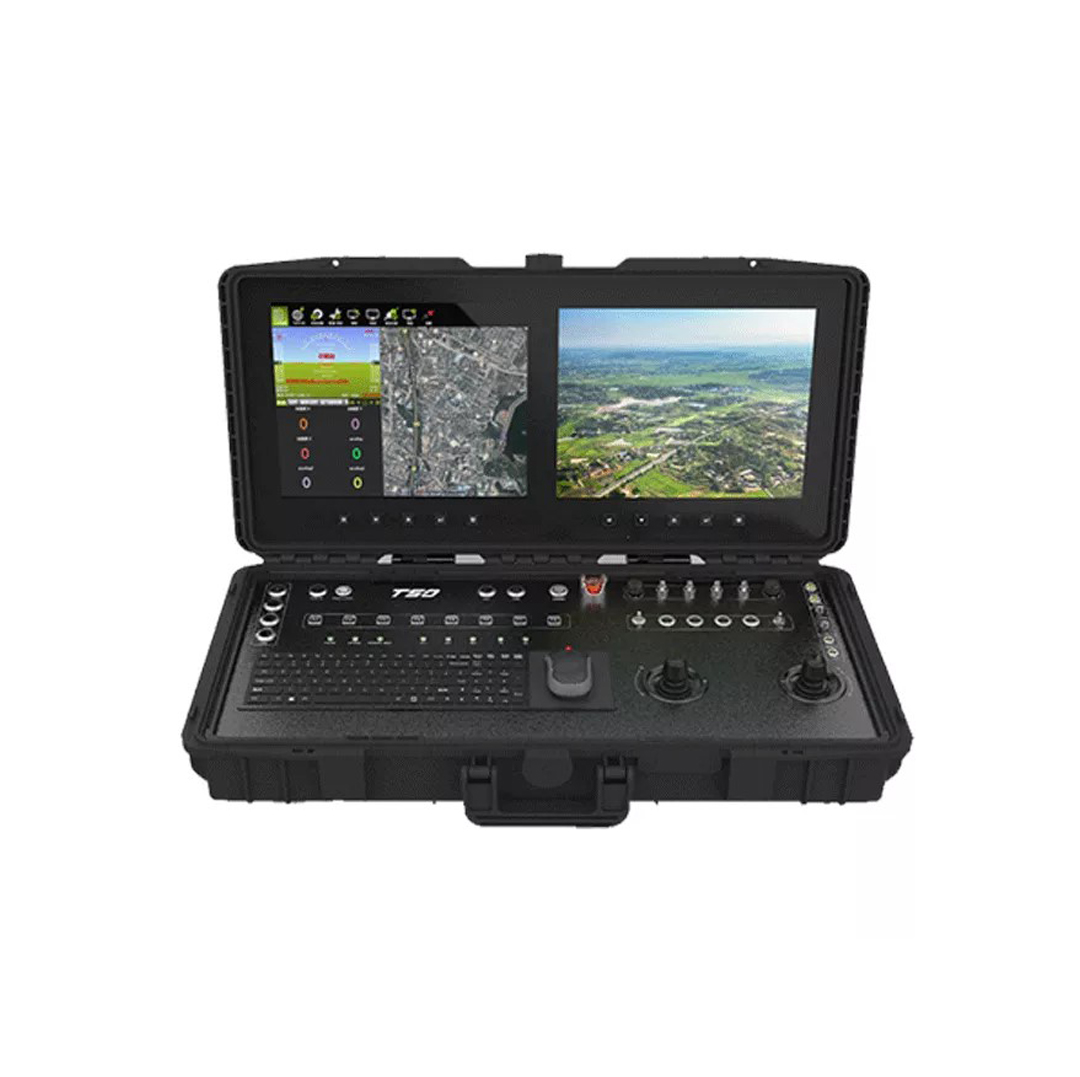

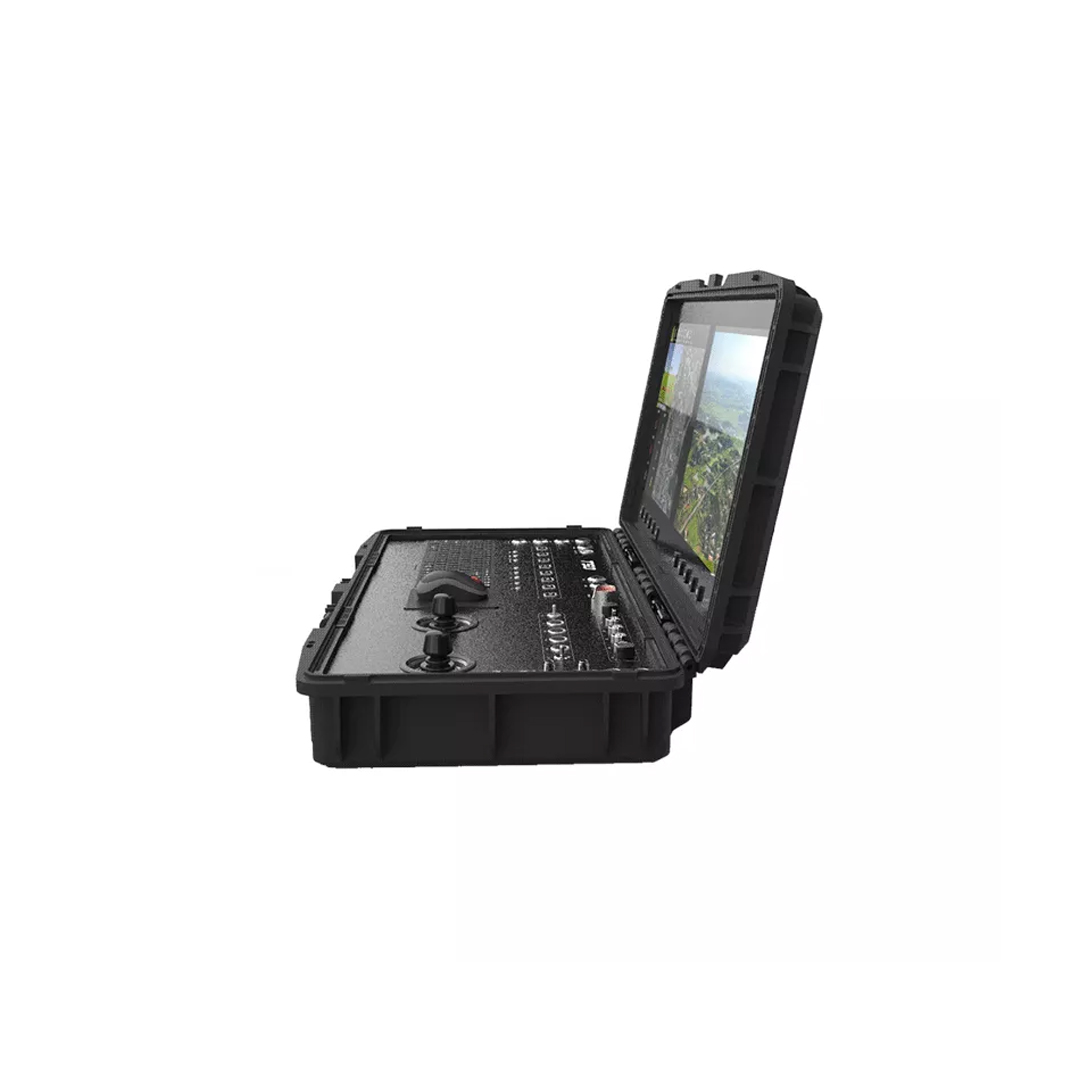

Dual 17″ HD touch screen
Built-in I712 core CPU
Telescopic Master Remote Pole
Provides 26 editing channels
Up to 150KM link
Sufficient space for built-in friendly links
Highly integrated integration
Flat design, low delay, long distance, strong anti-interference ability

Specifications:

Weight:  15000g
Size:  850mm(L)x425mm(W)x160mm(H)
Display:  17 inches 1280*10241000 brightness x2
CPU:  Intel i712650U
Touchpad:  10-finger capacitive touch screen
Operating system:  Windows 10/Linux
Memory:  32G
Mobile hard disk:  1T
Network:  WIFI 6/A X 211 network card, Bluetooth 5.2
Interface:  HDMI in\USB 3.0\LAN\Type-c
Remote control system:  industrial-grade telescopic Hall rocker*2
Physical channel:
Buttons*12
Emergency stop*1
Knob*2
Three-position switch*6
Human-machine interface:  USB HID
Remote control function:  Dual SBUS independent outputs can control the drone and its payload simultaneously
Single-wire bus port:  USB IN*1SBUSOUT* 2
Remote control delay:  40ms
Battery capacity:  DC 25.2V/30000mAh, can be powered by external power supply
Working time:  3 hours of battery life when fully charged
Charging interface:  aviation plug adapter, DC-25.2V
Communication link:  Customized 5-150KM available
Third-party communication link:  support
