Description
Introduction

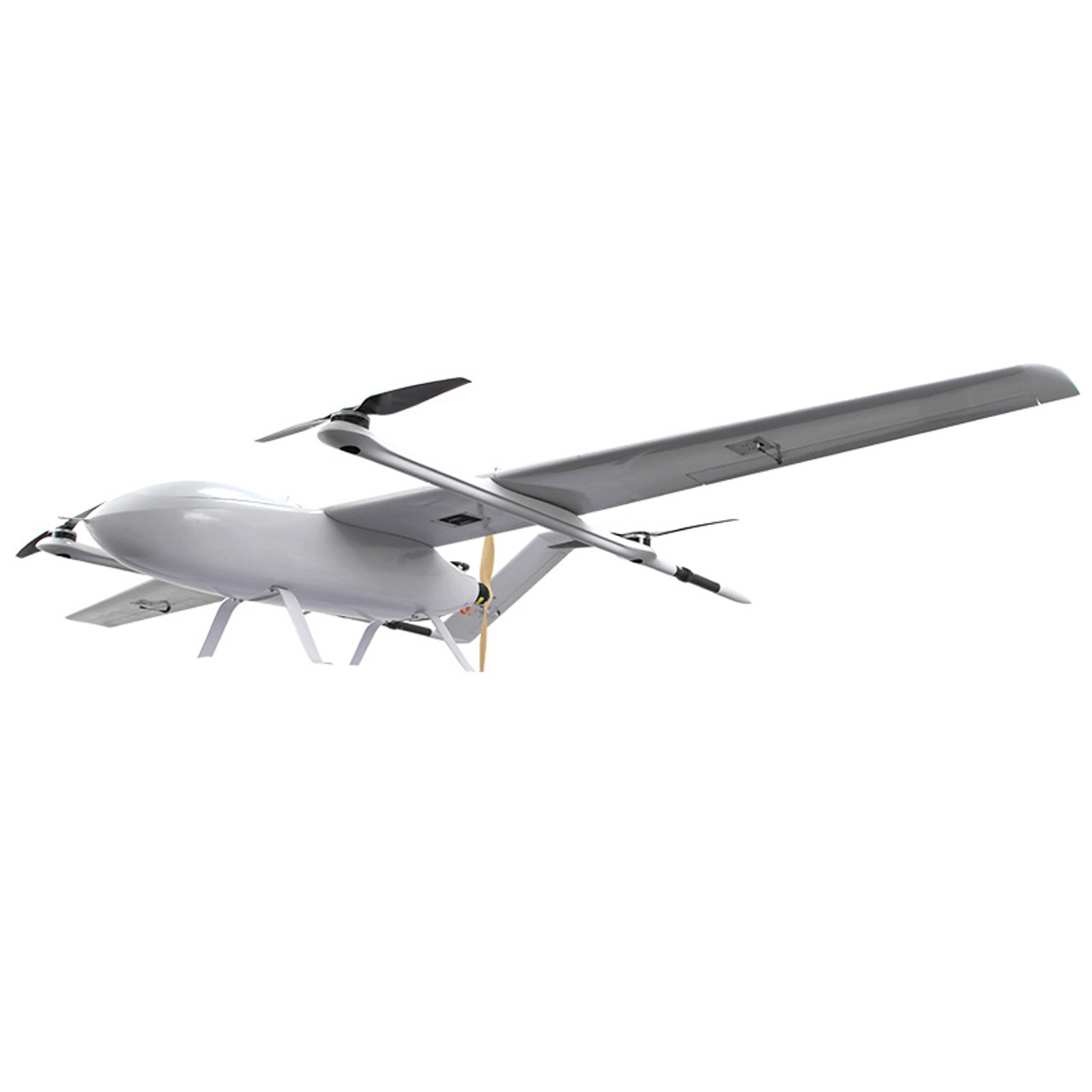

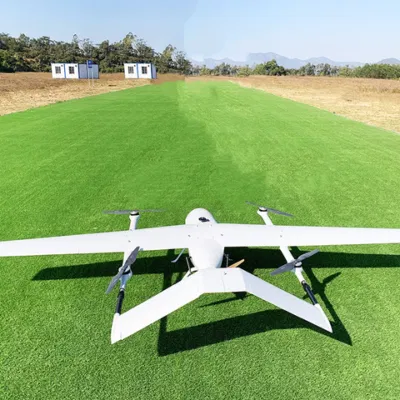

FW-320 is a reliable and affordable VTOL fixed-wing plane designed for long-range inspection, survey, aerial photography, agriculture, search and rescue and public safety applications. As a fixed-wing UAV with VTOL and hover capabilities, the FW-320 features a modular airframe that can be set up in less than 10 minutes, does not require runway or catapult to get airborne. Once in the air, the aircraft transitions to horizontal flight as a push-prop fixed-wing.
Specification
| MTOW | 23kg |
| Weight w/o battery and payload | 9.76kg |
| Wingspan | 3200 mm |
| Length | 1,200 mm |
| Height | 500 mm |
| Frame weight | 3.2kg |
| Max payload (battery included) | 13.24kg |
| Battery weight (Tattu 6S 32000mAh) | 7.2kg |
| Suggested payload weight | 5kg |
| Endurance(23kg take-off weight) | 2.5 hours |
| Cruise speed | 78-90km/h |
| Max speed | 100km/h |
| Stall speed | 57.6km/h |
| Anti-wind capability | 43.2km/h |
| Operating Altitude(Max.) | 3,500m ASL |
Tool-free assembly
Due to its modular airframe design, FW-320 fixed-wing plane can be set up in less than 10 minutes by a single man.
Long flight time
FW-320 airframe is using light-weight and high strength composite material, which will enable the fixed-wing plane to fly up to 2.5 hours at 23KG take-off weight, at an average cruising speed of 78KM/H.
Compass calibration-free (optional)
The pilot does not need to do compass calibration on the VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won’t get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.
Follow Me feature (optional)
Sometimes the flight platform, like a boat or a vehicle, has to move around after the drone takes off to carry out a mission. Then, in this case, the drone should have the ability to follow the moving flight platform and land when the task is over.
No piloting skills needed
The LAUNCH ground control software that FW-320 VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well.
Versatile airborne platform
Thanks to its excellent stability and powerful payload-lift capability, FW-320 VTOL drone can be used in mapping, search, rescue, and surveillance applications. For mapping application, the VTOL supports these mapping cameras: SONY RX1R-II/A7R/A6000/A5100 camera, oblique camera and LiDAR. As to surveillance, it supports these cameras: 3-axis 30x zoom camera / 2-axis 30x zoom camera (for daytime missions), 3-axis 30x EO/IR camera / 2-axis 30x EO/IR camera (for daytime and nighttime missions).
What is included
1 x FW-320 VTOL fixed-wing airframe
4 x T-motor V605S Lift motor
4 x T-motor Flame 80A ESC for lift motor
2 x 2274 CF Propeller CW&CCW
1 x T-motor AT115A ESC for fixed-wing motor
1 x T-motor AT7215 KV220 fixed-wing motor
1 x Wood 19*12 Propeller CW
4 x KST Servo
1 x CAN air Speedometer
1 x Power Distribution Board
1 x Pixhawk Cube Orange Standard Set With Here 3 GNSS & Cube Carrier Board
1 x WFLY ET10 radio controller
1 x Assembly and Flight Test Service
1 x Aviation box
1 x LAUNCH ground control software
Items compatible (not included)
Delivery box: KUA Lite
Flight controller: CUAV V5+, CUAV X7 and X7 Pro, AheadX Taurus 2, AheadX LEO 2
Radio controller: YR16S Radio Controller
Battery: 2 x TATTU 6S 32000mAh 22.8V 10C Lipo battery
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
Ground control station: ROCK GCS
Drone Size
Packing Dimension
