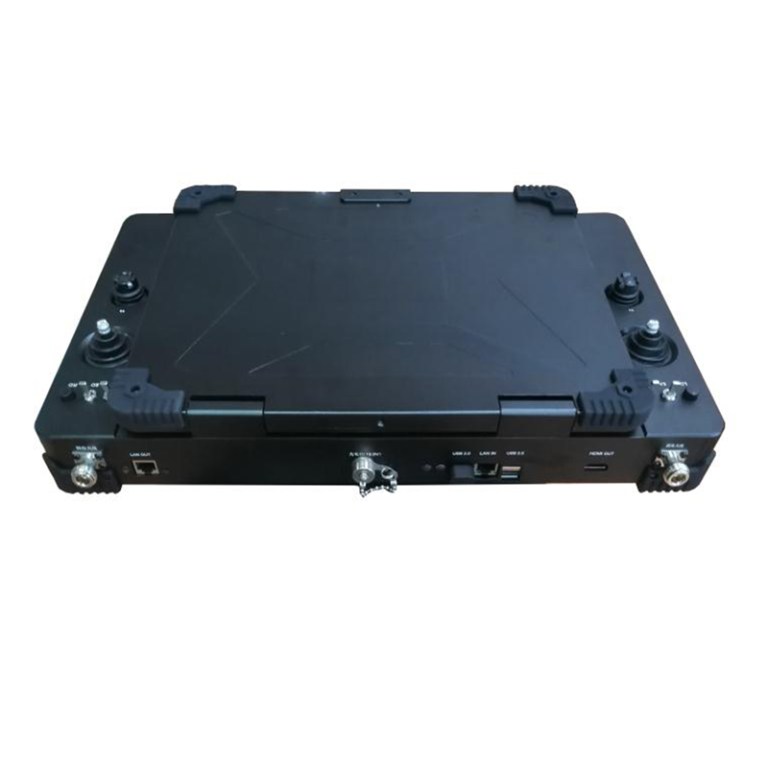

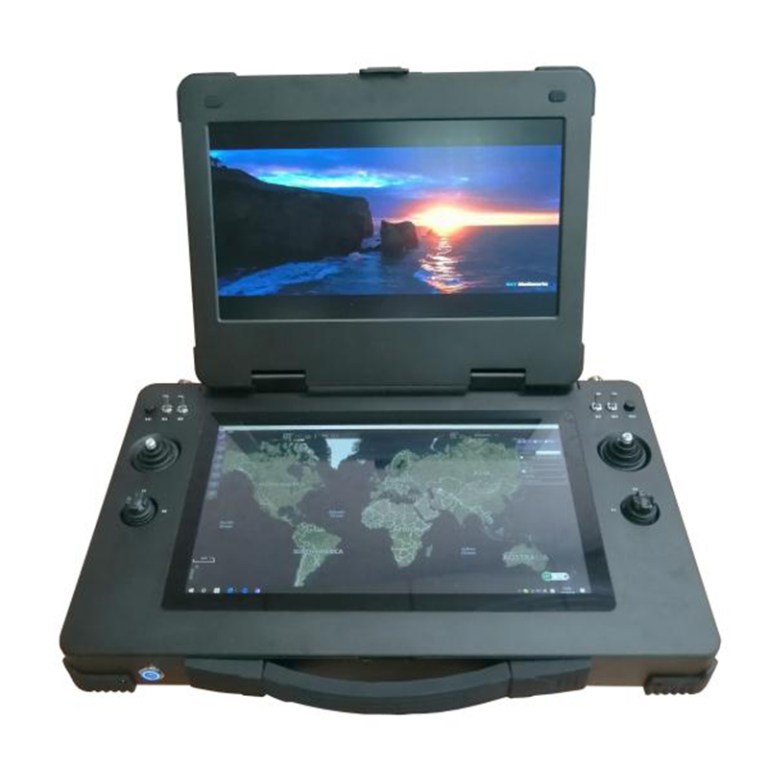

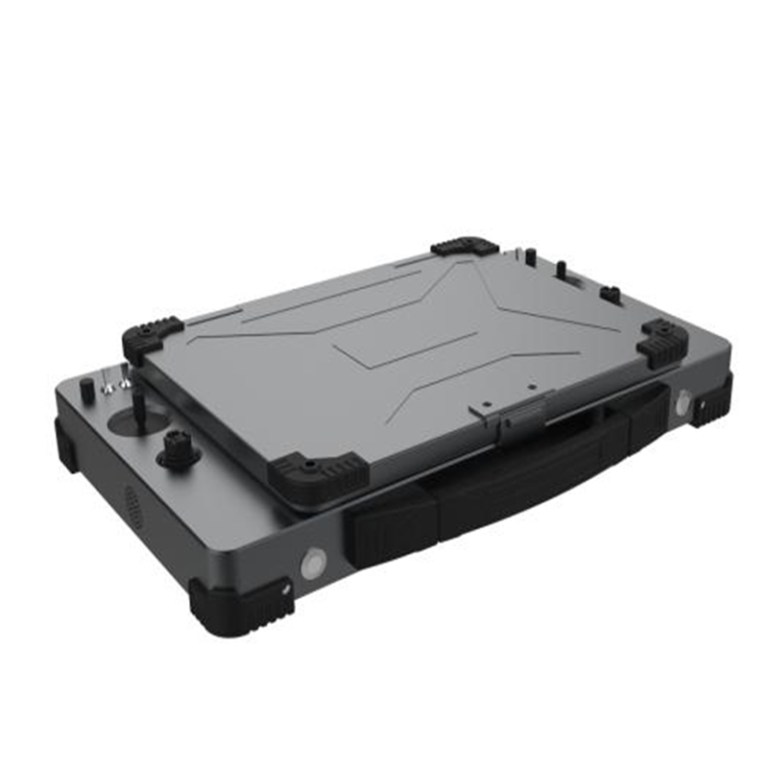

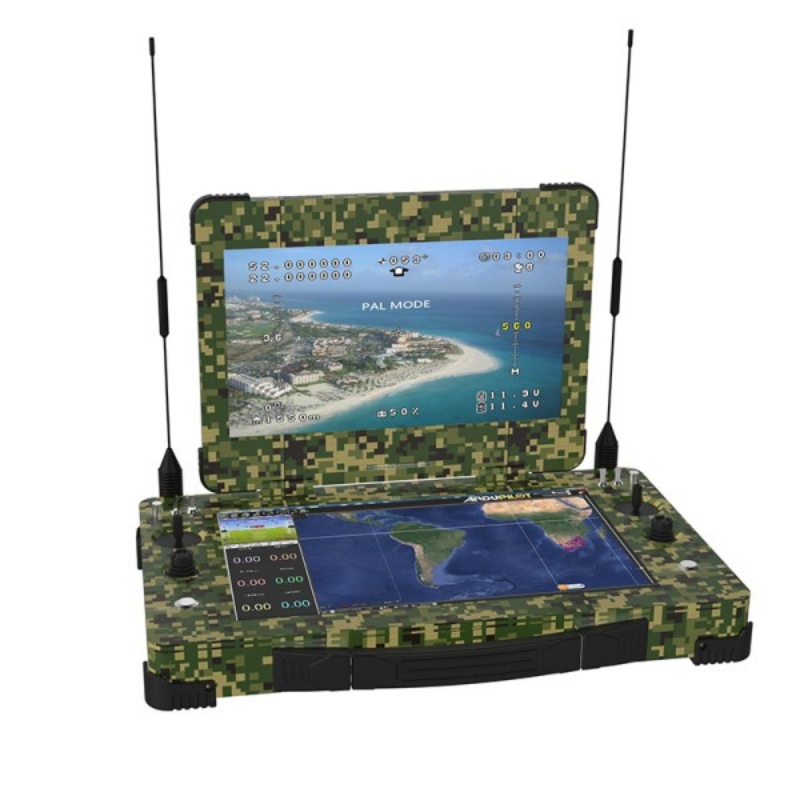

Ground Station 14 Channels Portable Ground Control Station

$7,080.00

Availability: In Stock

Ground station is typically a software application, running on a ground-based computer, that communicates with your UAV via wireless telemetry. It displays real-time data on the UAVs performance and position and can serve as a “virtual cockpit”, showing many of the same instruments that you would have if you were flying a real plane. A GCS can also be used to control a UAV in flight, uploading new mission commands and setting parameters. It is often also used to monitor the live video streams from a UAV’s cameras. portable Ground Control Station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads. By using a unique, modular electronics compartment (MEC), application specific hardware can be quickly installed. This flexibility allows the GCS to be configured to control unmanned aircraft vehicles (UAV), ground robots, bomb disposal robots, remotely operated vehicles (ROV) and other robotic devices. The GCS can also be configured to control and monitor measurement and sensing equipment.

Compare

Description

Specification:

Size: 462*256*70MM
CPU: Intel I7 7500U
Graphics card: Intel HD Graphics 620
Screen: Dual 13.3″ LED
Display resolution: 1920*1080
Touch screen: 10 points
Connector: 2*USB2.0/ 3*USB3.0/ 1*LAN/ 1*HDMI/ 1*MIC-OUT/ LINE-OUT/DC
Remote joystick: 2 Back to the Hall remote control lever
Gimbal Rocker: 2 Back to the Hall remote control lever
Channel: 14
