Description
Introduction

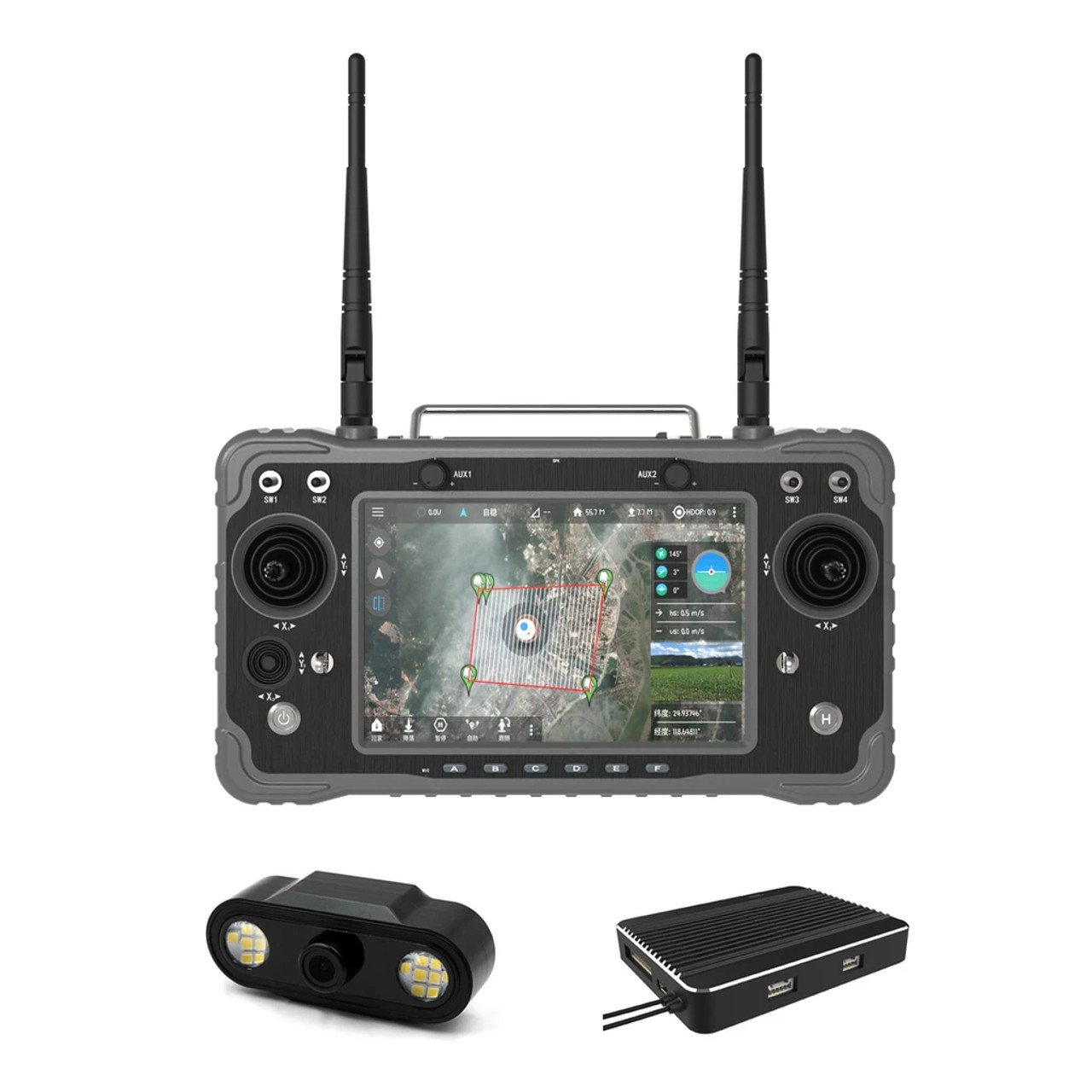

H16 is a portable and cost-effective ground control station with a video link, data link, RC, and android system all in one, featuring low latency, good anti-interference performance, and long transmission range.
H16 series includes two versions: H16 and H16 Pro. The max transmission range of H16 is 10km, H16 Pro-30km.
H16 series GCS is equipped with a 7” FHD high-brightness screen with a 1920*1200, Max resolution. Brightness can reach 2000nit, and operators can use it in full sunlight.
H16 series come with an android system and support mainstream ground station software like QGC. So it can achieve functions like route planning, real-time flight status feedback, etc. It also supports video suspension and wireless RTSP video streaming sharing.
H16 series features high expansibility, supports multiple interfaces like HDMI, RJ45, SBUS, PPM，sensor interface, UART, USB, etc.
H16 has an optional MIPI camera, the resolution of which is 1080P.
The GCS body, control switches, and all peripheral interfaces adopt the dust-proof and water-proof design, ensuring stable and smooth operation in harsh environments.
With a built-in 20000mAh li-ion battery, the operation time is up to 8hours with full capacity. MX16 supports 18w fast charge.
The H16 series GCS is compatible with most drones, which can be used for powerline inspection, police patrol, search, and rescue, etc.
Specification
Weight: 1034g(controller)
Channel: 16
Working voltage: 4.2V
Frequency: 2.400GHz-2.483GHz
Battery Capacity: 20000mAh
Endurance: 8hours
Communication technology: FHSS
Transmission Distance: 10km; 30km (Video/data)
Receiver
Working Voltage:7.2-72V
Size:76*59*11mm
Weight:90g
MIPI Camera (optional)
Working Current: 14mA;140mA(with the light on)
Working Voltage:14-72V
Size:102.1*42.6*36.5mm
Weight:55g
Your Purchase Includes
1x H16 Ground Control Station
1x H16 Air Unit
2x Antenna for Ground Control Station
1x Charger for Ground Control Station
1x Type-C to HDMI Conversion Module
1x Neck Strap
1x Cable Package
