Description
Product highlights:
1. Integrated Video Tracking
2. High image quality and scene adaptability
3. No shutter (NUC) technology
4. On-line temperature measurement, false color display
5. Support for external input video (picture-in-picture)
6. OSD interface display
7. Custom character overlays
8. Rich communication interfaces
9. Small size, low power consumption
Parameters
| MODEL | SHD-2 | |
| Imaging index | Working format | Un-cooled 8μm~14μm |
| Resolution | 640×480 | |
| Size of pixel | 12μm | |
| Emissivity correction | Emissivity0.01~1 adjustable | |
| NETD | ≤50mK（@25℃） | |
| MRTD | ≤550mK（under characteristic frequency） | |
| Color palette | Black hot/white hot/pseudo color | |
| Digital zoom | 2X、3X、4X | |
| Temperature measurement | Temperature bar with highest/lowest/center temperature spot | |
| Measurement range | 0℃~120℃ | |
| Tracking index | Data refresh rate | 25Hz（IR）/ as Sony core（visible light） |
| Tracking velocity | ± 32 pixels / frame | |
| Target size | 16×16～128×128 pixels | |
| Environmental adaptation | Working temperature | -40℃～60℃ |
| Storage temperature | -40℃～65℃ | |
| Electrical interface | Communication
interface |
TTL |
| Video Input | HDMI MICRO | |
| Video Output | HDMI micro +Net | |
| Video storage | The SD card stores JPEG images/h. 264, H265, and MP4 Video (32 gigabytes from the factory, up to 128 gigabytes) | |
| Power input | DC 12V | |
| Others | Lens | 19mm/25mm/35mm/50mm |
| Volume | 78.3mm × 42mm × 42mm | |
| Weight | ＜155g | |
| Power consumption | ≤4.6W (@25℃) |

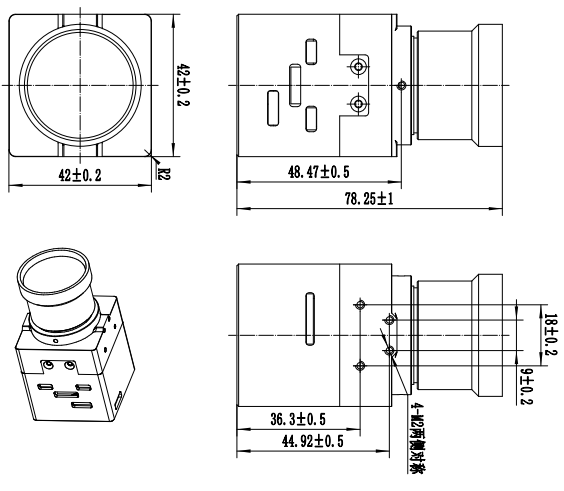

Dimensions
