Description
Introduction
The Herelink is a long-range HD Digital Video Transmission System, which combines video, data transmission, and radio control, so it is an all-in-one solution. This 2.4GHz radio controller with the built-in screen allows users to get long range HD video, telemetry, and control link up to a whopping 20km. It uses the 2.4GHz band on LTE over WIFI, and this allows maximum transmission distance. They are purported to have a range of 20km in FCC and 12km in CE.

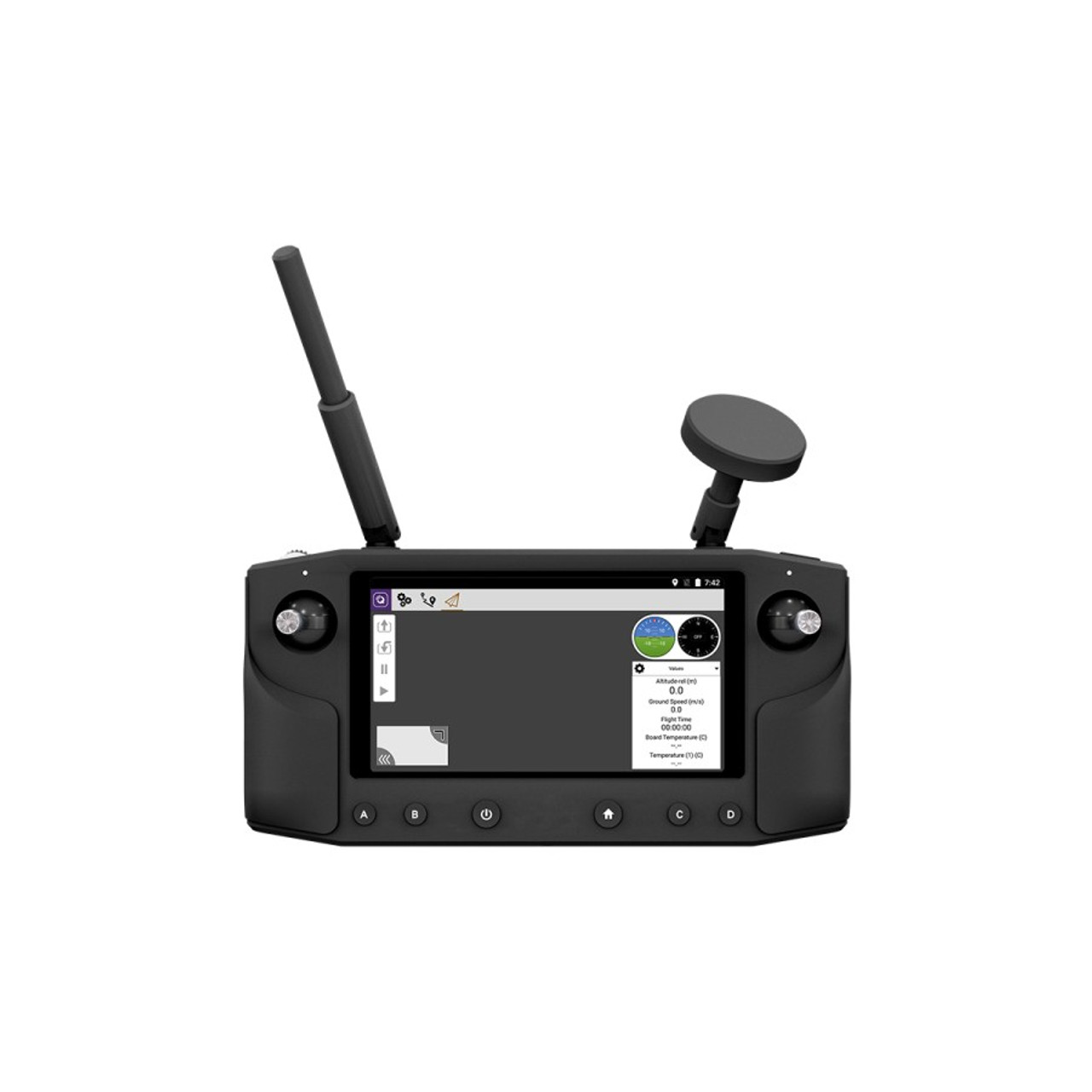

The large 5.5″ screen displays a multitude of control options such as live images, autopilot configuration through the native QGround control or other GCS applications based on the Mavlink system.

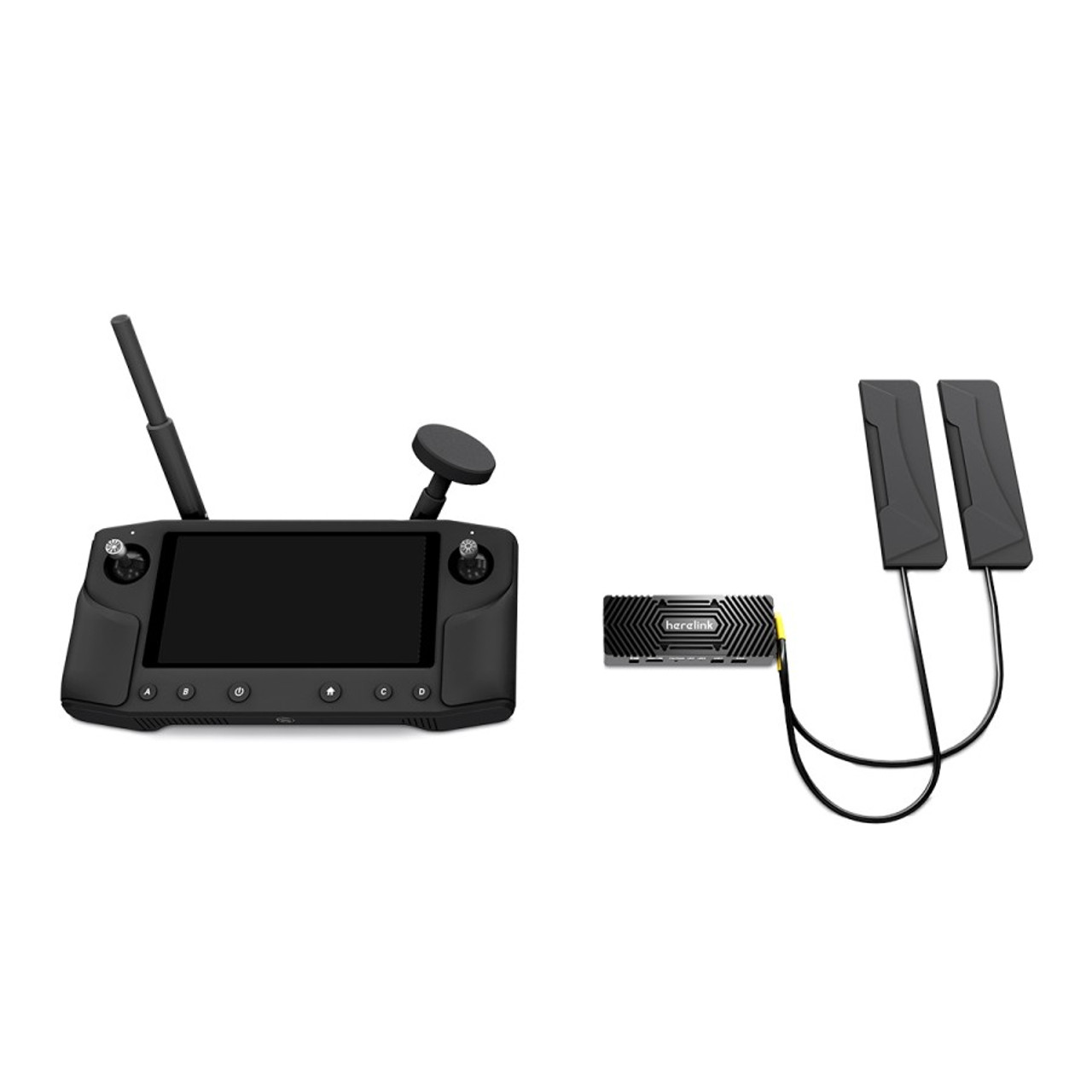

The Air Unit is using input power between 5-12V and has a single UART for connection to the flight controller or other Mavlink accessories. Both the Air Unit and the Radio Controller are equipped with powerful Pinecone S1 processors with four cores at 2.2GHz and four more additional cores at 1.4GHz, and this allows for tons of possibilities for app usage and future development.
Features
- All in one: Telemetry, Video, and control
- Up to 20KM in FCC mode and 12KM in CE mode
- 2.4Ghz frequency
- UART Telemetry
- RC Protocol: SBUS, iBUS, ETC.
- Mavlink compatible
- Touch screen
- HDMI input x2 for 1080P video transmission @ 60fps
- APP QGround control, and API for development.
- WIFI, Bluetooth and USB to connect with other devices
