Description

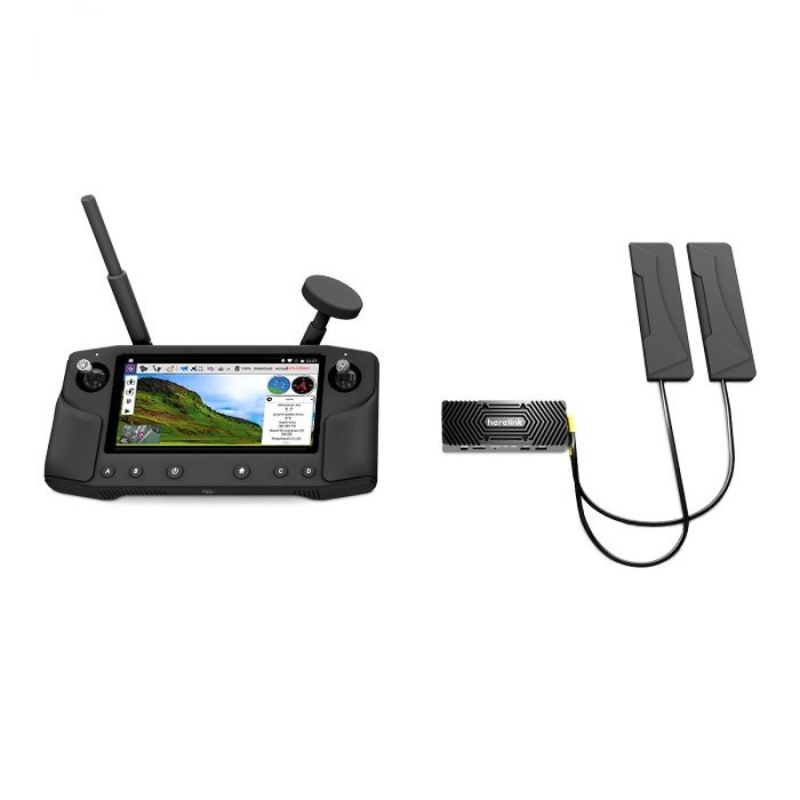

This 2.4GHz radio controller with built-in screen allows users to get long range HD video, telemetry, and control link up to a whopping 20km. It uses the 2.4GHz band on LTE over WIFI. This allows maximum transmission distance. Purported to have a range of 20km in FCC and 12km in CE.
The large 5.5″ screen displays a multitude of control options such as live images, autopilot configuration through the native QGround control or other GCS applications based on the Mavlink system.
The Air Unit uses between 5-12v input power and has a single UART for connection to the flight controller or other Mavlink accessories. Both the Air Unit and the Radio Controller are equipped with powerful Pinecone S1 processors with 4 cores at 2.2GHz and 4 more additional cores at 1.4GHz. This allows for tons of possibilities for app usage and future development.
Features
- All in one: Telemetry, Video, and control
- Up to 20KM in FCC mode and 12KM in CE mode
- 2.4Ghz frequency
- UART Telemetry
- RC Protocol: SBUS, iBUS, ETC.
- Mavlink compatible
- Touch screen
- HDMI input x2 for 1080P video transmission @ 60fps
- APP QGround control, and API for development.
- WIFI, Bluetooth and USB to connect with other devices
