Description

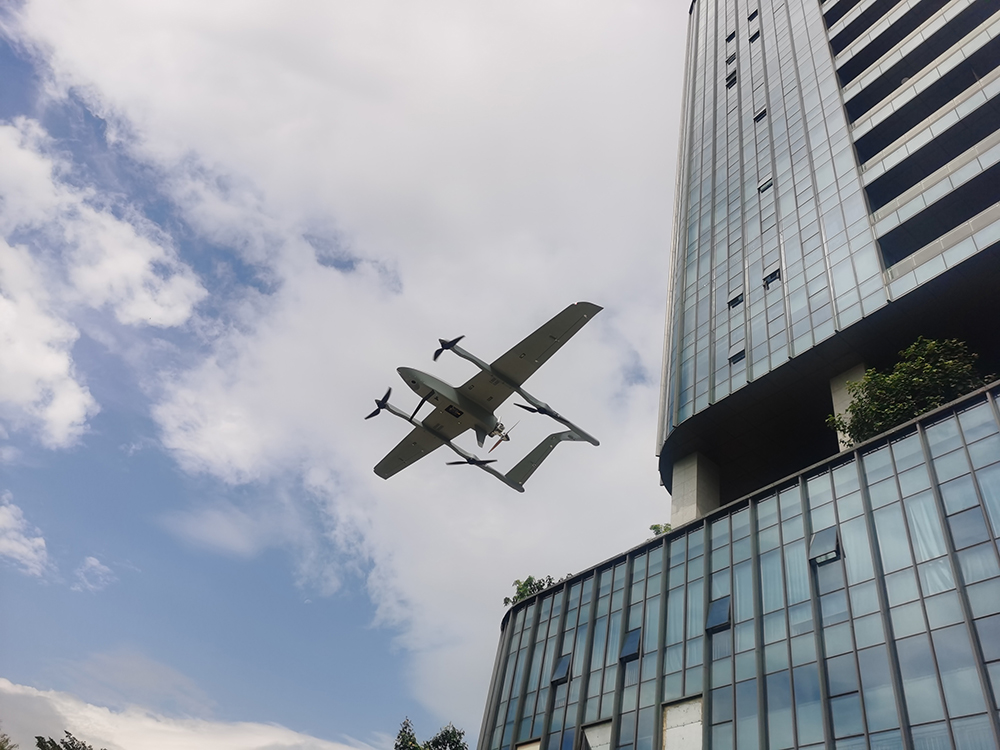

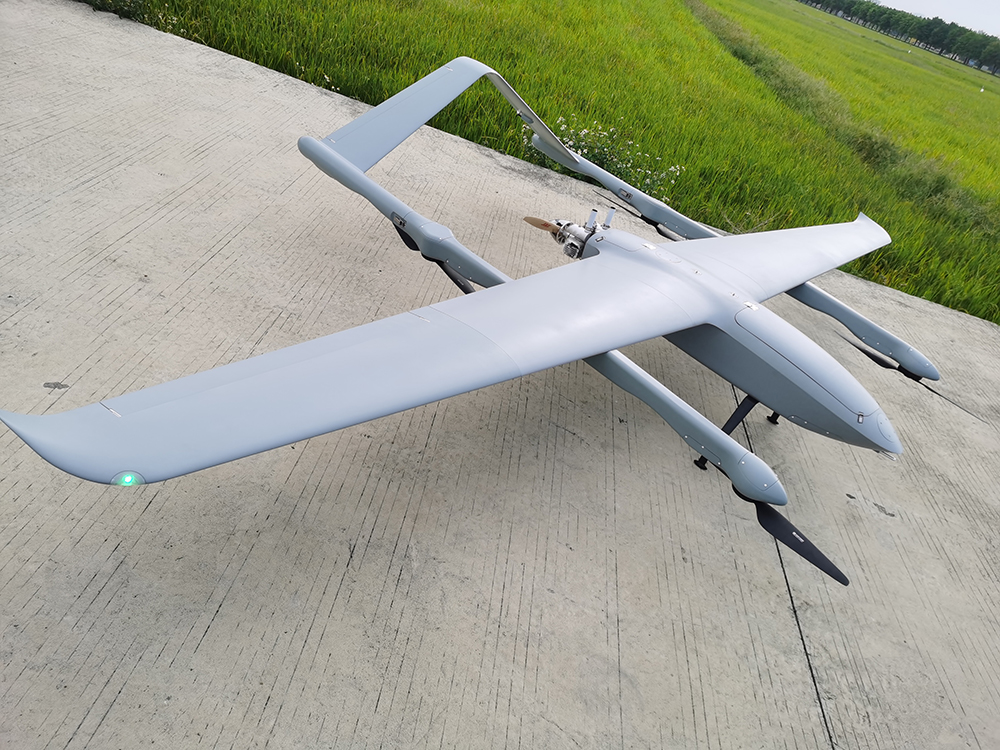

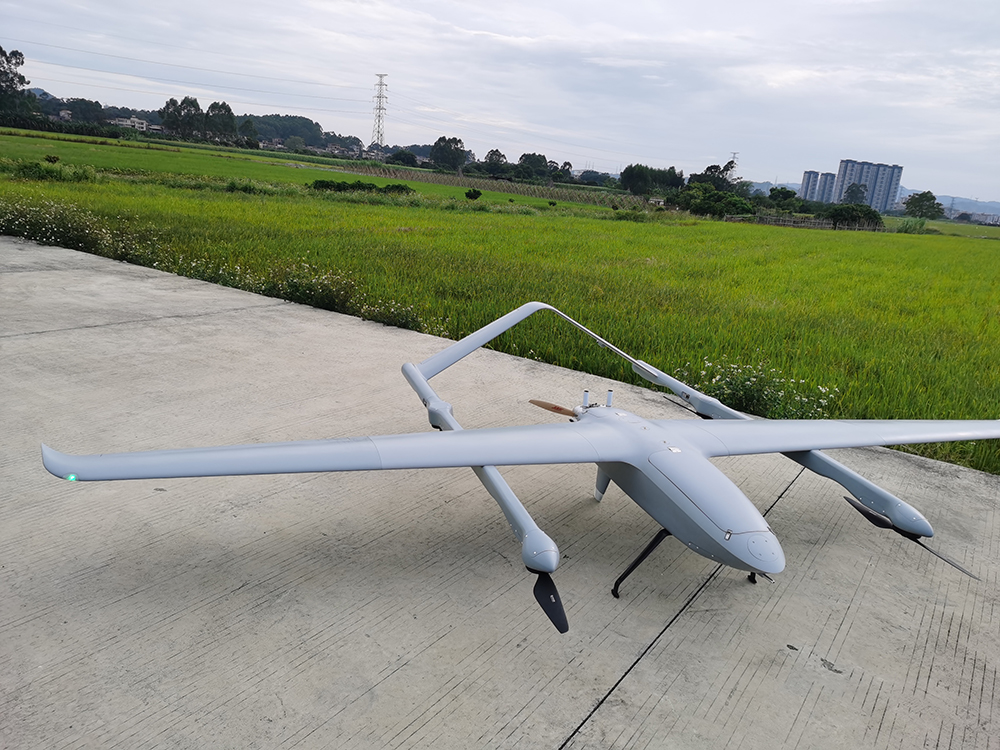

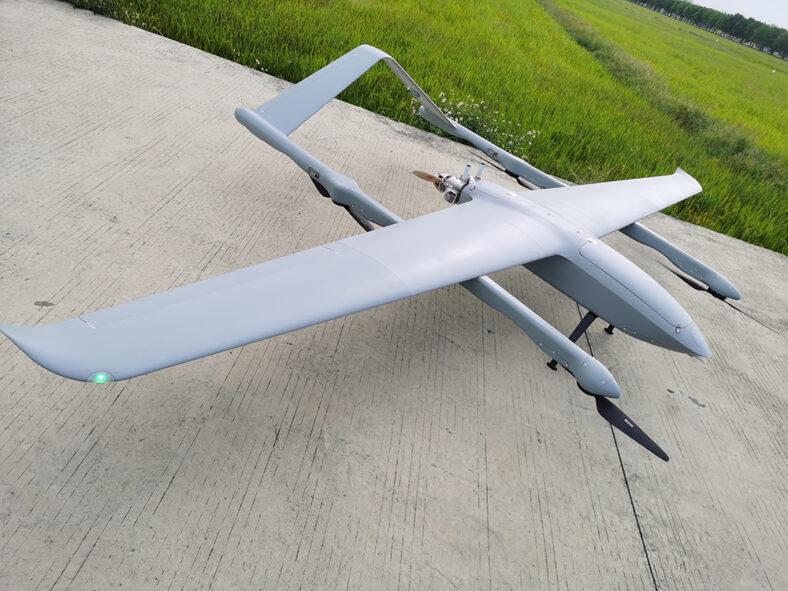

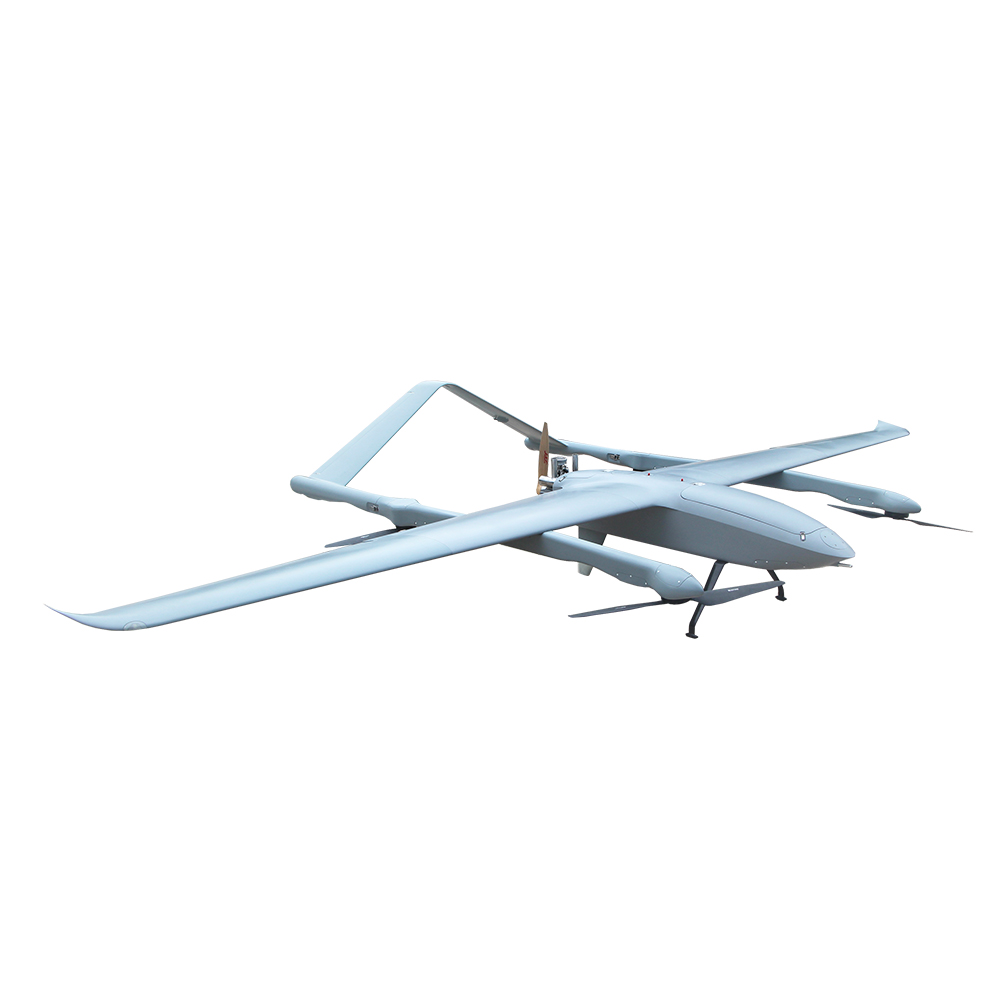

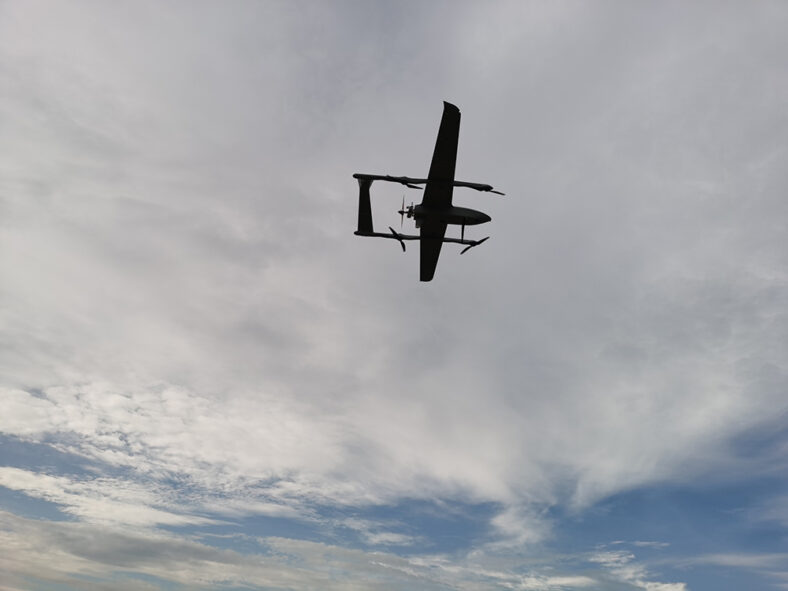

Hybrid VTOL UAV FDG50F is a pure fuel-powered vertical take-off and landing fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings, and combines the advantages of  VTOL of the quad-rotors models and the long rang of the fixed-wing models. It is flexible and can adapt to various complex take-off and landing conditions. FDG50F 55 KGS takeoff weight vertical take-off and landing (VTOL) fixed-wing UAV is newly launched in 2022.

The waterproof design of the whole machine can meet the flight conditions of complex weather conditions. Inspiration integrated engine, the battery life is more than 10 hours. The main antenna is integrated with the landing gear, reducing drag and making it clean and unobstructed

It adopts a composite aerodynamic layout of quadrotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long range of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions.

Modular design, the whole machine can be disassembled without tools, and can be installed quickly in 3 minutes.

FDG50F parameter
Standard take-off weight: 55kg
Max. Payload Weight: 10kg
Cruise Speed: 93km/h
Max. Flight Speed: 130km/h
Control radius:50-100km
Max. climb speed: 4m/s
Max. Descend speed: 5m/s
Max. Altitude AMSL: 4000m
Max. Wind Resistance: Level 7
Operating temperature: -10~60℃
Flight Time: ≥600min
Flight Distance≥850km
Aircraft dimensions: 4800*2580*850MM
Package dimensions:
1:1810*980*720mm，
2:1800×460×1100mm
