Description

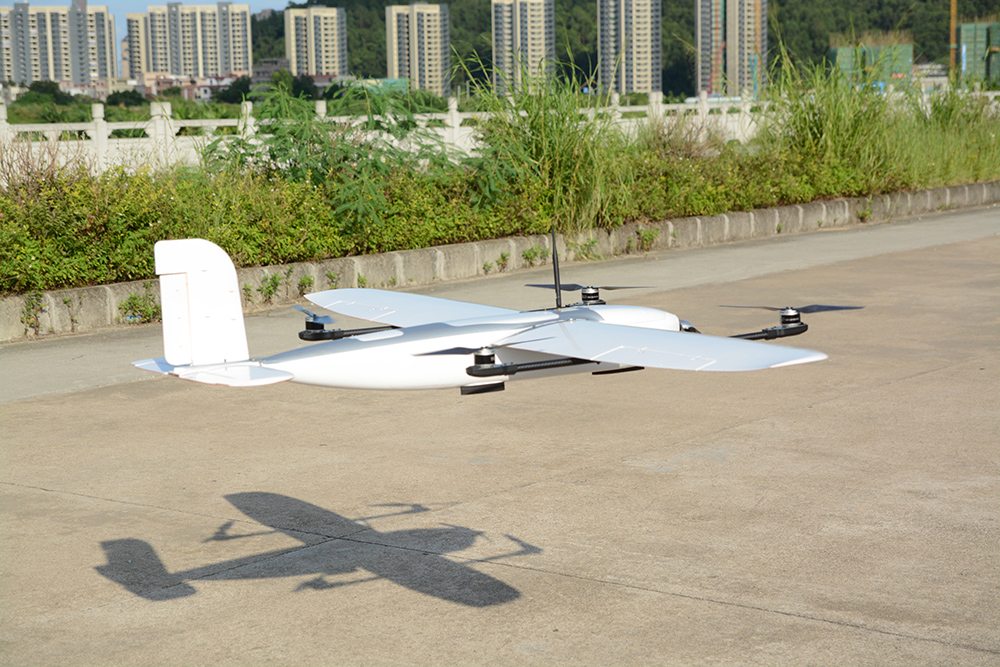

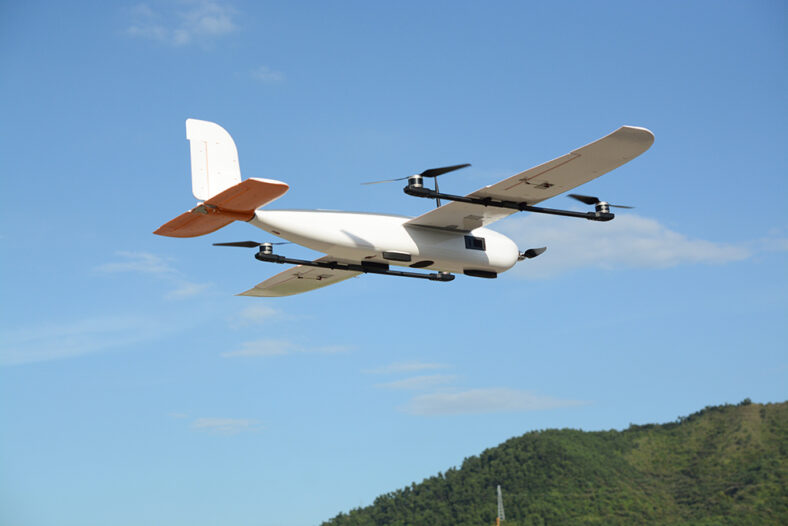

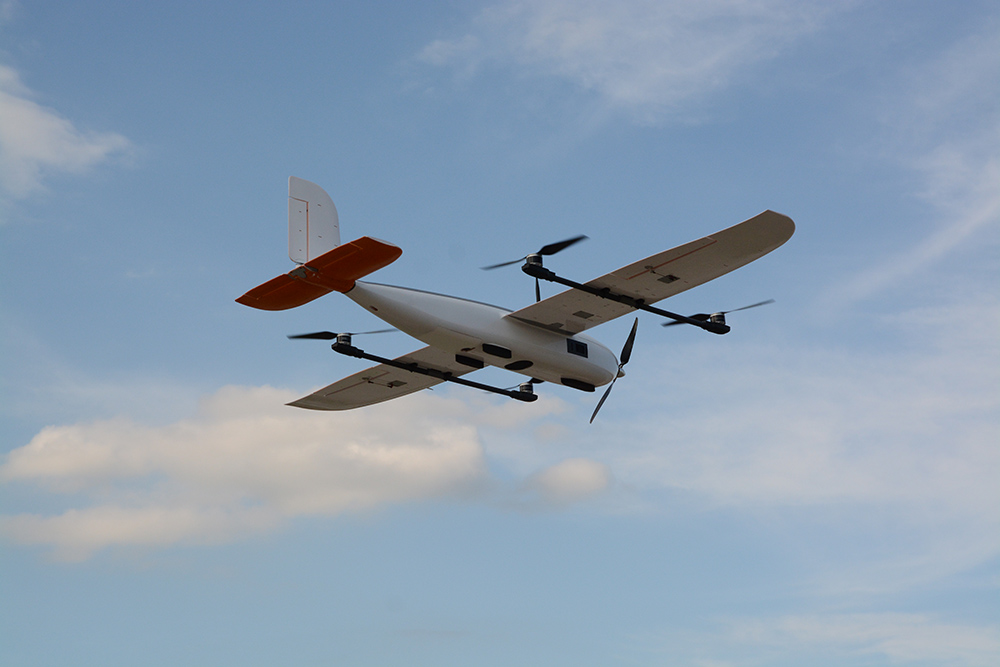

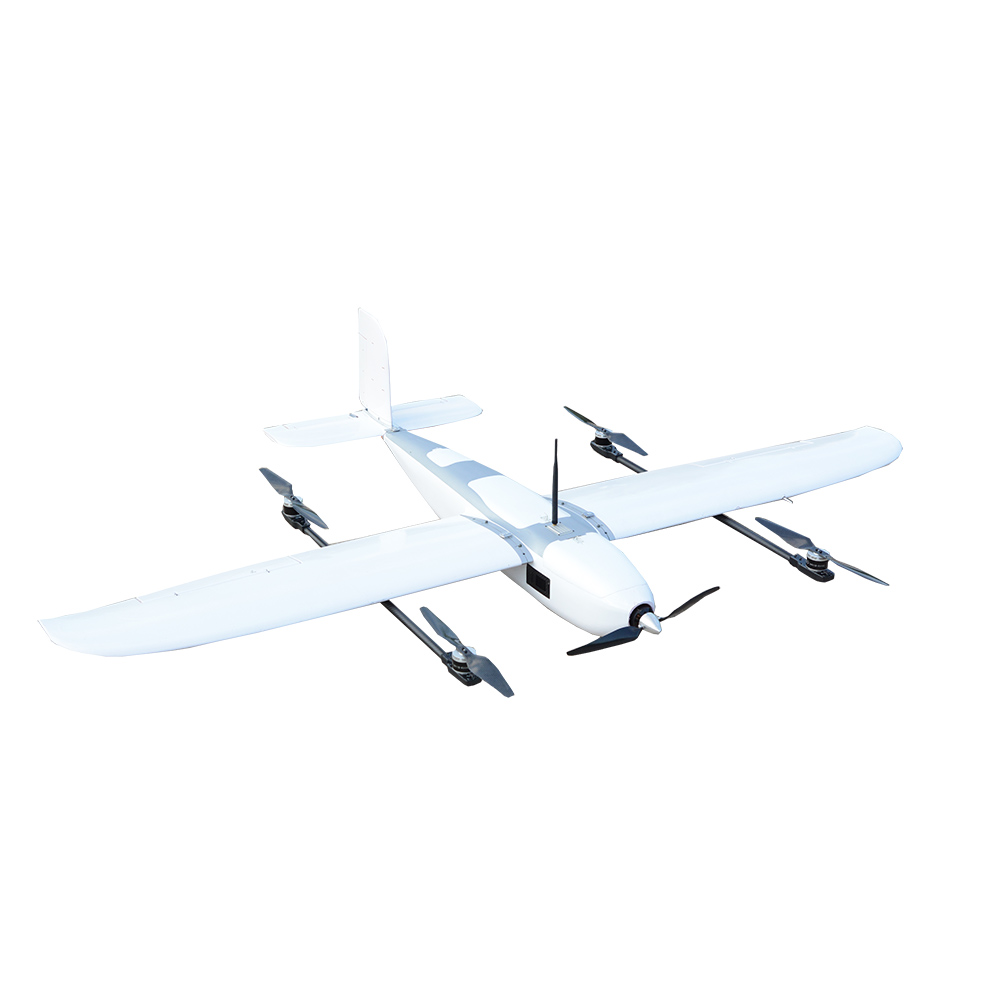

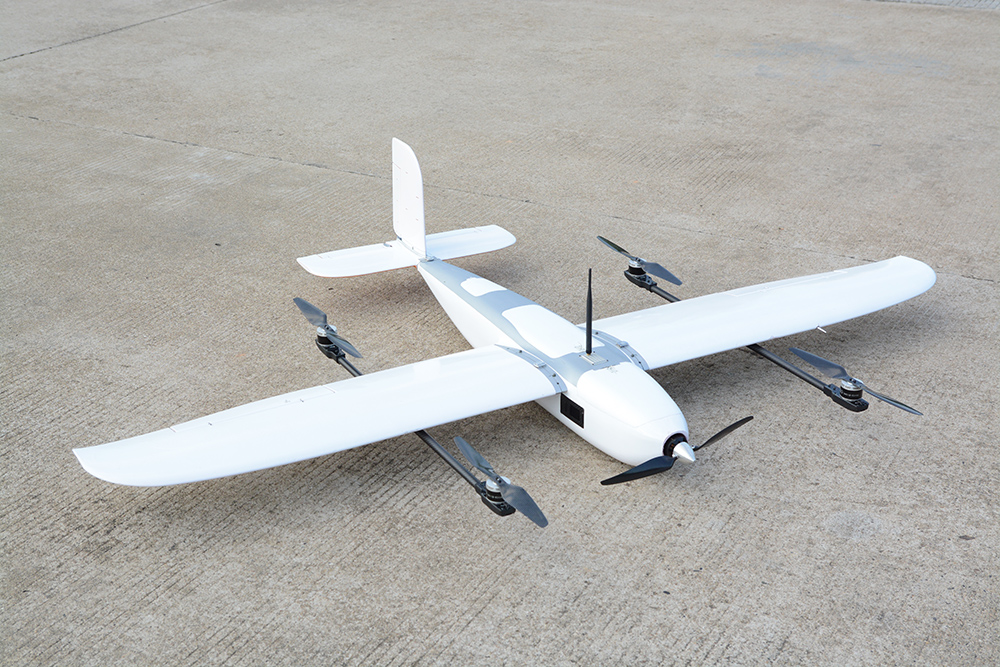

Loong 2160 VTOL is a quick-assemble, reliable high performance VTOL, and it is specifically design for mapping. It has the advantage of being cost-effective and easy-to-use. Loong 2160 VTOL features aerodynamic shape with 2160mm wingspan and 1200mm fuselage. Made from EPO and reinforced by carbon tubes that are of high tensile strength and low weight, the whole frame is durable and portable, weighing only 1kg. In order to reinforce the drone, the belly is protected by wearproof PVC layer and two wings are covered with a layer of high-strength Aluminum-plastic Film for protection. It adopts “4+1” motor design that includes 4 VTOL motors and 1 fixed-wing motor, realizing space-efficient VTOL and fast-speed fixed wing task performing at the same time with powerful propulsion system. Besides, it withstands 5.5m/s-7.9m/s(12.5mph-17.5mph) wind, making it possible to perform aerial task in various complex situations. The ESC for fixed wing mode is mounted on the outside for better heat dissipation. Metal buckle is installed in the center of gravity position to prevent loosening and also makes it easier to locate CG; The camera cabin’s neat wiring layout helps to configure the camera without wires getting intertwined.
Specifications:
Version: Loong 2160 VTOL Inspection
Wingspan: 2160mm
Fuselage: 1200mm
Material: EPO, Aluminum-plastic Film, PVC
Frame Weight: 1kg
ARF Weight: 3.8kg (no battery, no payload)
Max. Take-off Weight: 8kg
Suggested Max Payload: 1.3kg(excluding battery)
Endurance: 95min (1x 6S 25000mAh High Voltage Lipo Battery, no payload)
70min(with gimbal camera)
Recommended Cruising Speed: 18-20m/s
Stall Speed: 12-14m/s
Suggested Take-off Altitude: 0~3000m
Wind Resistance: 5.5m/s-7.9m/s(12.5mph-17.5mph)
Take-off/Landing: VTOL
Working Voltage: 24V
Working Temperature: -10℃-40℃
Carrying Case: 125cm*34cm*34cm
Packing include:
1x Loong 2160 VTOL Frame
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DK32 remote Controller
4x VTOL Motor 4118 KV440
1x Motor for Fixed-wing Mode 4125 KV400
4x VTOL ESC 50A Pro
1x ESC 120A for Fixed-wing Mode
3x 17g Servo
2x 12g Servo
2x(pair) 1555 carbon fiber Propeller
1x 1612 Folding Propeller
1x Pitot Tube
1x Carrying Case
1x Assembling, tuned and Flying Test Service
