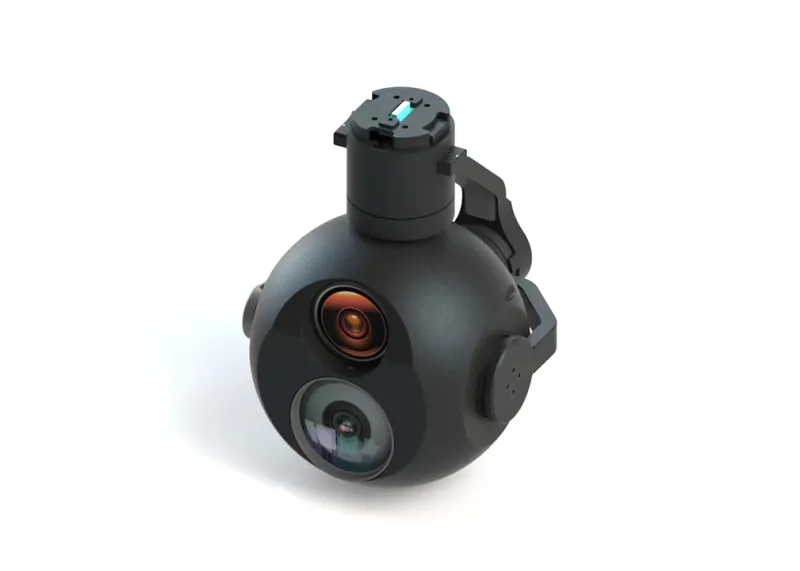

Mini Double Light Micro Gimbal Camera

Availability: In Stock

The Mini Double Light Micro universal joint is a cutting-edge drone universal joint that features a compact integrated design, quick disassembly structure, and convenient installation. The quick release port of the 10X universal joint allows users to easily connect the universal joint to the drone. The 10X optical zoom EO camera with a three-axis structure makes the optical payload very suitable for customers who need lightweight and better image stability universal joint cameras.





Compare
Category: Tag:

Description

The Mini Double Light Micro universal joint is a cutting-edge drone universal joint that features a compact integrated design, quick disassembly structure, and convenient installation. The quick release port of the 10X universal joint allows users to easily connect the universal joint to the drone. The 10X optical zoom EO camera with a three-axis structure makes the optical payload very suitable for customers who need lightweight and better image stability universal joint cameras.



Product highlights:

1.10x continuous optical zoom+24mm infrared camera: Use 10x optical zoom and infrared camera to capture stunning visual effects, ensuring excellent image quality and clarity during the day and night.

2. High precision laser ranging: This universal joint uses high-precision laser positioning technology to experience precise target positioning. Easily achieve precise and accurate measurements.

3. Human vehicle recognition: The Mini Double Light Micro Gimbal is equipped with advanced human vehicle recognition features, helping you easily identify the vehicle and track its movement.

4. 360 ° infinite cycle rotation: Use the 360 ° infinite cycle rotation function of this universal joint to enjoy unlimited freedom of movement and rotation. Take high-definition panoramic photos with an optical zoom camera.

5. Small size and light weight: This miniature universal joint has a compact and lightweight design, and its compact appearance allows you to easily integrate with drones without affecting performance.

6. Low power consumption: This universal joint has low power consumption and can maximize usage time.



Parameters

MODEL MIV-01pro
System specification System type Gyro stability
Weight 430g
Stable system Platform type Tri-axis
Azimuth 360°rotation
Pitch -100°~+100°
Roll -45°~+45°
Maximum search angular velocity ≥100°/s
Stability accuracy 0.1mrad(1°/2HZ)
Angular position accuracy ≤0.3°
Visible light camera Resolution and frame rate 1920×1080 @60fps
FOV 61.3°X36.9°~6.8°X3.9°
 Infrared camera Resolution and frame rate 640×480@60fps
FOV 18.1°×13.6°(24mm prime lens)
Tracking module Frame rate 60Hz
Tracking speed ±48 Pixel/frame
System external interface Control RS232、NET
Video output  NET
Power supply Power 12~28V
Power consumption Av≤10W,Max≤20W
Environmental conditions Operating temperature -20℃~+50℃
Storage temperature -40℃~+60℃



Dimensions

zoom gimbal



How it works:

The design of the Mini Double Light Micro universal joint allows for easy connection to drones through its quick release port. After installation, you can remotely control the universal joint and its camera to capture stunning visual effects from various angles and perspectives. The combination of optical payload and triaxial structure ensures excellent image stability, making it very suitable for customers who require lightweight but high-quality universal joint cameras.



Frequently asked questions:

Q: Can I use this universal joint with any drone?

A: This type of universal joint is compatible with most drones that support universal joint integration. However, it is recommended to check the compatibility of the drone before purchasing.

Q: Does the universal joint have a camera?

A: Yes, this universal joint includes a 10x optical zoom EO camera and a 24mm infrared camera, providing you with multifunctional imaging options.

Q: What is the power supply for the universal joint?

A: The universal joint can be powered by the drone’s battery or external power source, depending on your settings.
