Description

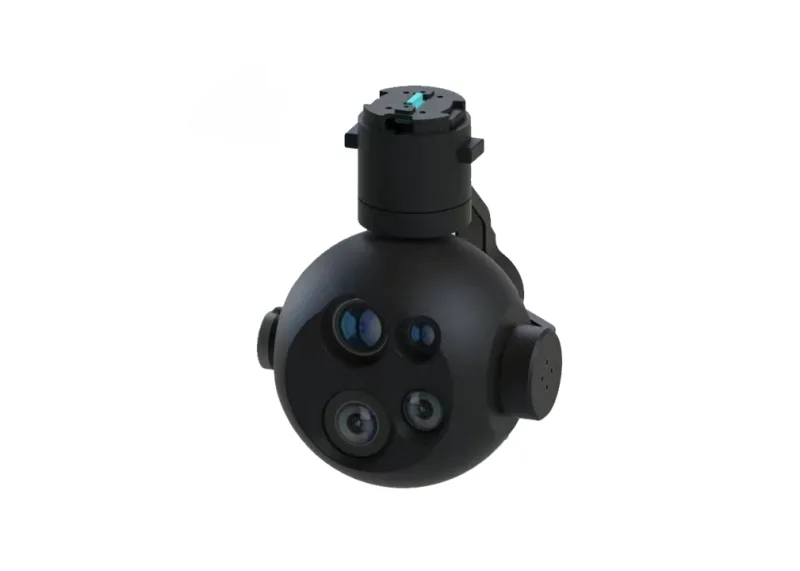

The 5.4/35mm visible light I ranging universal joint is equipped with a 5.4mm EO camera, a 35mm camera, and a 3km laser rangefinder, allowing the universal joint to be monitored and ranging 24/7. The three-axis structure endows the universal joint with better image stability, helping drones form stable imaging capabilities in various commercial applications such as border defense, environmental protection, and traffic violation monitoring. The universal joint has a built-in tracking module that can maintain its accuracy in any environment. This universal joint has an integrated design, fast disassembly structure, and convenient installation, making it very suitable for professional drone operators and enthusiasts.
Product highlights:
1. 5.4/35mm visible light camera+3000m laser rangefinder: Our universal joint is equipped with a 5.4mm EO camera, a 35mm camera, and a 3km laser rangefinder. This powerful combination achieves all-weather monitoring and ranging functions, making it very suitable for wide applications such as border defense, environmental protection, and traffic violation monitoring.
2. High precision laser ranging: Use our universal joint’s high-precision laser positioning function to experience unparalleled accuracy. This can achieve precise target positioning and ensure that your operations achieve the highest accuracy.
3. Human vehicle recognition function: With the built-in human vehicle recognition function, our universal joint takes your drone monitoring ability to a new level. It can automatically recognize cars and provide real-time data for traffic monitoring and analysis.
4. 360 ° infinite cycle rotation: Use the 360 ° infinite cycle rotation function of the universal joint to easily capture each angle. Whether you need to track moving targets or capture panoramic views, this feature ensures smooth and seamless rotation.
5. Small size, light weight, and low power consumption: Our universal joint design is compact and very suitable for various sizes of drones. Despite its small size, it is not lagging behind in terms of performance. It has light weight, low power consumption, long flight time, and high operational efficiency.
Parameters
| MODEL | M2IR-01 | |
| System specification | System type | Gyro stability |
| Weight | 380g | |
| Stable system | Platform type | Tri-axis |
| Azimuth | 360°rotation | |
| pitch | -100°～+100° | |
| Maximum search angular velocity | ≥100°/s | |
| Stability accuracy | 0.1mrad(1°/2HZ) | |
| Angular position accuracy | ≤0.3° | |
| Visible light camera 1 | Resolution and frame rate | 1920×1080 @60fps |
| FOV | 54.5°×32.3° (5.4mm prime lens) | |
| Visible light camera 2 | Resolution and frame rate | 1920×1080 @60fps |
| FOV | 9.1°×5.1° (35mm prime lens) | |
| Ranging | Laser Ranging | Range≥3km;
Accuracy±1m |
| Tracking module | Frame rate | 60Hz |
| Tracking speed | ±48 Pixel/frame | |
| System external interface | Control | RS232、NET |
| Video output | NET | |
| Power supply | Power | 12～28V |
| Power consumption | Av≤10W，Max≤20W | |
| Environmental conditions | Operating temperature | -20℃～+50℃ |
| Storage temperature | -40℃～+60℃ |
Dimensions
How it works:
Our universal joint adopts an integrated design, ensuring fast and convenient installation. Simply connect it to the drone to experience enhanced imaging capabilities. The three-axis structure provides excellent image stability, enabling stable imaging even under challenging conditions. The advanced technology and functions of universal joints enable them to function perfectly in various commercial applications, providing you with excellent results.
Frequently asked questions:
Q: Is this universal joint suitable for all types of drones?
A: Our universal joint design is versatile and compatible with various drones. However, we recommend that you check compatibility with specific drone models before purchasing.
Q: Can laser rangefinders accurately measure distance under all weather conditions?
A: Yes, the laser rangefinder in our universal joint is specially designed to perform accurately in all weather conditions, ensuring reliable distance measurement at all times.
Q: How do I install this universal joint on my drone?
A: The universal joint has a quick disassembly structure, making it easy to install. Simply follow the provided instructions to securely connect it to your drone.
