Description

Introduction

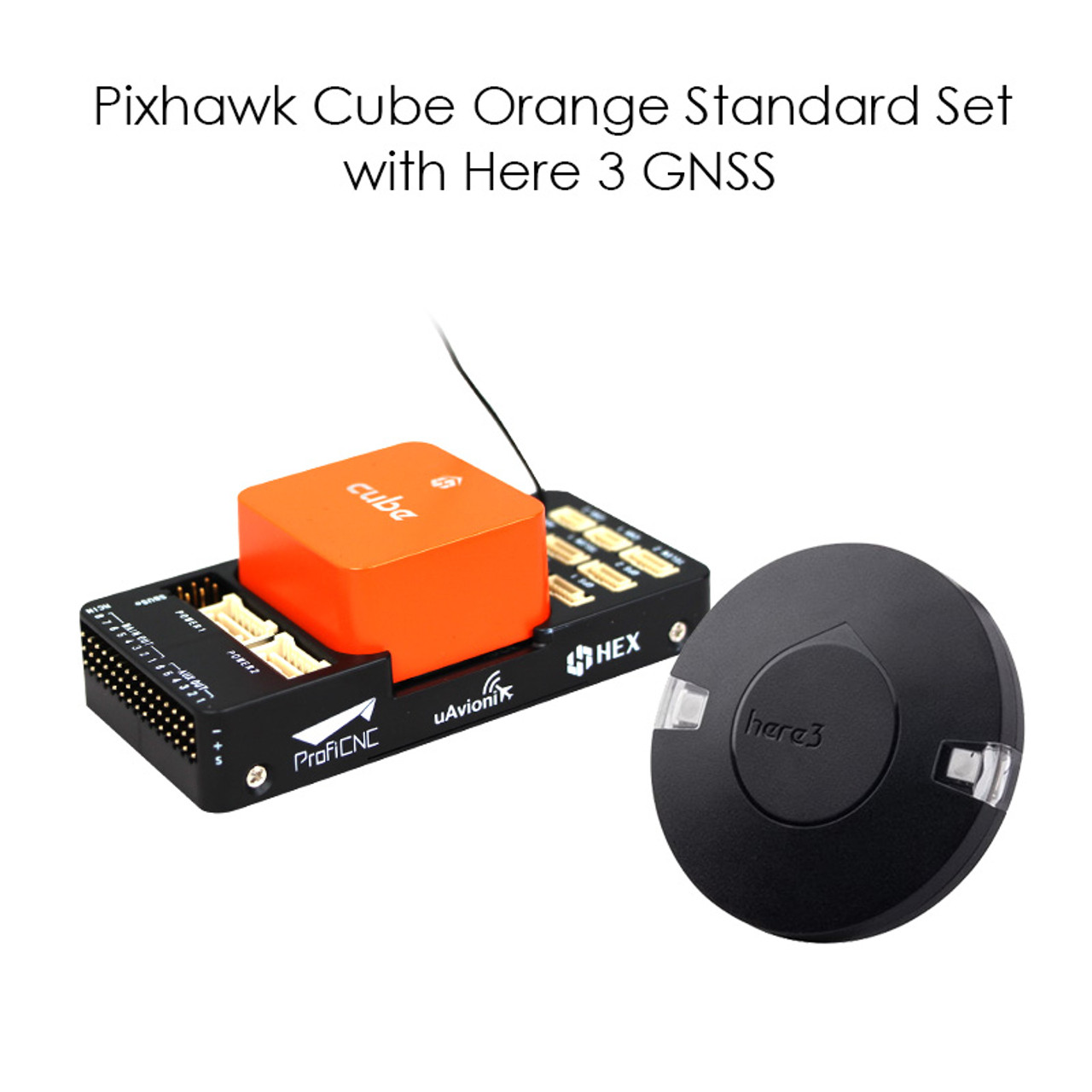

Pixhawk Cube Orange Standard Set with Here 3 GNSS includes an orange cube, ADS-B carrier board and Here 3 GNSS. This open-source autopilot adopts powerful H7 processor, featuring a triple-redundancy IMU system and vibration dampening system. The anti-jamming performance and stability are greatly improved. Carrier Board with an integrated 1090MHz ADS-B receiver, allows the software to receive information about the location of manned aircraft in the area, that effectively improve the flight safety of UAV.

Here 3 GPS module is a new version based on Here 2 GNSS GPS unit. Compared with Here 2 GNSS GPS unit, Here 3 GPS module with built-in RTK features more accurate positioning, faster response, and colorful LED lights for visible indications of UAV status. Here 3 GPS Unit is compatible with Pixhawk 2.1 and most of the other open-source flight controllers.

Cube Orange
-Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in triple-redundant sensors, temperature control shock absorption IMU.
-With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter, or multirotor and turn it into a more professional UAV platform.

ADS-B Carrier Board
-A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location of manned aircraft in the area.
-Receives information such as position, altitude, speed, etc. which can all be viewed in Mission Planner.
-Through settings, you can optionally set up your cube to allow the drone to automatically avoid aircraft that are within an exclusion zone.

Your Purchase Include

1x Cube Orange
1x ADS-B Carrier Board
1x Power Brick
1x Cable Set
1x Here 3 GNSS(M8N) GPS Unit
1x GPS1 Port Connector
