Description
Precision Landing System is for drone landing on point or on moving platform. The benefits of Precision Landing in Drone Operations The ability to navigate with reliability, stability and precision is a core requirement for autonomous drone operations. Landing, in particular, must be done precisely, whether on a charging pad or a target docking station. For long duration, repeatable, BVLOS missions, customers usually deploy drone-in-a-box solutions with landing platforms. Such drone ground stations require the drone to take-off, hover and land very accurately. Precision landing can be further complicated due to indoor operations with weak/no GPS, or landing on moving platforms. Precision Landing System enables the drone to accurately land in such scenarios.
Precision Landing System for UAV is released which adopts active vision mode, multi-sensor fusion technology and advanced flight control algorithm.The system has good stability, strong anti-interference ability, and compatible with a variety of flight controllers, such as Pixhawk, PX4, DJI A3/N3 etc. The drone equipped with this system can realize the autonomous take-off and landing in a very small range. The landing accuracy is controlled within 10cm. The system is widely used in logistics, rescue and inspection. The use of this system makes it possible for UAV to realize unattended operation.
Specification:
Landing accuracy: ≤ 10cm;
Radar measurement height: >50m;
Detection accuracy: ± 0.02m;
Max. Visual recognition height: 25m;
Working voltage: DC12V-28V;
System power consumption: 5-10W;
Weight: 300g(air unit); 380g(ground unit)
Size: 135x100x35mm(sky end),135x100x45mm(ground end )
Features:
-The landing accuracy is high, and the precision is controlled within 10cm.

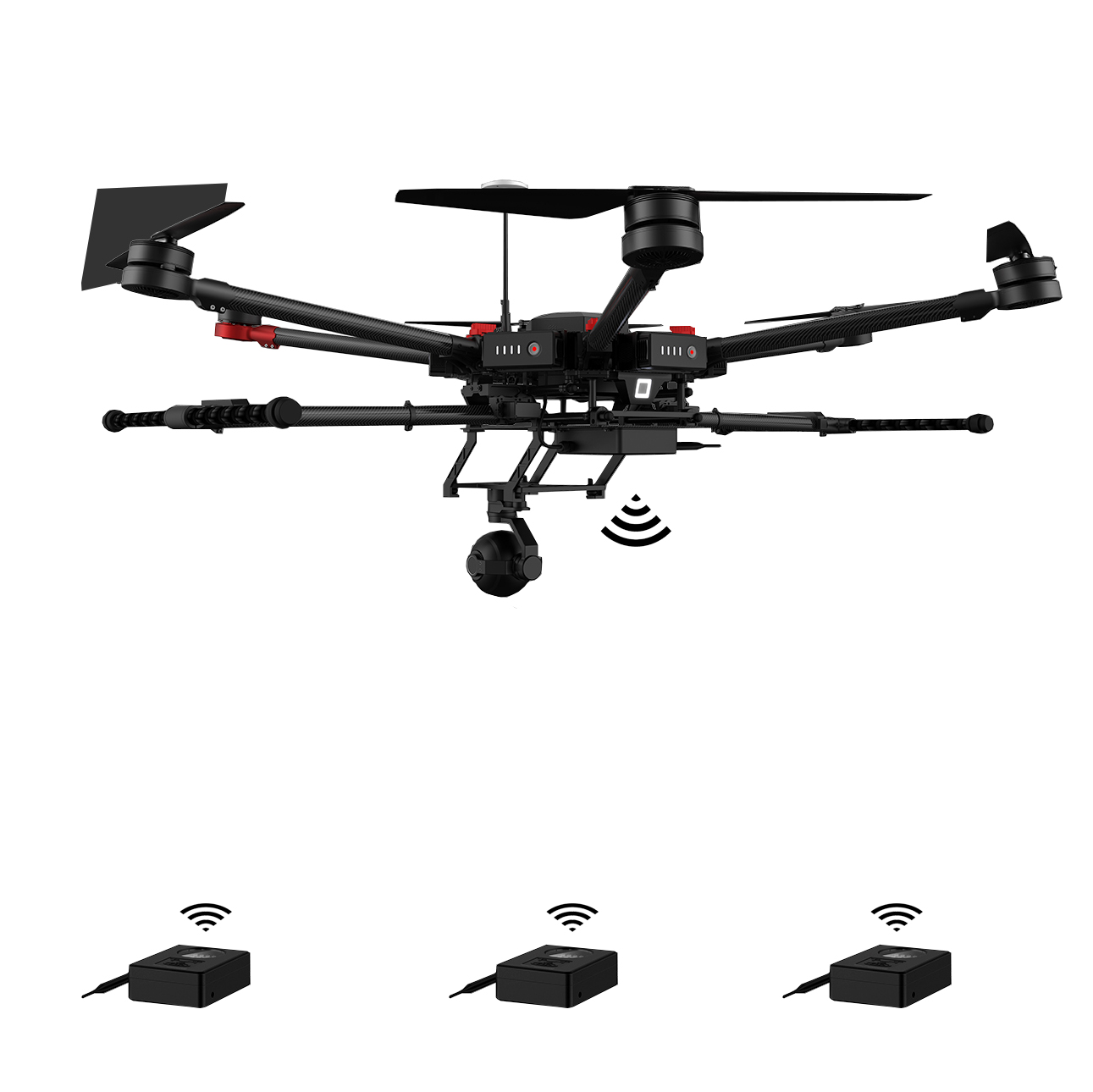

-The ground end supports networking communication and supports multiple ground terminals.
-High stability, strong anti-interference ability, can work in an all-weather environment.
Your Purchase Includes:

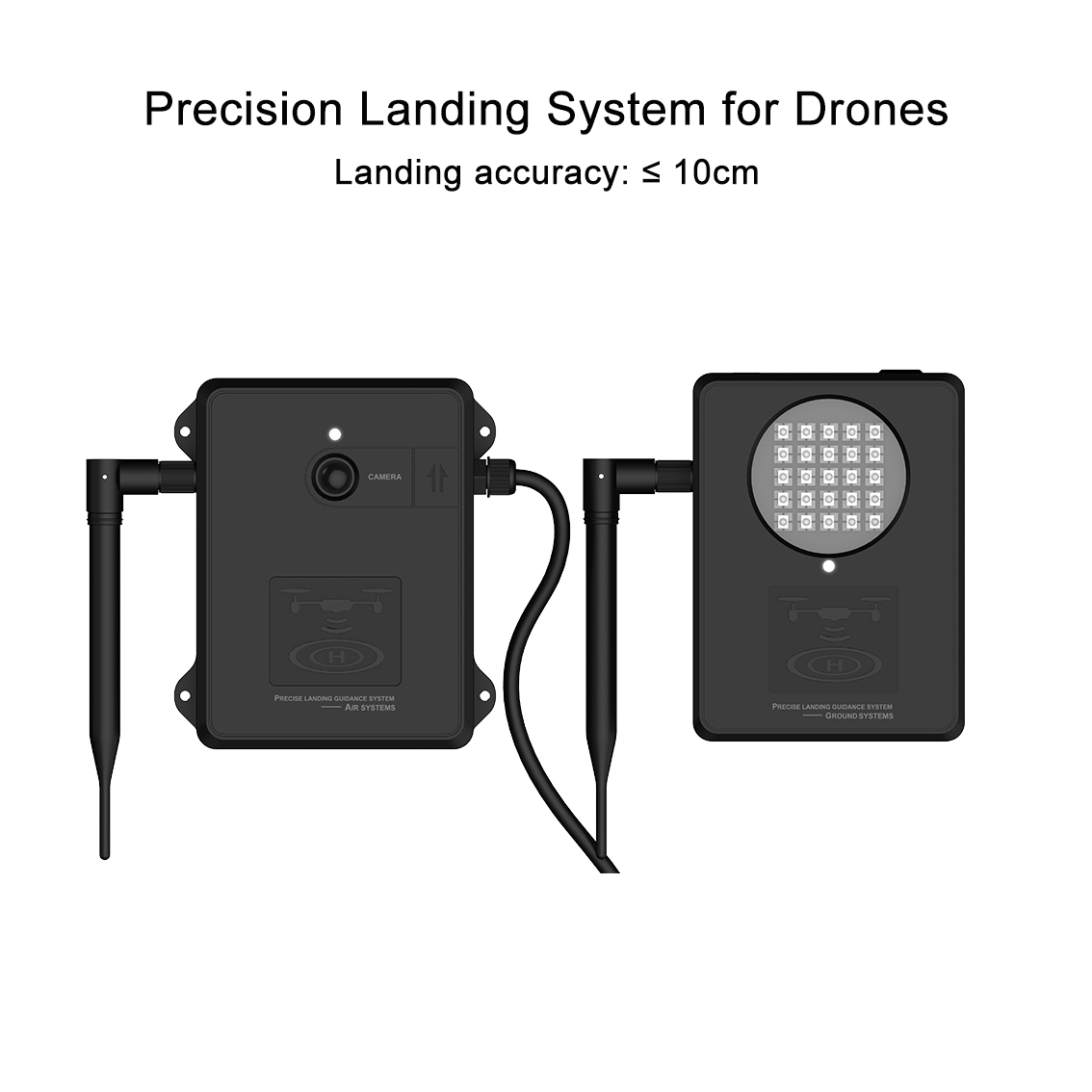

1x Precision Landing System Air Unit
1x Precision Landing System Ground Unit
