Description
Introduction

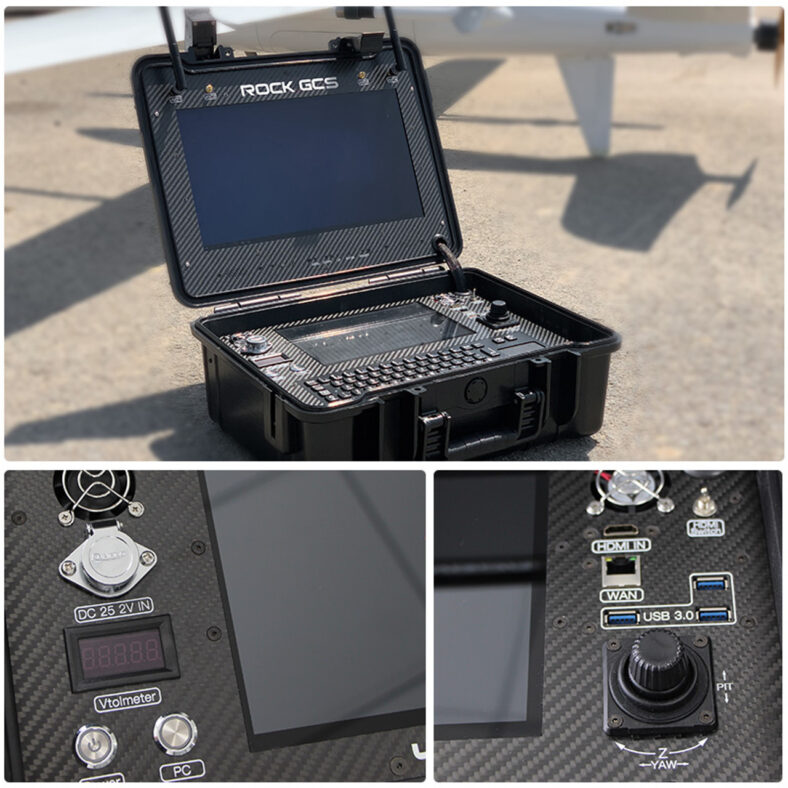

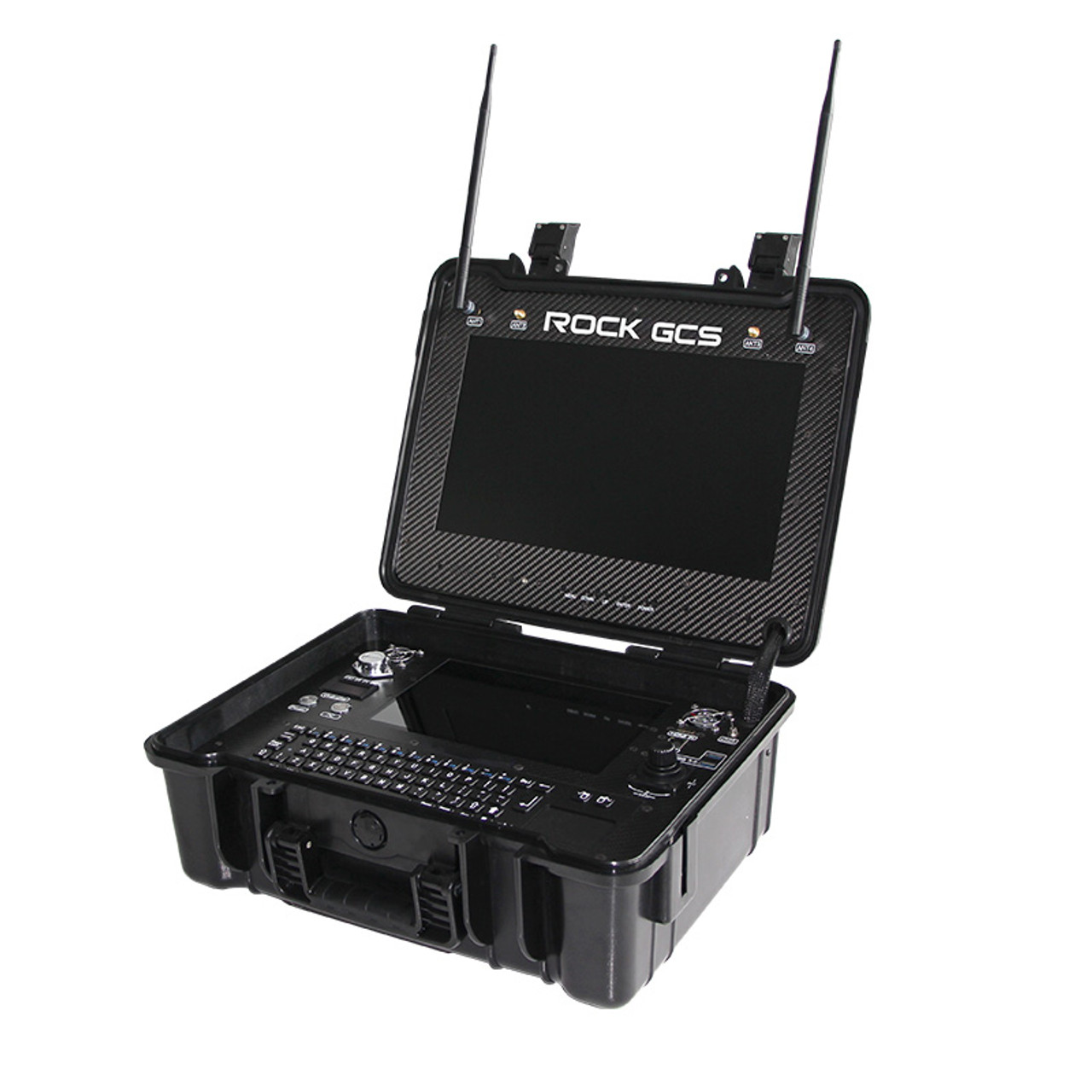

ROCK ground station is a rugged and powerful ground station for industrial-grade drones. It features a professional layout and can realize functions like radio control, data transmission, and video transmission (optional), etc., which can be controlled separately.
Specification
| Processor | Intel i5 / 1.6G frequency |
| Memory | 8G |
| SSD | 120G |
| Display | 15.6 inch monitor /10 inch touch screen |
| Battery operation time | 4 hours |
| Case feature | Rugged plastic case, carry handle, pressure purge valve |
| Battery type | 21700 Li-ion battery |
| Battery capacity | 6S 15000mAh |
| DC power output | 12V |
| Weight | 8.97kg |
| Dimension | 460 x 350 x 185mm |
| Operating temperature | -20°C to +60°C |
15.6-inch bright daylight monitor
Not only can you get live video streaming from the high-brightness monitor, but it also can set the contrast, brightness, and other functions through the buttons of the ROCK ground station.

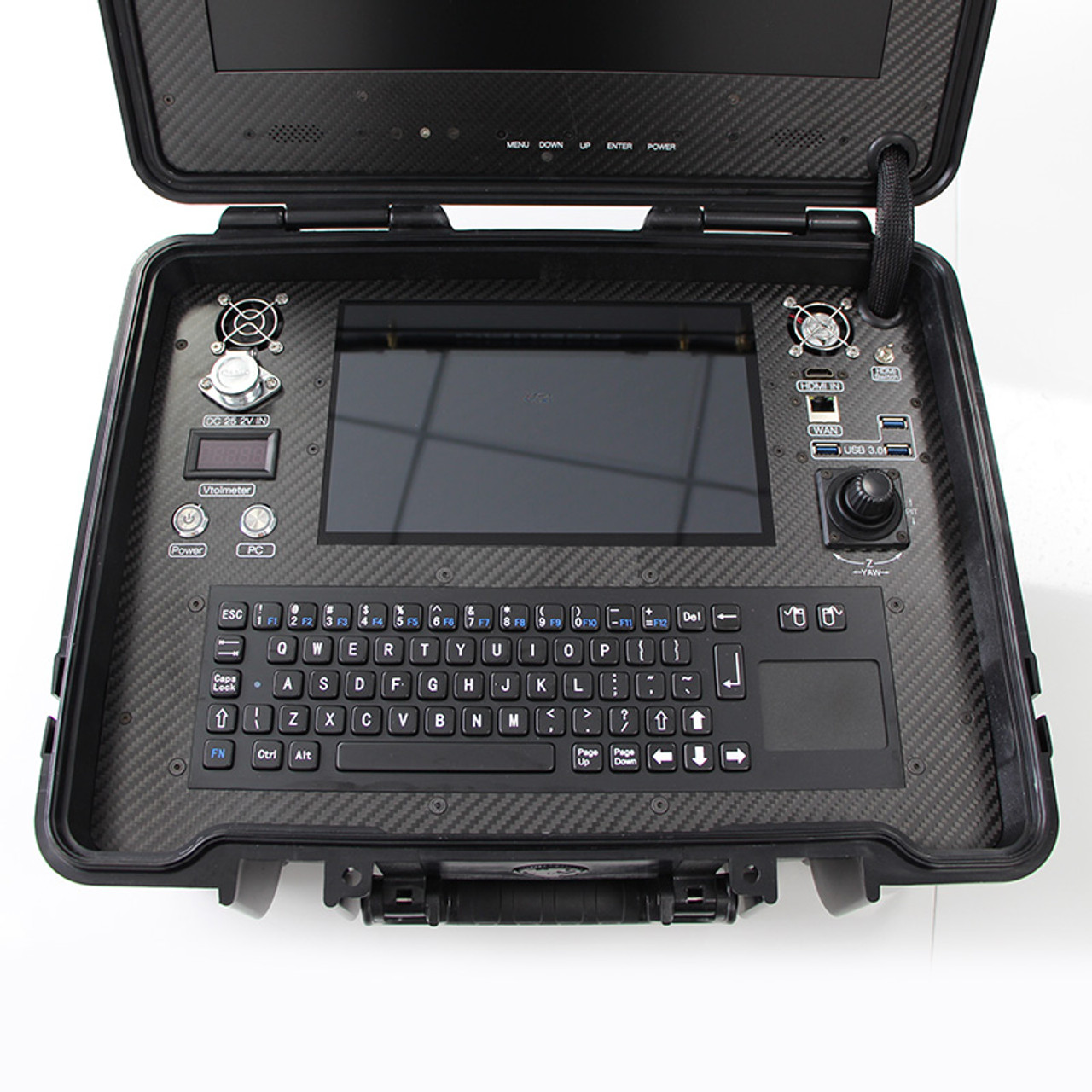

10-inch touch screen
The ROCK ground station comes with a 10-inch touch screen where you can configure waypoints and flight routes. Furthermore, the touch screen is easy to use and sensitive due to the build-in i5 computer processor.
High-temperature resistance
ROCK industrial drone GCS is adopting anti-high temperature materials, making it capable of standing max 60℃ temperature.
3-axis joystick
The joystick can be assigned to control the drone gimbal Yaw, Pitch, and Zoom.
4 hours long endurance
The professional drone ground station has a built-in 6S 15000mAh Lithium battery for 4 hours endurance. Furthermore, you can get the power for the ground station through one charger to have unlimited operation time.
Computer customizable
The internal computer of ROCK GCS accepts customization. For example, the CPU has Intel i3/i5/i7 options, the memory has 4G/8G options, and SSD has 60G/120G/240G/480G options.
What is included
1 x ROCK Ground Station
Items compatible(not included)
Long range video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
Dimension
