Description
Introduction

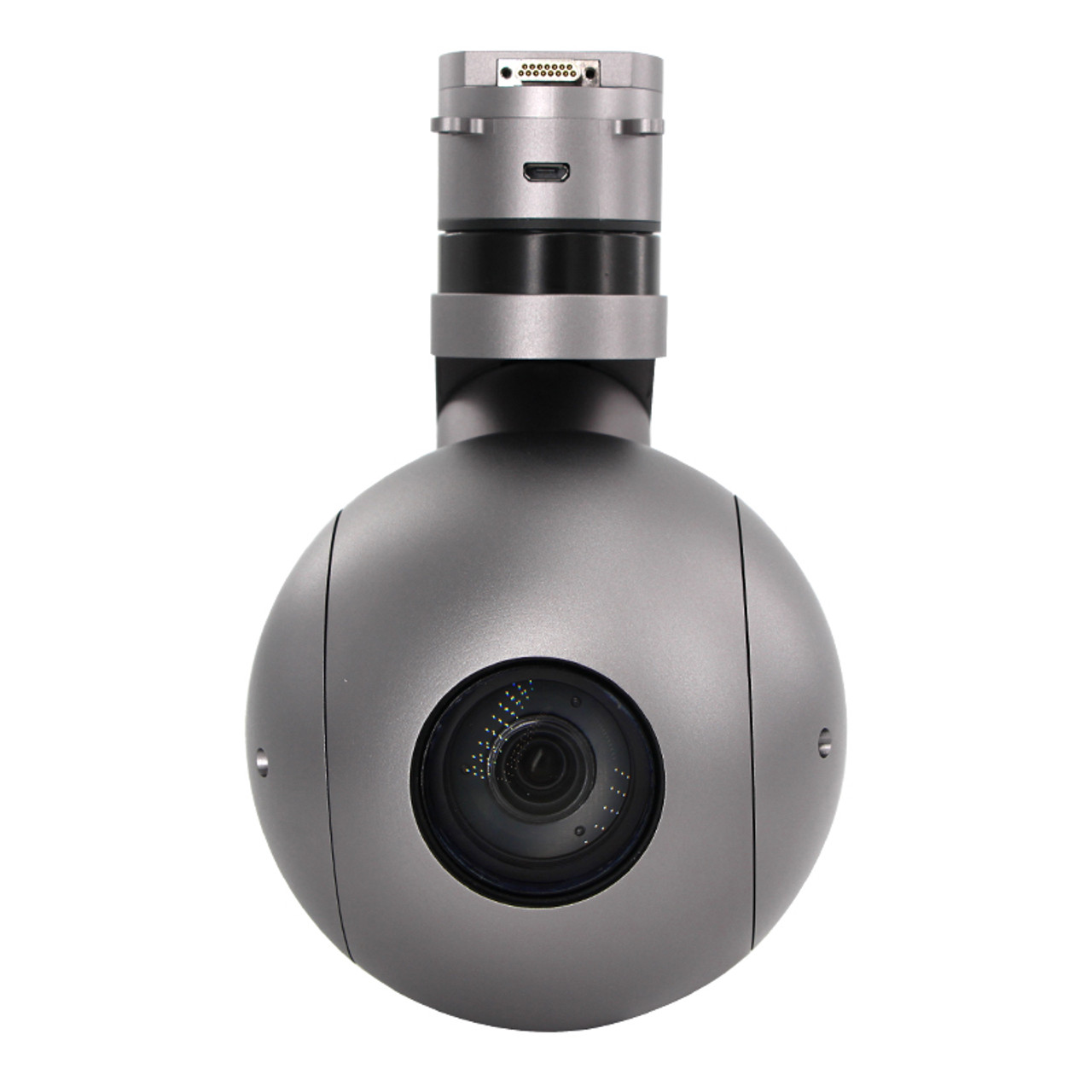

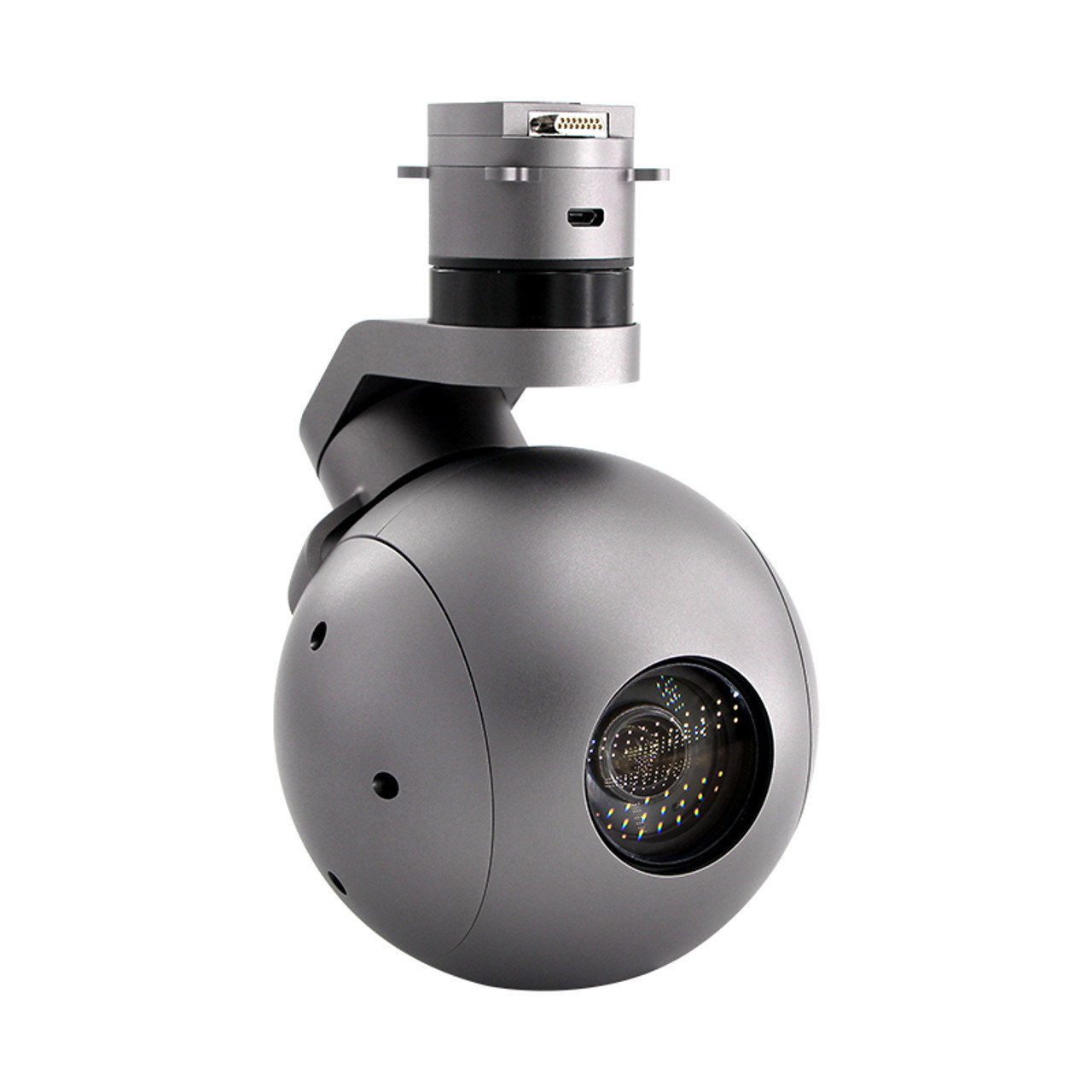

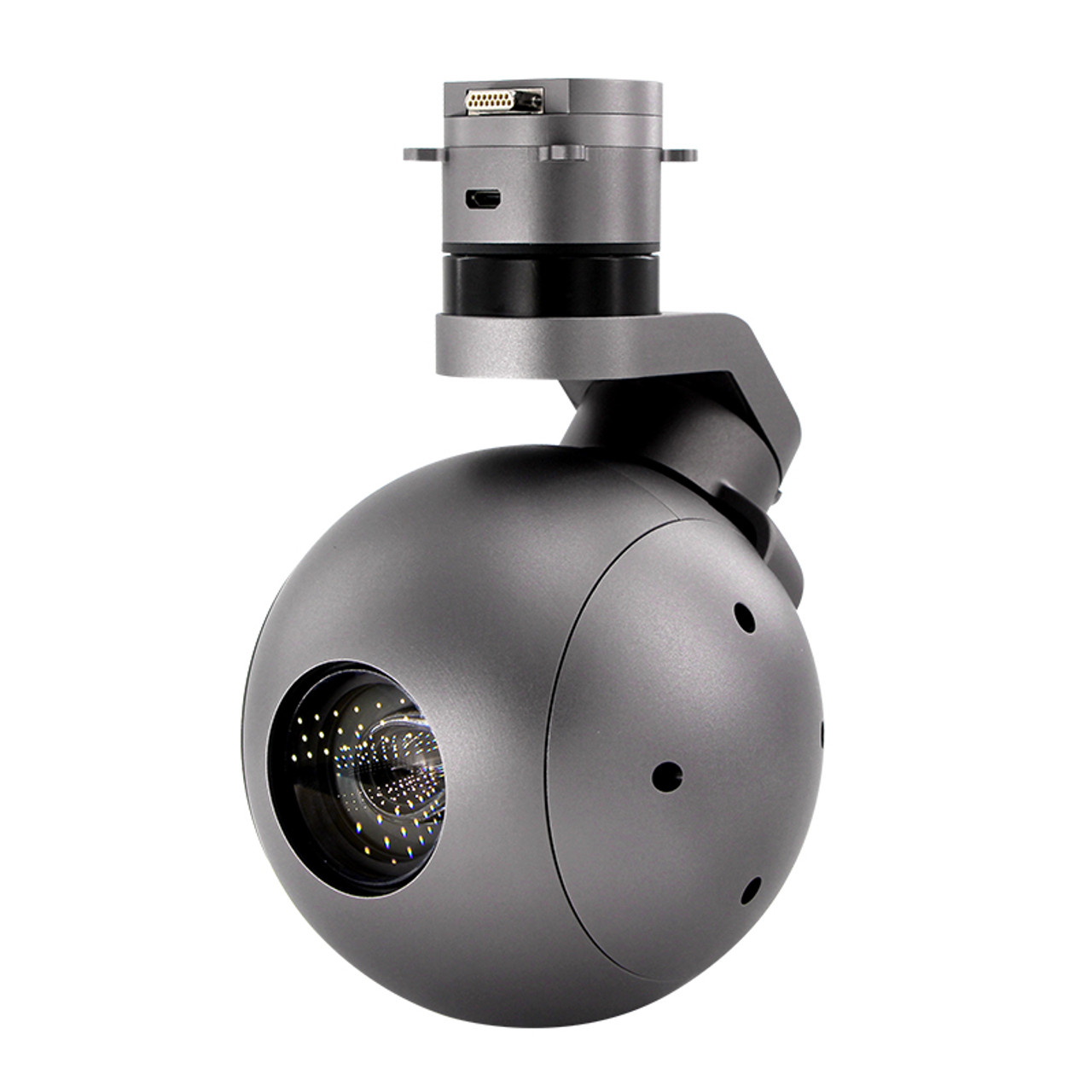

Sky Eye-30HZ-S is a 3-axis high stabilized gimbal with 1080P 30X zoom camera for drone inspection, surveillance, search and rescue applications. The camera block is SONY FCB-EV7520, which provides 1080P 60FPS full HD video streaming and up to 360X zoom capability and will enable you to see every detail you need in the air even you are far away from the object.
Specification
| 30X zoom camera(SONY FCB-EV7520) | |
| Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Video Output | 1080P/60 HDMI and Ethernet |
| Video recorded | 1080P/30 MP4 |
| Focal length | 30X optical focal zoom, 4.3-129mm |
| Digital zoom | 12X(360X with optical zoom) |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) | |
| Wide Dynamic | Up to 105dB |
| Auto focus | Less than 1S |
| Low illumination | 0.05lux@F1.6 |
| Aperture | Φ 16.0 |
| Gimbal system | |
| Input voltage | 3S-4S |
| Rotate range | Pitch: ±90° Roll: ±45° Yaw: ±150° |
| Angle amount of jitter | Pitch and roll: ±0.02° Yaw: ±0.03° |
| Control interface | PWM, S.Bus, serial command, and software control via Ethernet |
| Working Current | Static current: 330mA(@12V) Dynamic current: 450mA(@12V) |
| Mechanical feature | |
| Total weight (gimbal and camera) | 848g |
| Working temperature | -25° ~ +60° |
Powerful zoom capability
30x optical zoom, 12x digital zoom, 1080P 30fps video streaming.
High-precise 3-axis gimbal with 360-degree rotation
Powered by a dedicated sensor, the high-performance 3-axis gimbal has a control accuracy of ±0.02°, giving you crystal clear video footage.
Auto object tracking
Based on cross-correlation, tracking and object miss recapturing algorithm, Sky Eye-30HZ-S 30x daylight zoom camera can realize continuously stable tracking.
Simple gimbal control
The 3-axis drone gimbal supports S.bus, TTL serial port, and ethernet.
Clean wiring
The 30x daylight drone zoom camera have only one cable for the data and video transmission, making your internal wiring simple and clean.
Born for multiple flight platforms
The streamlined aerodynamic design of the gimbal can significantly reduce air drag during the flight, making it a perfect fit for multicopter and VTOL fixed-wing flight platforms.
MAVLINK compatible
Sky Eye-30HZ-S drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration relatively convenient.
What is included
1 x Sky Eye-30HZ-S 30X optical zoom camera
1 x Sky Eye-30HZ-S 3-axis high stabilized gimbal system
