Description
Introduction

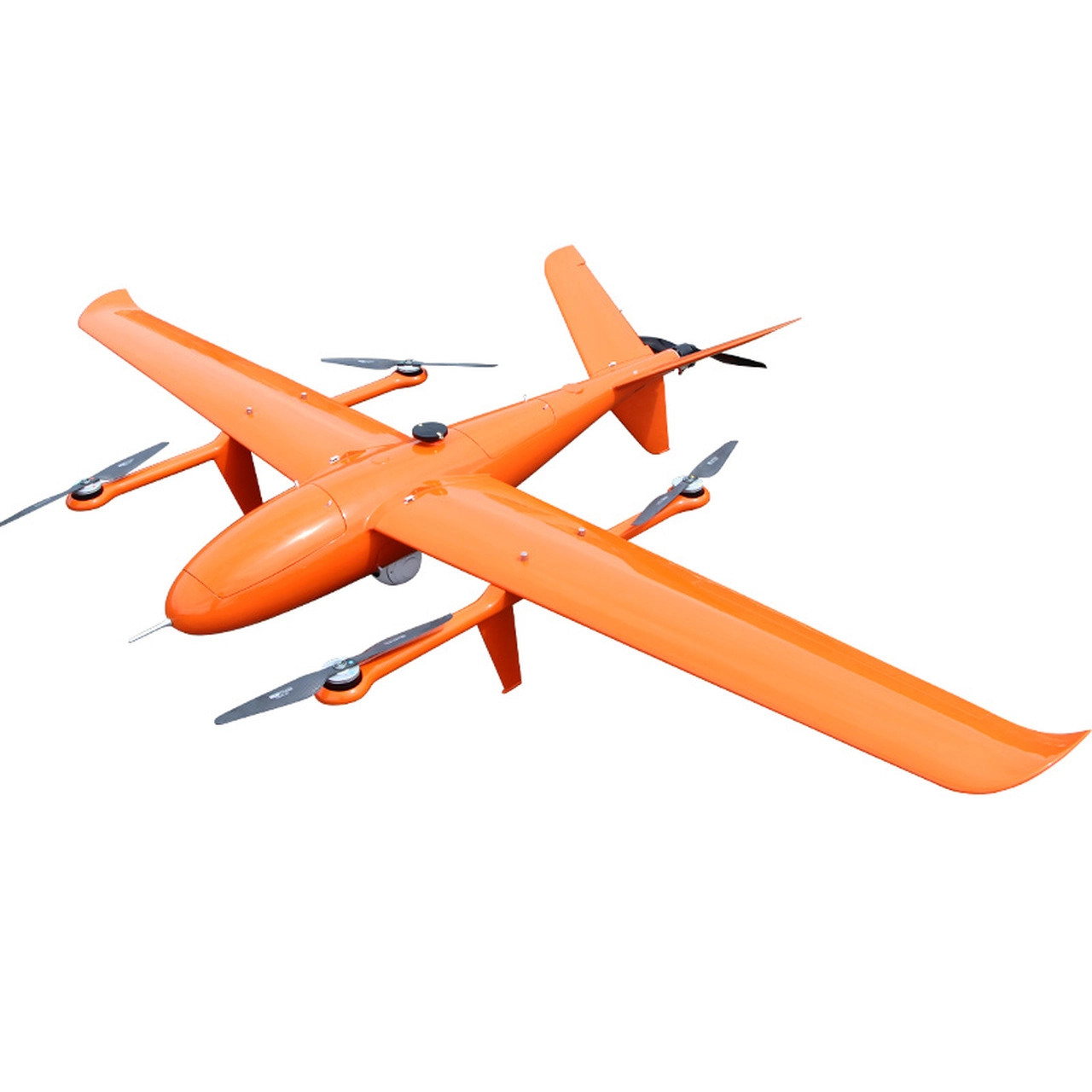

Sky Fury airframe is a full electric VTOL UAV flight platform and designed for long-range security & surveillance, search & rescue, survey & mapping applications.
Full carbon fiber airframe
Sky Fury VTOL drone airframe is made of full carbon fiber, which makes it rugged and durable enough for long-time flight.
Specification
MTOW | 13.5kg |
Weight w/o battery and payload | 6.58kg |
Wingspan | 2,500 mm |
Length | 1,260 mm |
Height | 195 mm |
Frame weight | 3.2kg |
Max payload (battery included) | 6.92kg |
Battery weight (2 x Tattu 6S 25000mAh HV Lipo) | 4.72kg |
Suggested payload weight | 1.2kg |
Endurance (12.5kg take-off weight) | 3 hours 20 minutes |
Cruise speed | 68.4-108km/h |
Max speed | 150km/h |
Stall speed | 55.8km/h (57.6km/h @ Roll 25° / Pitch 15°) |
Minimum Circling Radius | 120m @ 68.4km/h ( Roll 18° ) |
Anti-wind capability | 43.2km/h |
Operating Altitude(Max.) | 3,500m ASL |
Operating Temperature | -20℃~45℃ |

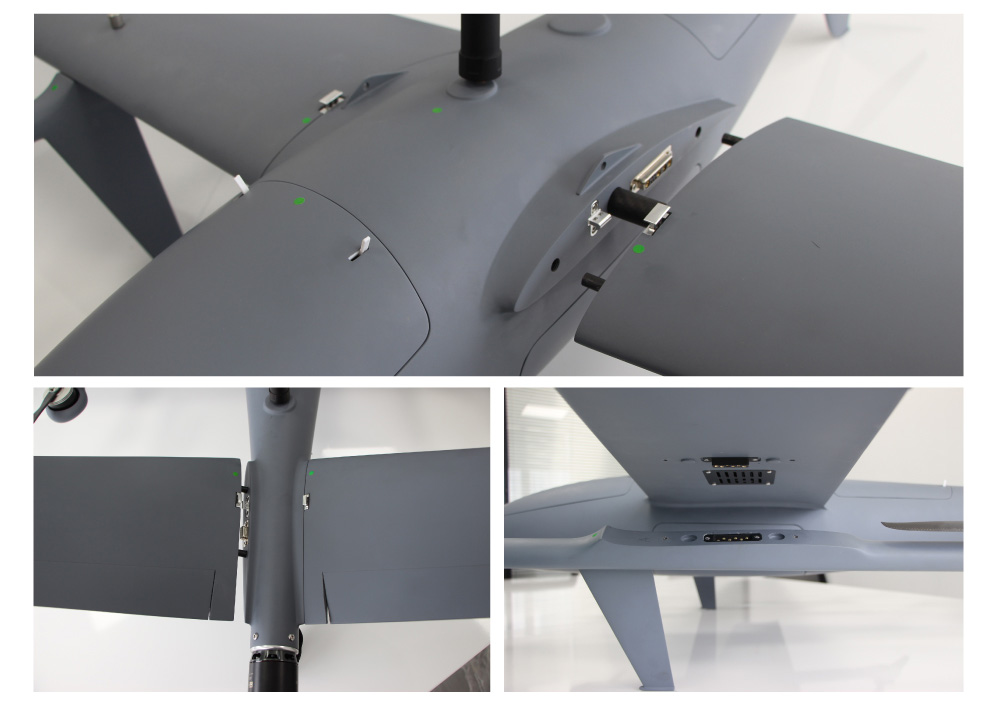

Quick detach design
The fixed-wing UAV airframe is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy.
Over 3 hours of endurance
The long-range VTOL UAV features an outstanding aerodynamic design on both airframe and landing gear, which allows the drone to fly 3 hours and 20 minutes with one 1.2kg payload.

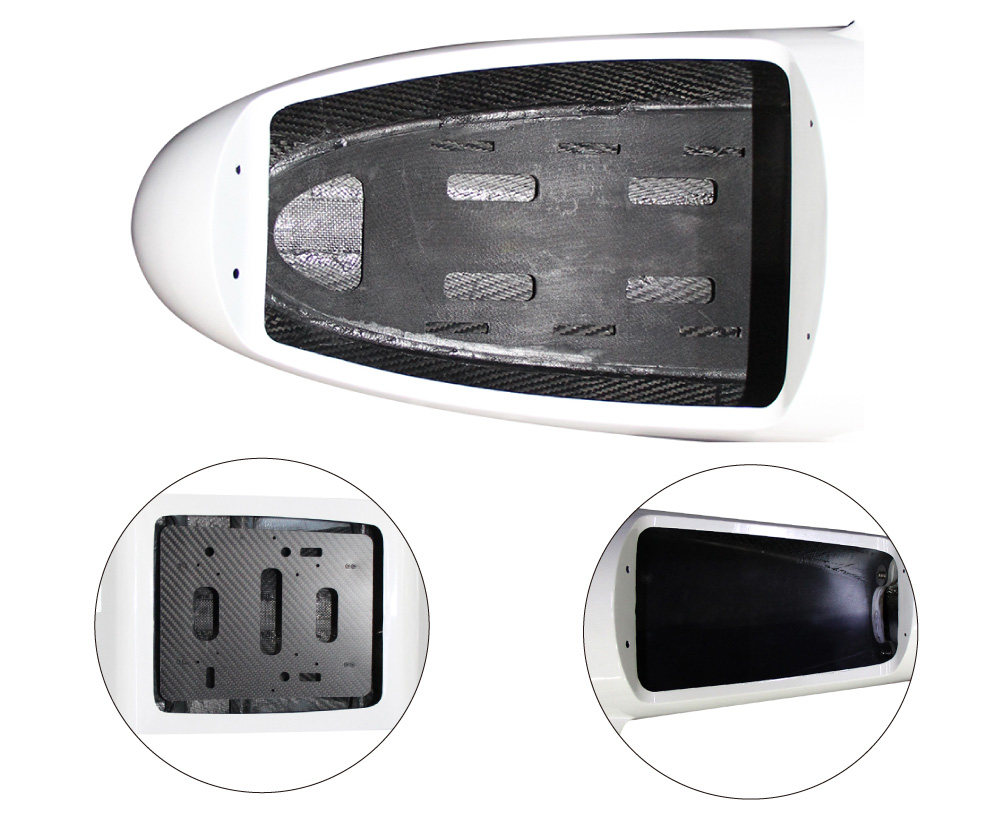

Cutting edge manufacturing process
Sky Fury Airframe Includes
1 x Fuselage
1 x Left wing
1 x Right Wing
1 x Left motor arm with landing gear
1 x Right motor arm with landing gear
1 x Left tail
1 x Right tail
1 x Cargo bay
1 x Front cover
1 x Rear cover
1 x Quick-release plug and pin package
1 x Aviation box
Sky Fury Airframe With Propulsion System Includes
1 x Fuselage
1 x Left wing
1 x Right Wing
1 x Left motor arm with landing gear
1 x Right motor arm with landing gear
1 x Left tail
1 x Right tail
1 x Cargo bay
1 x Front cover
1 x Rear cover
1 x Quick-release plug and pin package
4 x T-motor lift motor
1 x T-motor fixed-wing motor
4 x T-motor ESC for lift motor
1 x T-motor ESC for fixed-wing motor
2 x T-motor 1654 CF Propeller CW&CCW
1 x CF 17×12 Propeller CW
4 x KST Servo
1 x Wiring service
1 x Aviation box
Items compatible (not included)
Compatible battery: 2 x 6S Tattu 25000mAh 6S 25C 22.8V High Voltage Lipo Battery, or 2 x Thunder Stone 30000mAh 22.2V 3C 6S1P Solid State Li-Ion Battery
Flight controller: Pixhawk Cube Orange, CUAV V5+, CUAV X7 and X7 Pro, AheadX Taurus 2, AheadX LEO 2
Avionics parts: Power Distribution Board, Orange Cube Carrier Board
Flight planning and control software: LAUNCH ground control software
Ground control station: ROCK GCS
Radio controller: YR16S Radio Controller
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
VTOL Drone Size
Packing List
Packing Dimension
