Description
Introduction

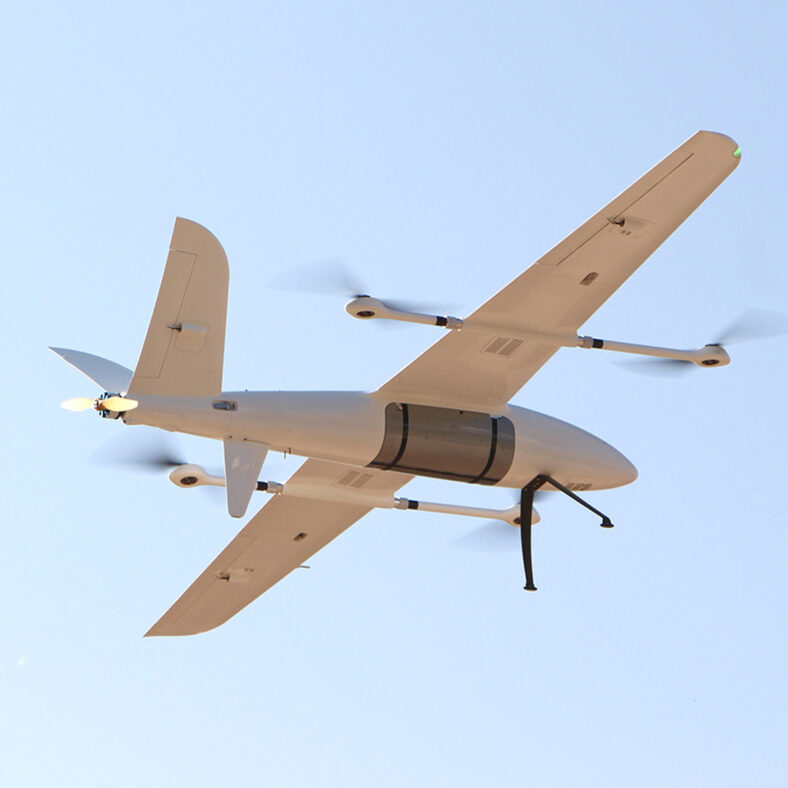

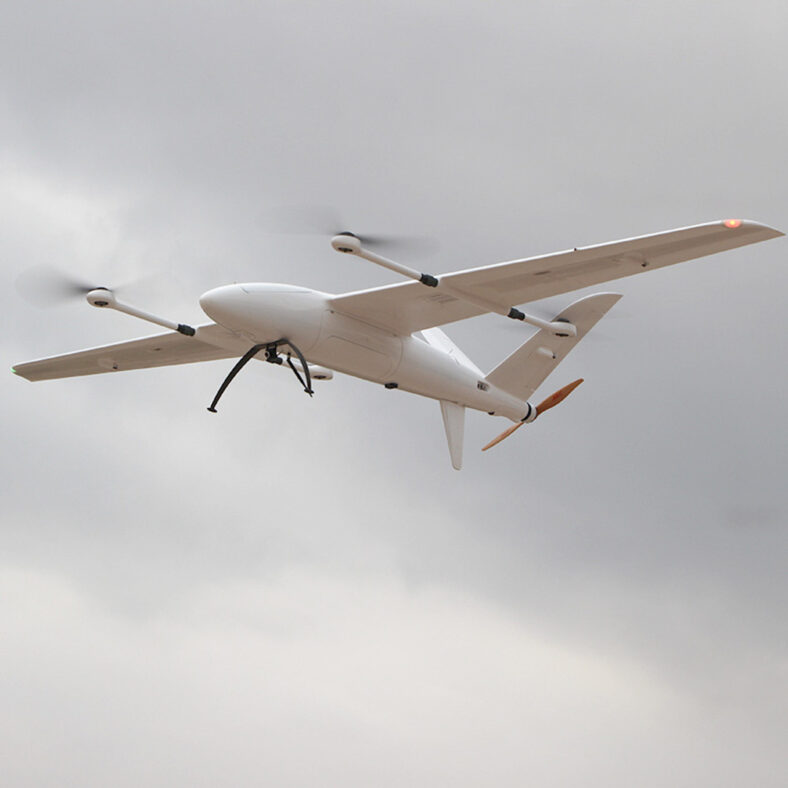

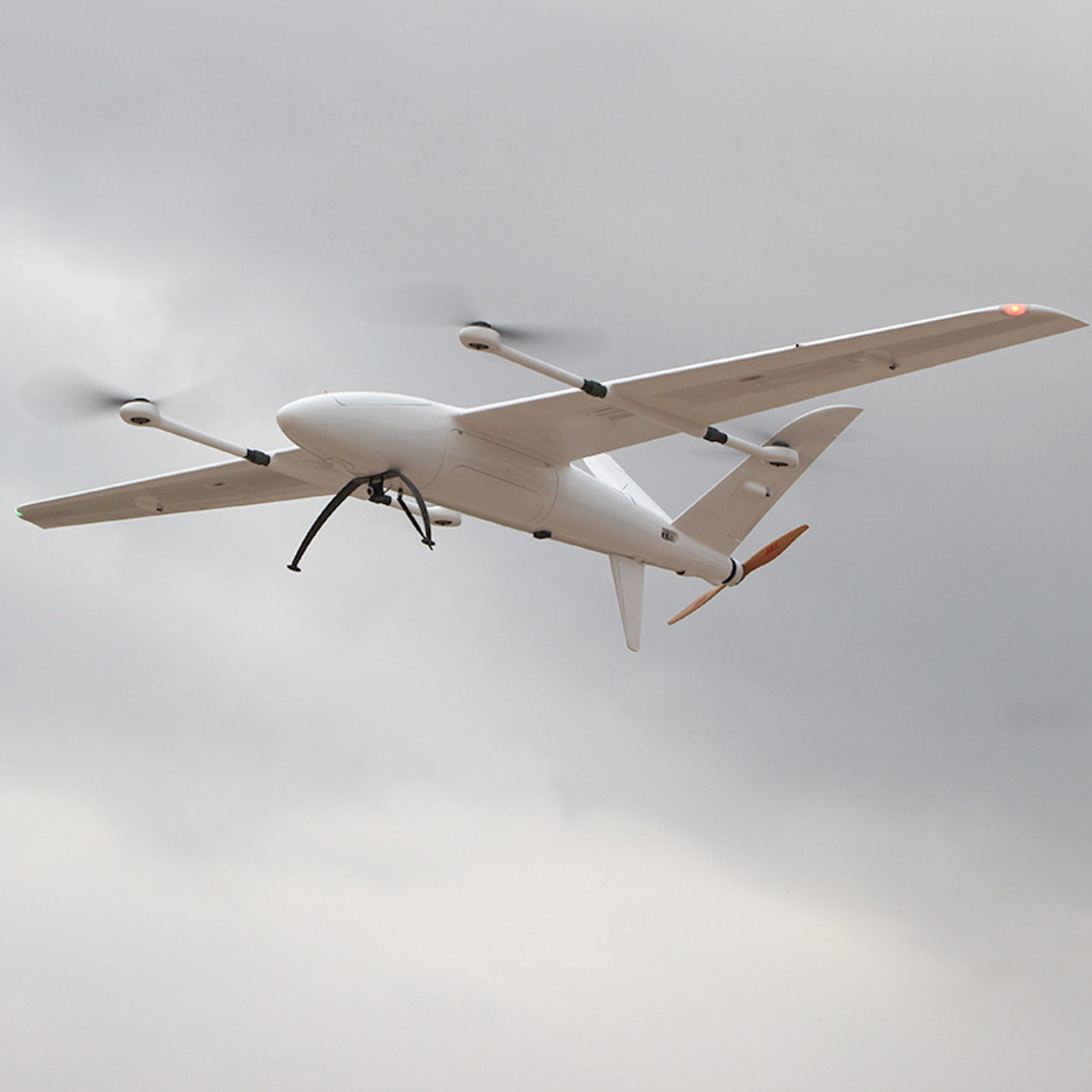

Sky Whale heavy-lift electric VTOL drone airframe is specially developed for LiDAR mapping, long-range cargo delivery & transport and security & surveillance.
Specification
| MTOW | 34kg |
| Weight w/o battery and payload | 16kg |
| Wingspan | 3,914mm |
| Length | 1,920mm |
| Height | 750mm |
| Frame weight | 7.45kg |
| Max payload (battery included) | 17.7kg |
| Battery weight (Tattu 6S 32000mAh) | 7.2kg |
| Suggested max payload weight | 10kg |
| Endurance | 3.5 hours (2kg payload) / 2 hours (6kg payload) / 90min (10kg payload) |
| Cruise speed | 75-90km/h |
| Max speed | 120km/h |
| Stall speed | 57.6km/h |
| Max ascend speed | 14.4km/h |
| Max descend speed | 18km/h |
| Anti-wind capability | 43.2km/h |
| Operating Altitude(Max.) | 4,500m ASL |
Heavy-lift and long-endurance
Sky Whale VTOL drone can fly 3.5 hours with 2kg payload, 2 hours with 6kg payload and 90 minutes with 10kg payload.
Fast deploy
The fixed-wing UAV is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy. In this case, the Sky Whale VTOL plane can be set up in 3 minutes by a single man.
Quick-release cargo bay
This design will give you more flexibility to switch among different payloads, like a surveillance camera, LiDAR, or medical supplies.
Weatherproof
Due to its anti-water design on the fuselage and air speedometer, the Sky Whale VTOL drone is weatherproof and can reach an IP54 rating. In this case, the waterproof VTOL aircraft can carry out urgent missions on rainy days, like search and rescue.
Working day and night
Sky Whale can be easily identified in the air with onboard aviation lights, especially at night.
Cutting edge manufacturing process
Sky Whale Airframe Includes
1 x Front fuselage
1 x Rear fuselage with left & right tail
1 x Left wing
1 x Right Wing
1 x Left middle wing with motor arm
1 x Right middle wing with motor arm
1 x Front & rear landing gear
1 x Cargo bay
1 x Front cover
1 x Rear cover
1 x Quick-release plug and pin package
2 x Aviation box
Sky Whale Airframe With Propulsion System Includes
1 x Front fuselage
1 x Rear fuselage with left & right tail
1 x Left wing
1 x Right Wing
1 x Left middle wing with motor arm
1 x Right middle wing with motor arm
1 x Front & rear landing gear
1 x Cargo bay
1 x Front cover
1 x Rear cover
1 x Quick-release plug and pin package
4 x Lift motor
1 x Fixed-wing motor
4 x ESC for lift motr
1 x ESC for fixed-wing motor
2 x 26 inch CF Propeller CW&CCW
1 x 22 inch CF Propeller CW for fixed-wing motor
4 x Servo
1 x Wiring service
2 x Aviation box
Items compatible (not included)
Compatible battery: 2 x Gens Tattu 32000mAh 22.8V 10C 6S1P High Voltage Lipo Battery Pack, or 4 x Thunder Stone 30000mAh 22.2V 3C 6S1P Solid State Li-Ion Battery
Flight controller: Pixhawk Cube Orange, CUAV V5+, CUAV X7 and X7 Pro, AheadX Taurus 2, AheadX LEO 2
Flight planning and control software: LAUNCH ground control software
Ground control station: ROCK GCS
Radio controller: YR16S Radio Controller
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
Size And Packing Dimension
