Description
Introduction

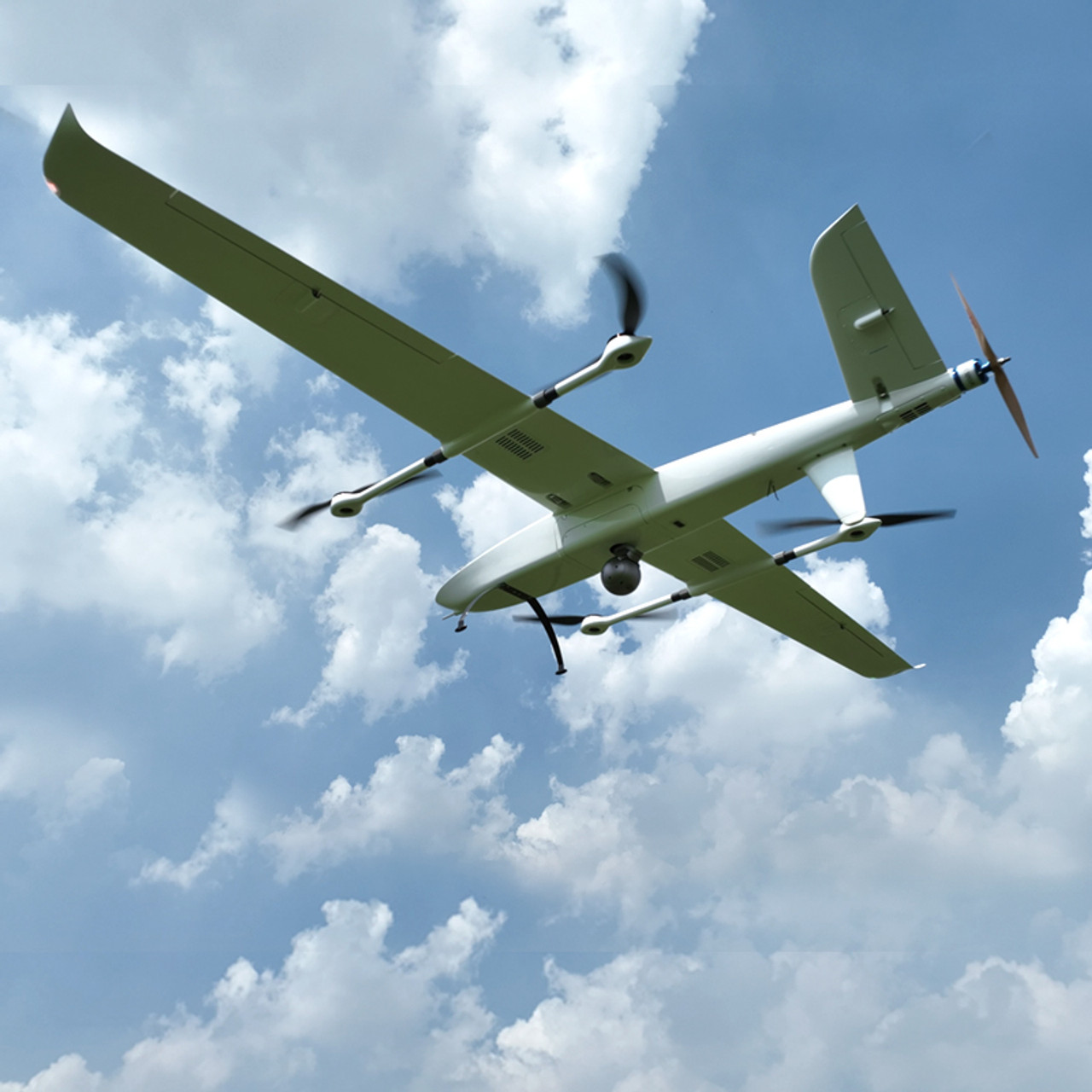

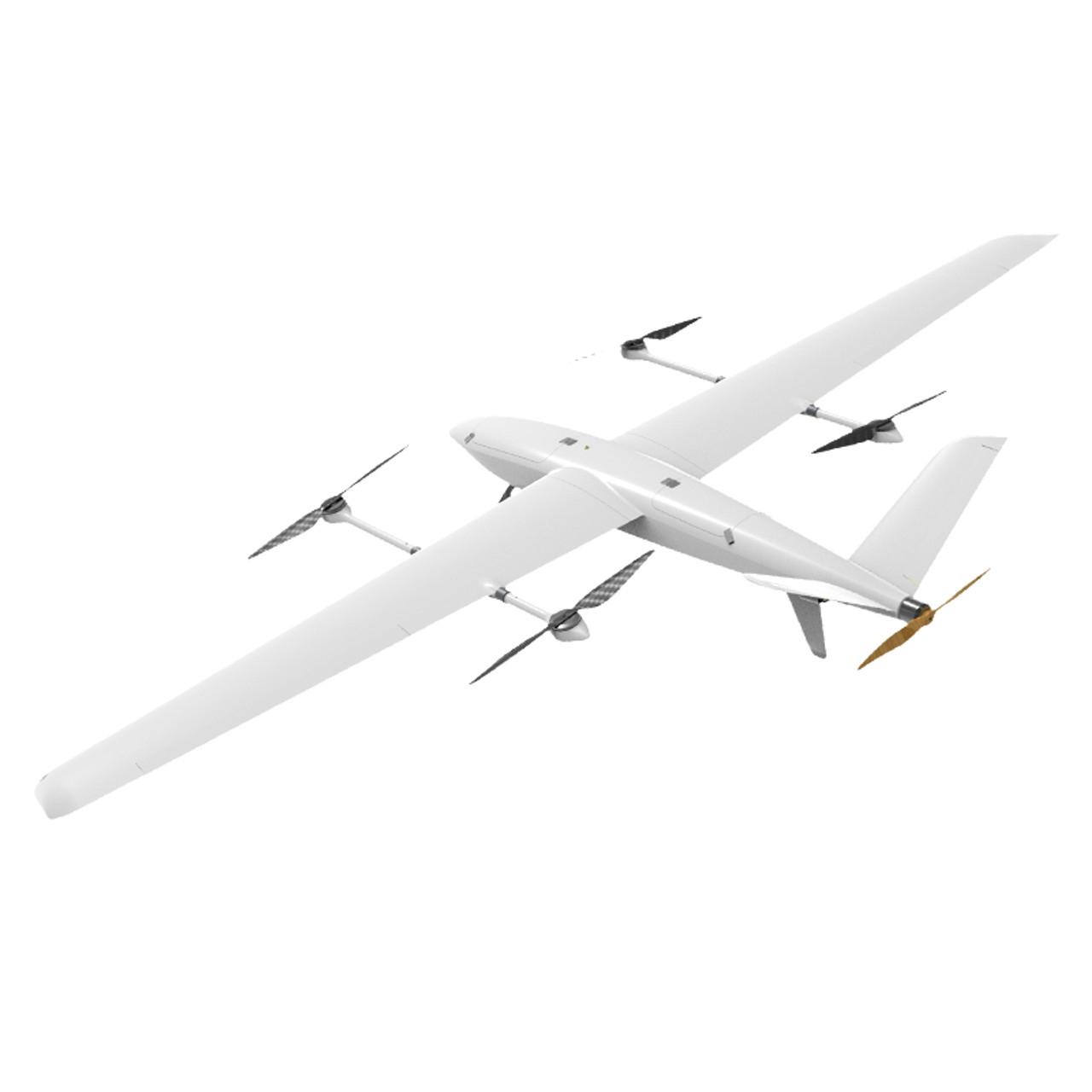

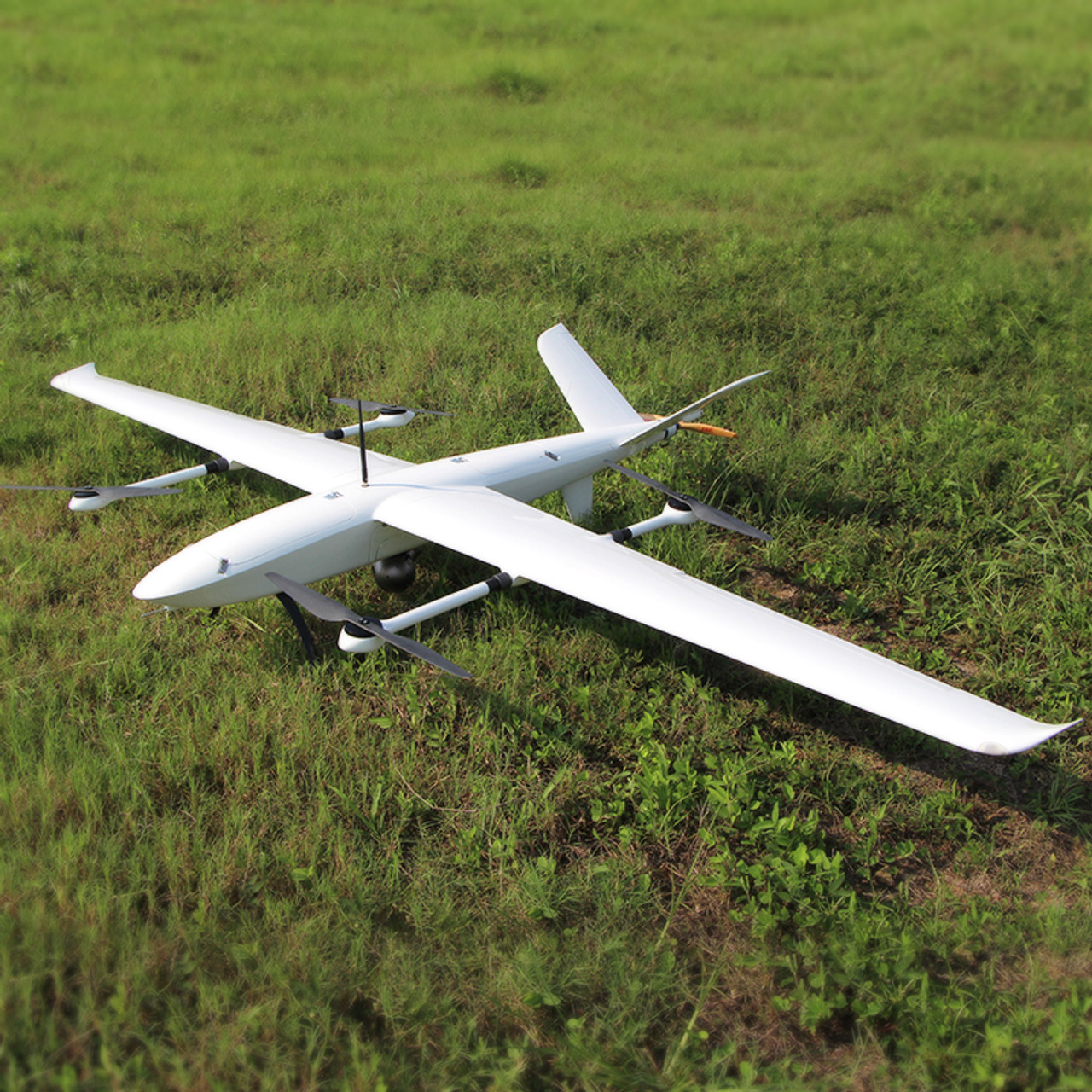

Sky Whale Mini full electric VTOL (vertical take-off and landing) fixed-wing drone, the unique design of its type in the world, brings the cutting-edge technology innovation in the UAV industry. Aerodynamic design, 3 hours long endurance, weatherproof structure, and reliable avionics system, make it an ideal UAV platform for mapping applications.
Specification
| MTOW | 18.5kg |
| Weight w/o battery and payload | 10kg |
| Wingspan | 3,378mm |
| Length | 1,670mm |
| Height | 180mm |
| Max payload (battery included) | 8.5kg |
| Battery weight ( solid-state 6S 30000mAh) | 5.14kg |
| Suggested payload weight | 2kg |
| Endurance | 193minutes / 2kg |
| Cruise speed | 75-100km/h |
| Max speed | 120km/h |
| Stall speed | 57.6km/h |
| Max ascend speed | 14.4km/h |
| Max descend speed | 18km/h |
| Anti-wind capability | 43.2km/h |
| Operating Altitude(Max.) | 3,500m ASL |
Fast deploy
The fixed-wing UAV is adapting the most advanced quick-detach technology on both airframe and cable connector, making assembly and disassembly becomes super easy. In this case, the Sky Whale Mini VTOL plane can be set up in 3 minutes by a single man.
Quick-release cargo bay
This design will give you more flexibility to switch among different payloads, like a surveillance camera, LiDAR, or mapping camera.
Weatherproof
Due to its anti-water design on the fuselage and air speedometer, the Sky Whale Mini VTOL drone is weatherproof and can reach an IP55 rating. In this case, the waterproof VTOL aircraft can carry out urgent missions on rainy days, like search and rescue.
Built-in antenna
A video link antenna will be integrated inside the back landing gear, making the fuselage more compact and straightforward. Also, a removable landing gear design will make maintenance much more accessible.
No piloting skills needed
The LAUNCH ground control software that Sky Whale Mini VTOL drone uses is developed for beginners, so a pilot without any flight experience can fly the drone well.
Working day and night
Sky Whale Mini can be easily identified in the air with onboard navigation lights, especially at night. Also, the navigation lights can be turned on/off manually on the LAUNCH drone ground control software.
Built-in TOF landing assistance
The landing is gentle and safe with one 8m range radar detection device.
Onboard ADS-B
Equipped with ADS-B, Sky Whale Mini’s GPS coordinate will be displayed on the air traffic control system.
Compass calibration-free (differential GPS)
The pilot does not need to do compass calibration on the Sky Whale Mini VTOL UAV, saving lots of time in emergency tasks. Furthermore, the fixed-wing VTOL won’t get affected by surrounding electromagnetic interference (EMI) anymore since the compass is replaced by DGPS, significantly improving the VTOL flight stability in the air.
Versatile airborne platform
Thanks to its excellent stability and powerful payload-lift capability, Sky Whale Mini VTOL can be used in mapping, search, rescue, and surveillance applications.
