Description

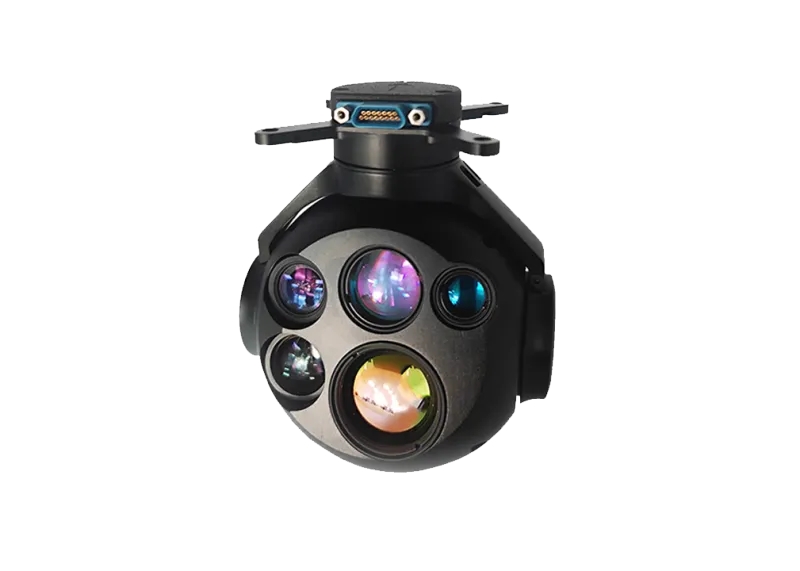

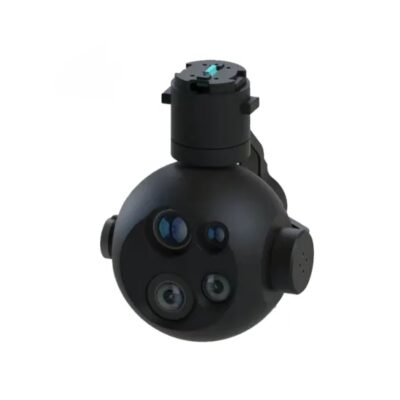

The tactical low light pod is a highly advanced multifunctional device. It has an internal tracking module that can accurately track moving targets. With its visible light, infrared, and laser ranging capabilities, this compact and lightweight pod is perfect for day and night observation and use.
Product highlights:
1、7.2/25mm main lens EO+24mm main lens IR: This pod is equipped with high-quality EO main lens and IR main lens, providing excellent visual clarity in use.
2、3 kilometers laser ranging: With advanced laser ranging technology, the tactical low light pod can provide precise distance measurement of up to 3 kilometers, achieving precise target positioning and tracking.
3、Tracking function: The pod tracking module has high accuracy and can seamlessly detect and track targets.
4、12~28V power input: This pod is compatible with multiple power sources and can be easily integrated into various drone systems, ensuring reliable and efficient performance.
5、Ethernet video output: The tactical low light pod provides convenient video output through Ethernet connection, achieving seamless data transmission and real-time detection.
6、Small size and low power consumption: This pod is designed with portability and efficiency in mind, with a compact appearance and low power consumption, making it an ideal choice for long-term flight.
Parameters
| MODEL | S2IVR-01 | S2IVR-02 | S2IVR-03 | |
| System specification | System type | Gyro stability | ||
| Weight | 410g | 510g | ||
| Stable system | Platform type | Two axle | Tri axis | |
| Azimuth | -110°～+110° | N×360° | ||
| pitch | -100°～+30° | |||
| Maximum search angular velocity | ≥100°/s | |||
| Stability accuracy | 0.1mrad(1°/2HZ) | |||
| Angular position accuracy | ≤0.3° | |||
| Visible light camera | Resolution and frame rate | 1920×1080 @60fps | ||
| BIG FOV | 42°×24.5°(7.2mm) | |||
| SMALL FOV | 12.7°×7°(25mm) | |||
| Infrared camera | Resolution and frame rate | 640×480@60fps | ||
| FOV | 18.1°×13.6°(24mm prime lens） | |||
| Ranging | Laser Ranging | Range≥3km;
Accuracy±1m |
||
| Tracking module | Frame rate | 60Hz | ||
| Tracking speed | ±48 Pixel/frame | |||
| System external interface | Control | RS232 | ||
| Video output | NET | |||
| Power supply | Power | 12～28V | ||
| Power consumption | Av≤15W，Max≤30W | |||
| Environmental conditions | Operating temperature | -40℃～+60℃ | -20℃～+60℃ | |
| Storage temperature | -50℃～+70℃ | |||
| shock resistance | ≥400g | |||
Dimensions
How it works:
The tactical low light pod utilizes advanced optical and laser ranging technology to provide unparalleled performance under all environmental conditions. By combining visible light and infrared imaging functions, this pod ensures accurate target recognition, tracking, and imaging. Its compact and lightweight design, as well as the integration of electronic components into a metal casing, ensure durability and reliability.
Frequently asked questions:
Q: What type of power input does it require?
A: This pod requires a power input of 12-28V, which can be provided by the drone’s power supply.
Q: Is the video output compatible with standard systems?
A: Yes, the tactical low light pod provides video output through an Ethernet connection, making it compatible with standard systems.
Q: Does this pod support target tracking?
A: Of course! This pod has excellent tracking function, which can seamlessly detect and track targets.
Q: What is the weight of this pod?
A: The tactical low light pod weighs less than 410 grams, ensuring minimal impact on the overall weight distribution of the drone and improving its performance.
