Description
Introduction
The Videopass-N60 is a long-range, point-to-point, point-to-multipoint broadband video and data transmission module, and range can reach up to 60KM. Adopting key technologies such as OFDM(Orthogonal Frequency Division Multiplexing), MCS adaptive modulation and coding mechanism, the long-range digital video and data link is developed based on the LTE wireless communication standard and does not depend on the operator’s base station.
2 datalinks in one
The Videopass-N60 has two Ethernet video channels and one telemetry channel.
2 frequencies
The video and data transmitter provides three frequencies to adapt to local regulation in different regions: 800MHz (806-826MHz), 1.4GHz (1427.9-1447.9MHz).
Ultra-low latency
Thanks to the flat system architecture, the latency of the video transmission is less than 150ms.
Specification
| Radio | |
| Frequency | 1427.9-1447.9MHz, 806-826MHz |
| Modulation | OFDM & MCS |
| RF power | Up to 37±2dBm / 5W |
| Bandwidth | 1.4MHz / 3MHz / 5MHz /10MHz /20MHz (adjustable) |
| Encryption | AES128 |
| Data rate | Max 30Mbps |
| Latency | Ethernet transmission ≤ 150ms, UART≤ 20ms |
| Range | 60km |
| Power | |
| Air unit | 22W, 24V DC |
| Ground unit | 22W, 24V DC |
| Size And Weight | |
| Size (air unit) | 161 x 59.2 x 25 mm |
| Size (ground unit) | 170 x 140 x 65 mm |
| Weight (air unit) | 226g (2 antennas are included) |
| Weight (ground unit) | 634g (2 antennas are included) |
| Connectivity | |

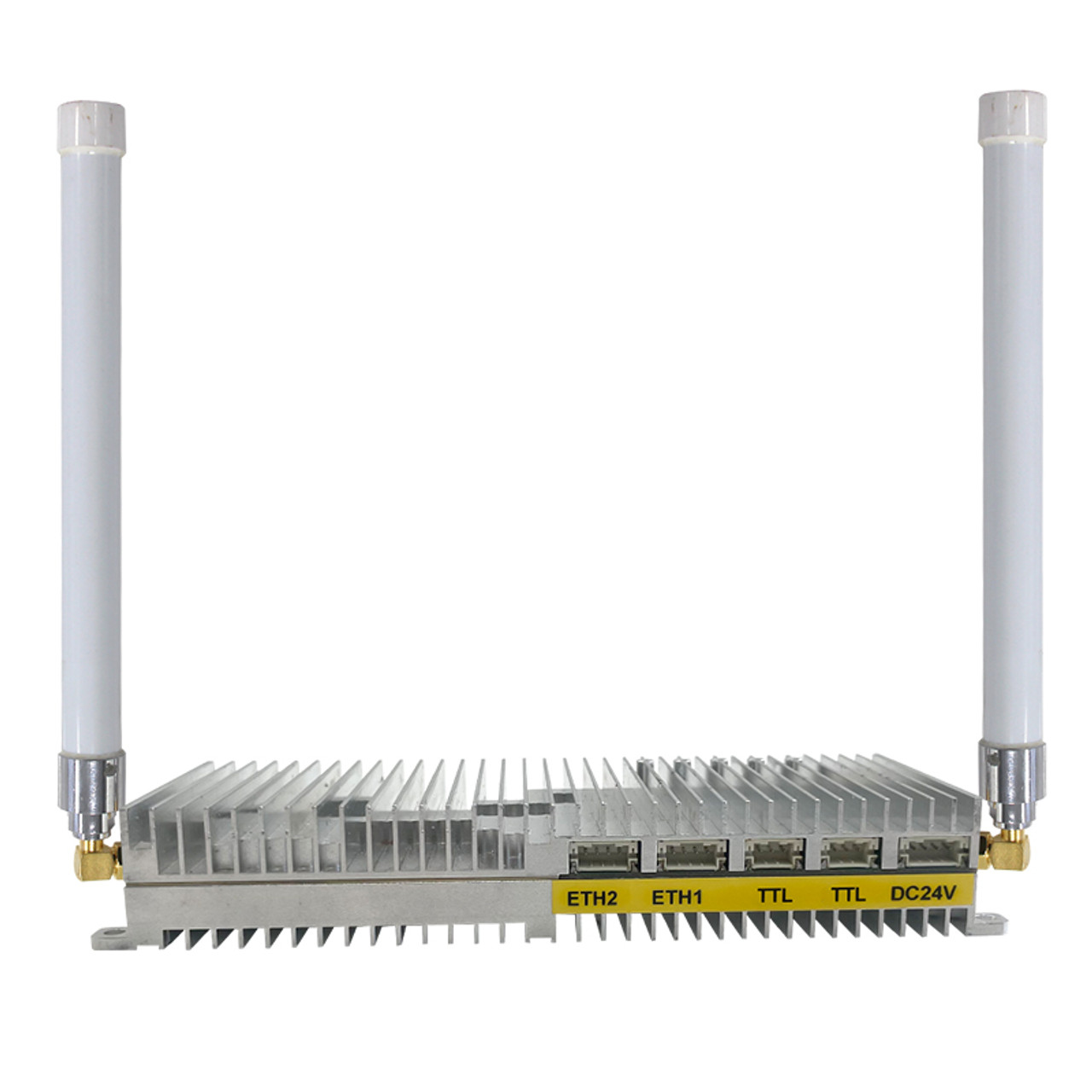

| Air unit | 2 x ETH, 2 x UART, 2 x SMA, 1 x Power Input |

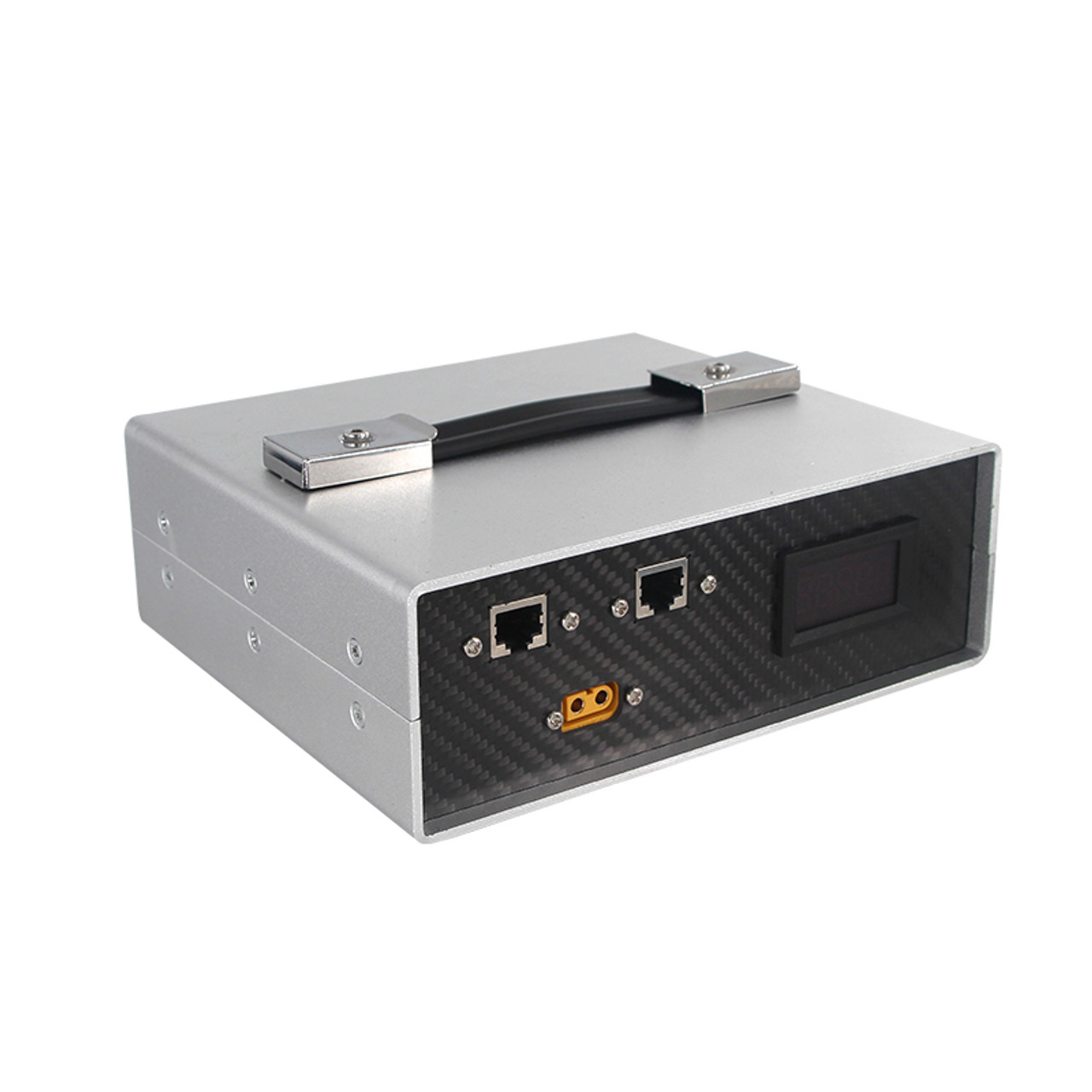

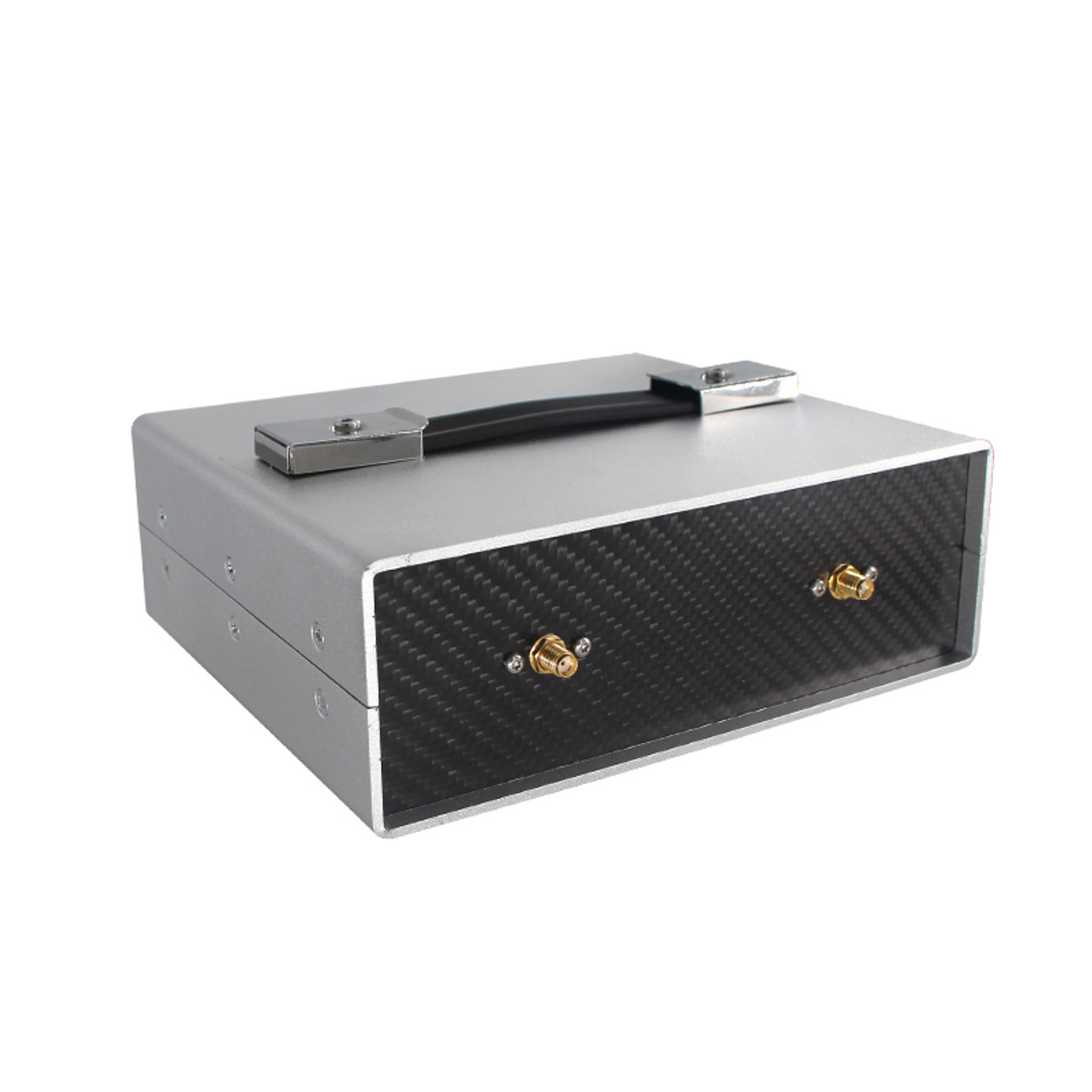

| Ground unit | 2 x USB2.0, 2 x SMA, 1 x Power Input |
| Antenna | |
| Air unit | 2 x SMA 2dBi (1.4GHz) |
| Ground unit | 2 x SMA 5dBi (1.4GHz) |
| Environment | |
| Storage temperature | -40℃~+85℃ |
| Working temperature | -20℃~+75℃ |

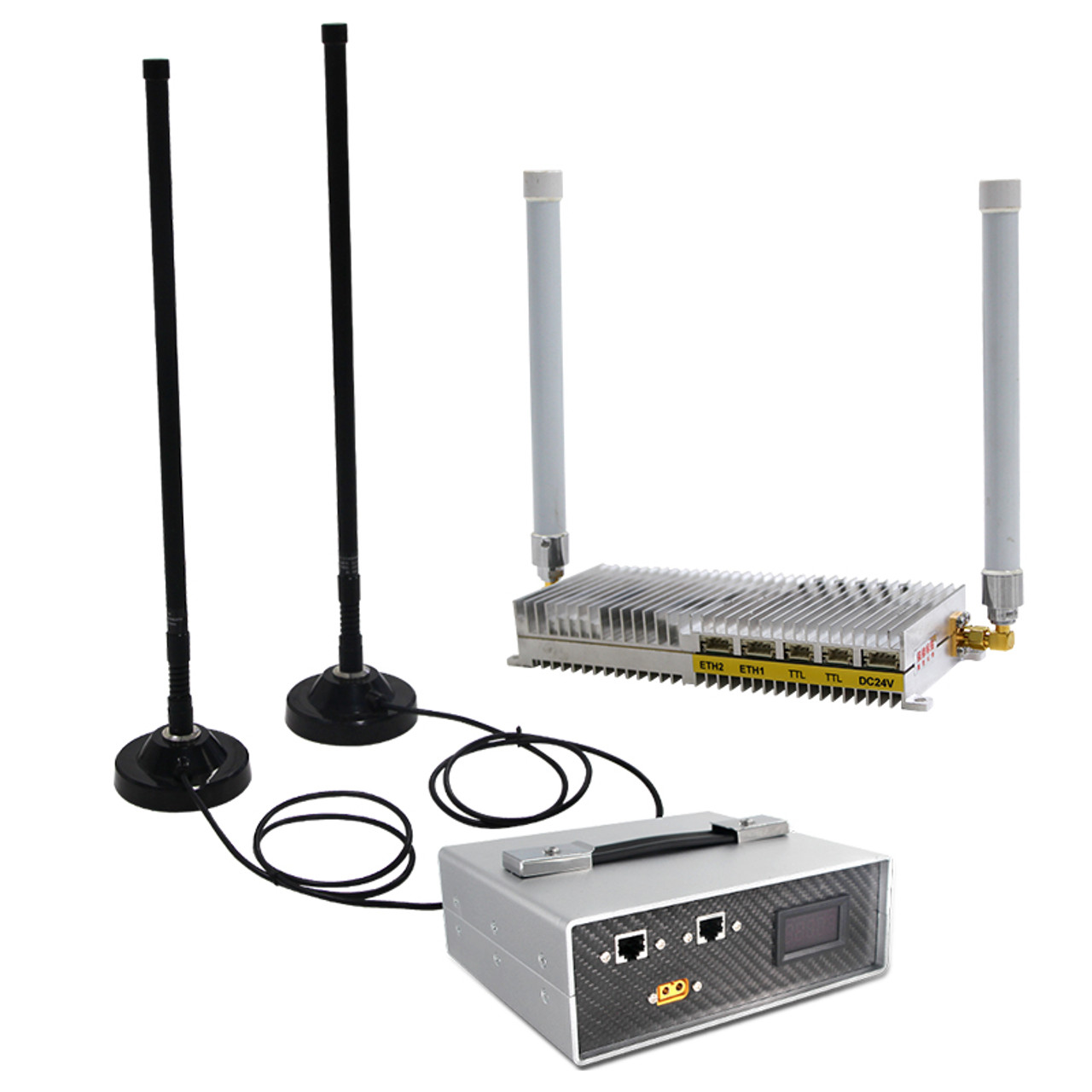

What is included
1 x Videopass-N60 air unit
1 x Videopass-N60 ground unit
2 x SMA Antenna
1 x Data cable
1 x Power cable
1 x USB cable
