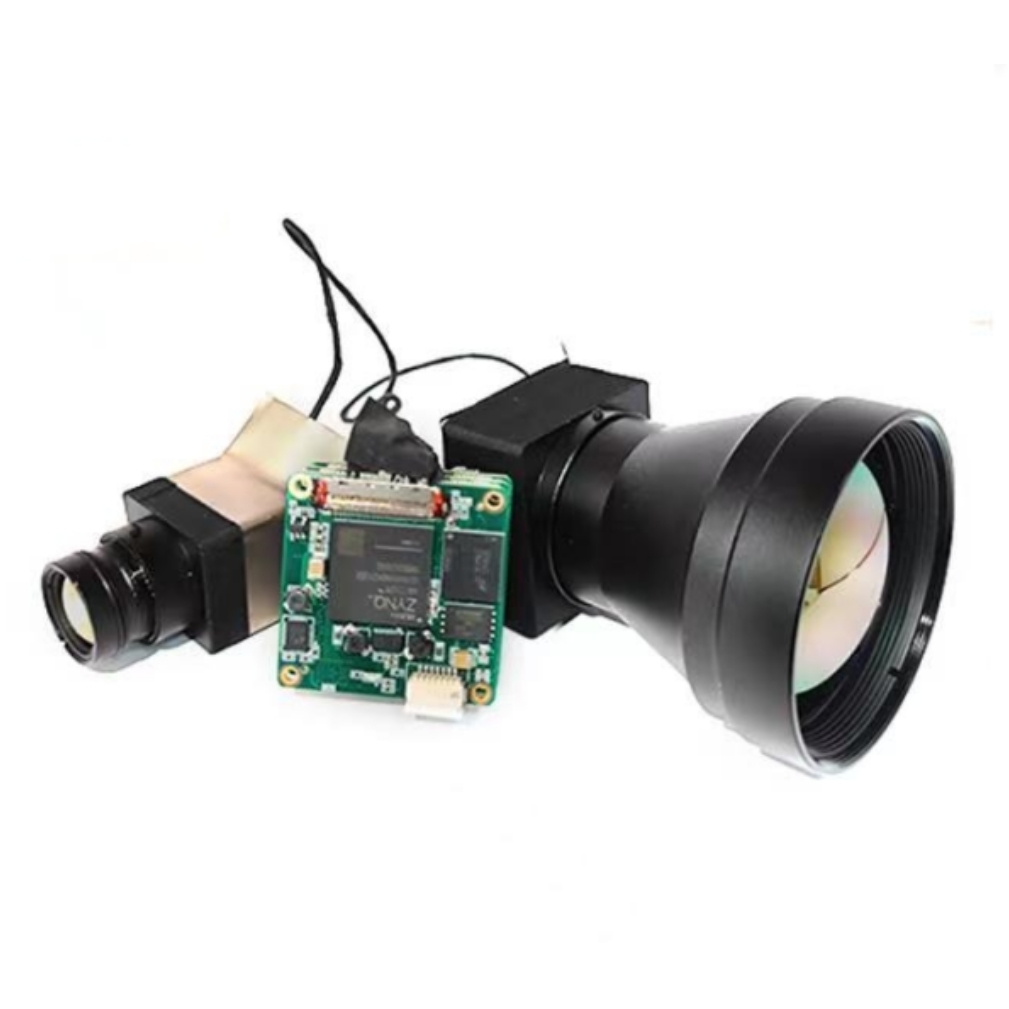

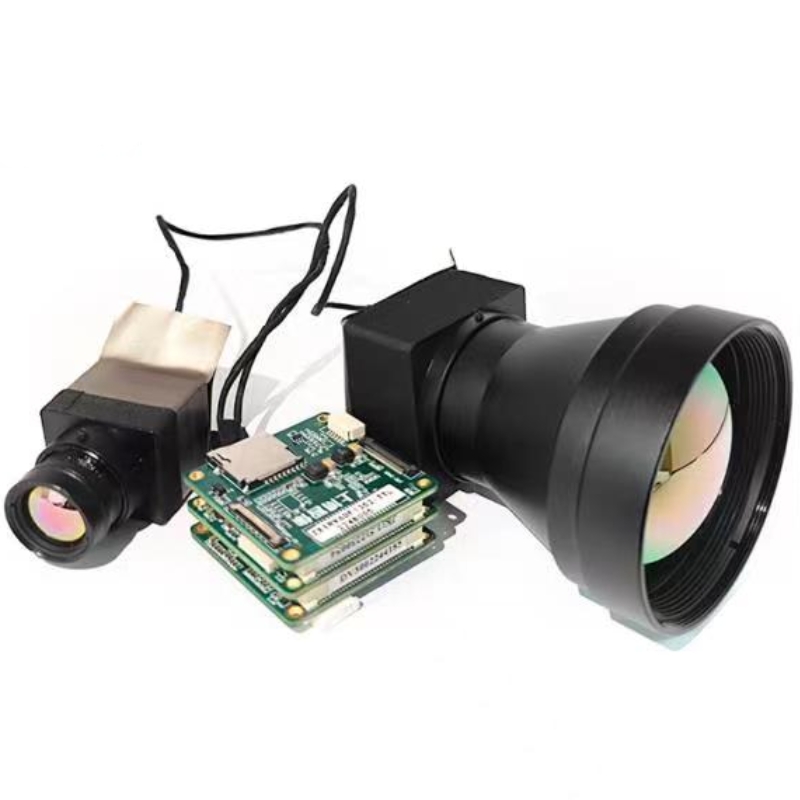

Description
Product highlights:
1. Integrated Video Tracking
2. High image quality and scene adaptability
3. No shutter (NUC) technology
4. On-line temperature measurement, false color display
5. Support for external input video (picture-in-picture)
6. OSD interface display
7. Custom character overlays
8. Rich communication interfaces
9. Small size, low power consumption
10.The two fields of view switch quickly
Parameters
| MODEL |
|
SV2K-DE |
| Imaging index |
Working format |
Un-cooled 8μm~14μm |
| Resolution |
640×512 |
| Size of pixel |
12μm |
| Emissivity correction |
Emissivity0.01~1 adjustable |
| NETD |
≤50mK（@25℃） |
| MRTD |
≤550mK（under characteristic frequency） |
| Color palette |
Black hot/white hot/pseudo color |
| Digital zoom |
2X、3X、4X |
| Temperature measurement |
Temperature bar with highest/lowest/center temperature spot |
| Measurement range |
0℃~120℃ |
| Tracking index |
Data refresh rate |
25Hz（IR）/ as Sony core（visible light） |
| Tracking velocity |
± 32 pixels / frame |
| Target size |
16×16～128×128 pixels |
| Environmental adaptation |
Working temperature |
-40℃～60℃ |
| Storage temperature |
-40℃～65℃ |
| Electrical interface |
Communication
interface |
TTL |
| Video Input |
LVDS |
| Video Output |
LVDS+Net |
| Video storage |
The SD card stores JPEG images/h. 264, H265, and MP4 Video (32 gigabytes from the factory, up to 128 gigabytes) |
| Power input |
DC 12V |
| Others |
Weight |
＜155g |
| Lens |
13mm&52mm |
| Power consumption |
≤4.6W (@25℃) |

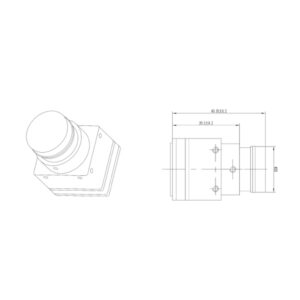

Dimensions
