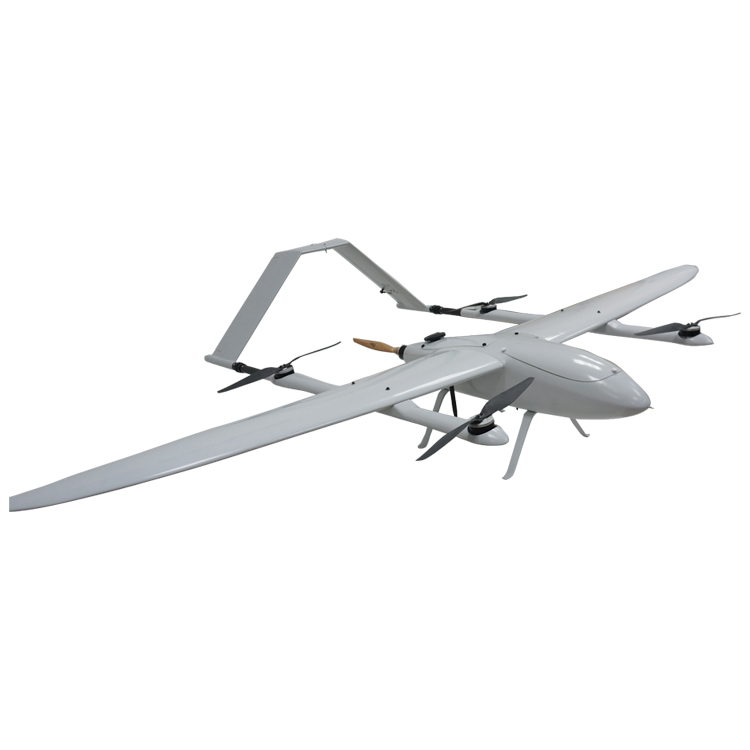

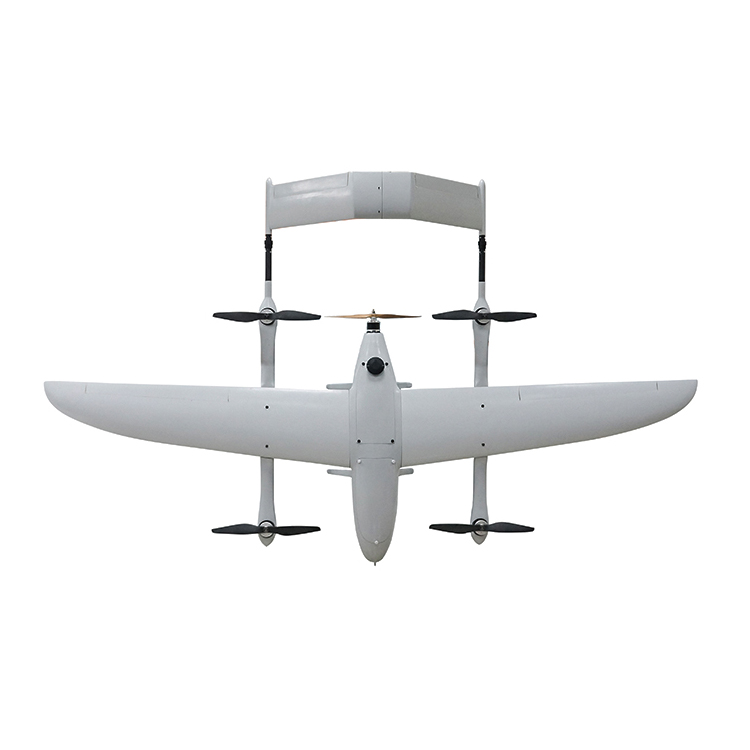

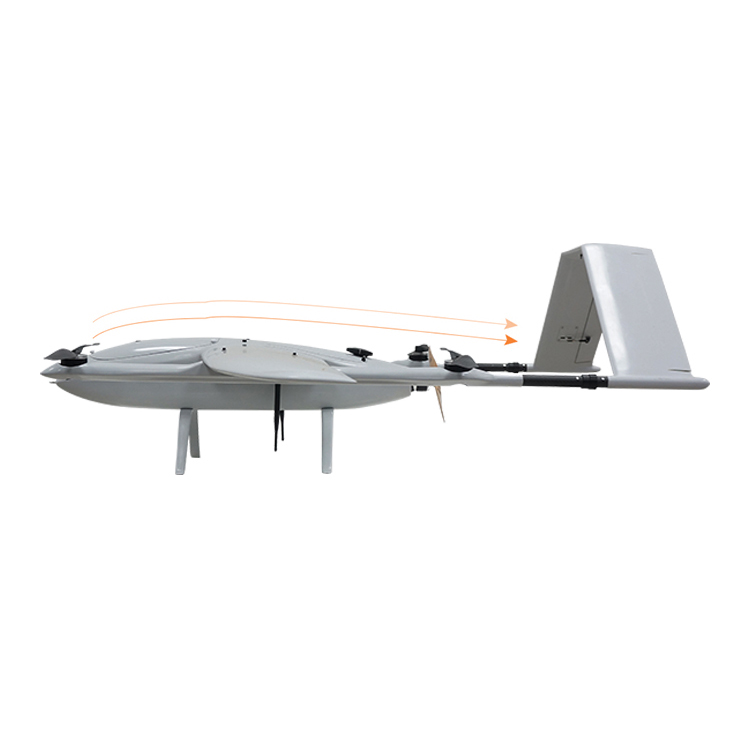

VTOL KIT 320 Fixed Wing Frame Electric Powered 2 Hours Endurance UAV Aerial Video Surveillance 3D Survey Mapping Drone Building

$4,600.00

Availability: In Stock
Compare
Category: Tag:

Description

VTOL KIT  VTOL, a vertical take-off and landing (VTOL) aircraft, is one that can hover, take off, and land vertically. This classification can include a variety of types of aircraft including fixed-wing aircraft as well as helicopters and other aircraft with powered rotors, such as cyclogyros/cyclocopters and tiltrotors. Some VTOL aircraft can operate in other modes as well, such as CTOL (conventional take-off and landing), STOL (short take-off and landing), and/or STOVL (short take-off and vertical landing). Others, such as some helicopters, can only operate by VTOL, due to the aircraft lacking landing gear that can handle horizontal motion. VTOL is a subset of V/STOL (vertical and/or short take-off and landing). Some lighter-than-air aircraft also qualify as VTOL aircraft, as they can hover, takeoff, and land with vertical approach/departure profiles. Electric and hybrid-electric vertical takeoff and landing aircraft eVTOL is a technology being used in the quest for fully autonomous passenger air vehicles (PAV). Besides the ubiquitous helicopter, there are currently two types of VTOL aircraft in military service: craft using a tiltrotor, such as the Bell Boeing V-22 Osprey, and another using directed jet thrust, such as the Harrier family and new F-35B Lightning II Joint strike Fighter (JSF). In the civilian sector currently only helicopters are in general use (some other types of commercial VTOL aircraft have been proposed and are under development as of 2017). Generally speaking, VTOL aircraft capable of STOVL use it wherever possible, since it typically significantly increases takeoff weight, range or payload compared to pure VTOL.

MTOW 20.3kg
Weight w/o battery and payload 9.69kg
Wingspan 3200 mm
Length 1,200 mm
Height 500 mm
Frame weight 3.2kg
Max payload(battery included) 10.61kg
Battery weight 7.53kg
Endurance(20.3kg take-off weight) 2.5 hours
Cruise speed 78-90km/h
Max speed 100km/h
Stall speed 57.6km/h



Recommended Set-up:

4 x T-motor MN605S 210KV
4 x Hobbywing 12S 80A ESC
2 x 2266 CF Propeller CW&CCW
1 x Hobbywing 12S 120A ESC
1 x Dualsky XM6360EA-22 KV190
1 x Wood 19*12 Propeller CW
4 x KST DS135MG Servo
1 x PX4 Air Speedometer
1 x Power Module For Pixhawk 2.1
1 x Pixhawk 2.1 Standard Set with Here 2 GNSS
1 x YR16S Radio Controller
2 x 6S 28000mAh NCR18650GA battery
2 x TATTU 6S 8000mAh 25C Lipo battery

NOTE: THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!
