A drone ground station consists of various components that are used to control and communicate with the drone during its flight operations. Here are some essential components commonly found in a drone ground station:

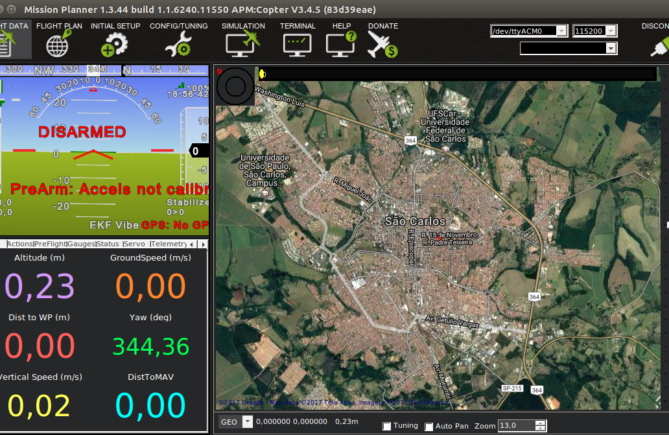

Ground Control Station (GCS): The GCS is the central hub for controlling and monitoring the drone. It is typically a software application running on a computer or a dedicated hardware device. The GCS allows the operator to plan flight paths, set waypoints, monitor telemetry data, and send commands to the drone.

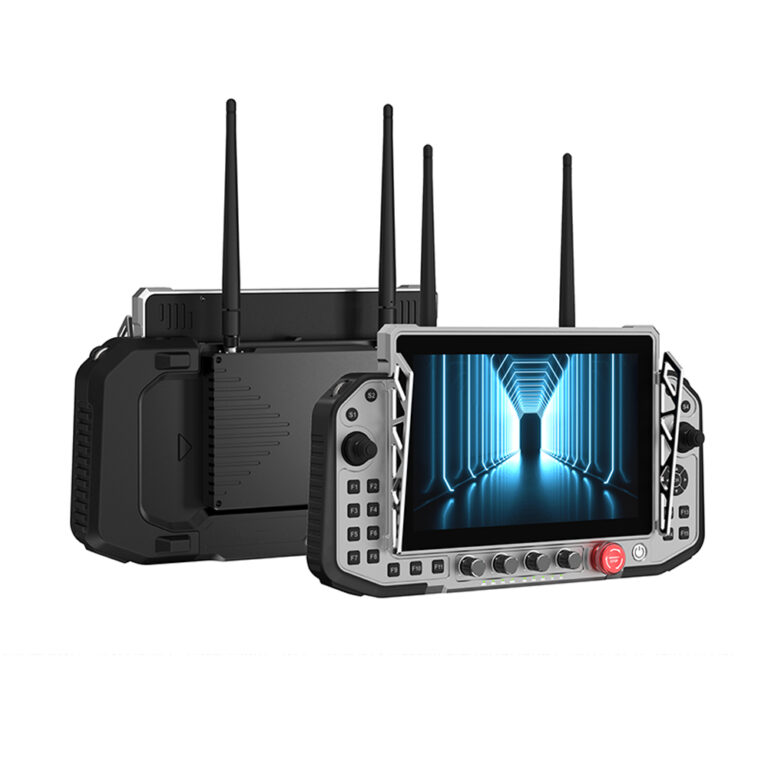

Transmitter: The transmitter, also known as a remote controller or radio controller, is used by the operator to manually control the drone’s flight. It typically consists of a handheld device with joysticks, switches, and buttons to send commands for flight control, such as throttle, pitch, roll, and yaw.
Telemetry System: The telemetry system provides real-time data communication between the drone and the ground station. It enables the operator to receive information about the drone’s flight status, including altitude, speed, battery voltage, GPS coordinates, and sensor readings. Telemetry systems can use various technologies like radio frequency (RF), Wi-Fi, or cellular networks to transmit data.
Video Downlink System: A video downlink system allows the operator to receive a live video feed from the drone’s onboard camera. It usually consists of a wireless video transmitter on the drone and a receiver connected to a display device, such as a monitor or goggles, at the ground station. This provides visual feedback to the operator and aids in controlling the drone and capturing aerial footage.
Antennas: Antennas are used to establish communication links between the drone and the ground station. The type and configuration of antennas may vary depending on the range and specific requirements of the drone system. Some common antenna types include omni-directional antennas for general coverage and directional antennas for long-range or specific point-to-point communication.
Power Supply: A stable and reliable power supply is necessary to run the ground station components. This may include AC power outlets for the computer, charger units for the transmitter batteries, and power sources for other devices like video receivers or displays.
Computing Hardware: The ground station typically requires a computer or a computing device capable of running the GCS software. This can be a laptop, desktop computer, or even a specialized ground station console with built-in computing capabilities.
Optional Accessories: Depending on the specific needs and requirements, additional accessories may be added to the ground station setup. These can include external displays, control panels, joystick extensions, signal amplifiers, and various specialized tools for specific drone applications.
It’s important to note that the components listed above are general and may vary based on the type of drone system, its purpose, and the specific requirements of the operator.
